Aluminum Profile CNC Processing Center With 16 pcs Carousel ATC
1. Features
1.1 This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry,it is also suitable for processing milling,chamfering and other procedure.
1.2 Adopting high-power closed loop spindle servo motor,it was directly connected with the Taiwan high-precision mechanical spindle.
1.3 Using the latest Taiwan 10.4 inch display screen,21 MA SYNTEC servo control system.After power outages,it can continue processing when have electric power .This machine have professional CAM processing software.
1.4 U-sing the disc type blades storage,16 blades capacity,only need 3 seconds for changing blade,greatly improved the efficiency of changing blades.
1.5 Adopting famous high-precision ball screw,rail and rack.
1.6 Double position design,putting on and taking down profile separately without stop,have much higher processing efficiency.
1.7 Centralization lubrication adopt intermittent supply system,blades adopt system control spray pump cooling device.
1.8 Equipped automatic memory on blades device system.
1.9 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
2.0 The main components adopt steel structure and they are all through aging treatment.
2. Technical Specification
2.1 |
Power supply |
380v 50Hz |
2.2 |
Working pressure |
0.6~0.8MPa |
2.3 |
X-axis journey |
6000mm |
2.4 |
Y-axis journey |
450mm |
2.5 |
Z-axis journey |
500mm |
2.6 |
Cutter storage |
16 blades |
2.7 |
Type of clamping |
pneumatic clamp (eight sets) |
2.8 |
Overall dimension |
11000*3000*2800mm |
2.9 |
Weight |
6200kg |
3.Detail Photos:

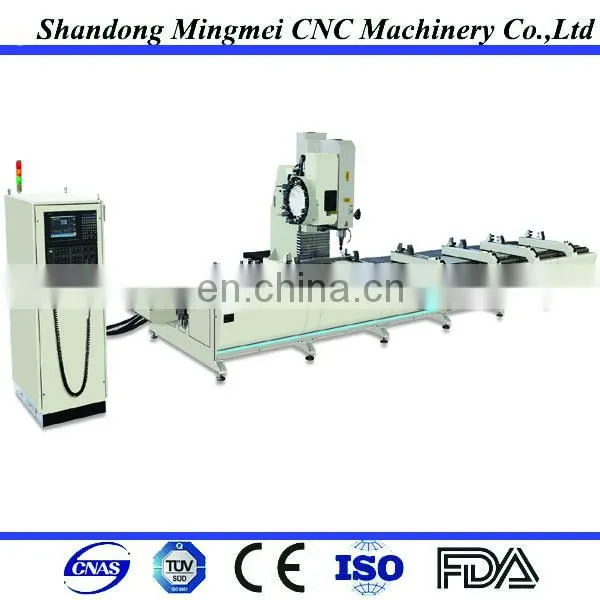

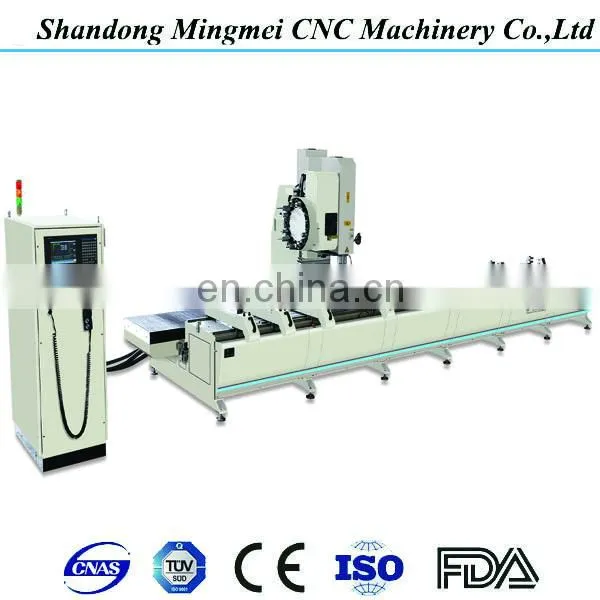

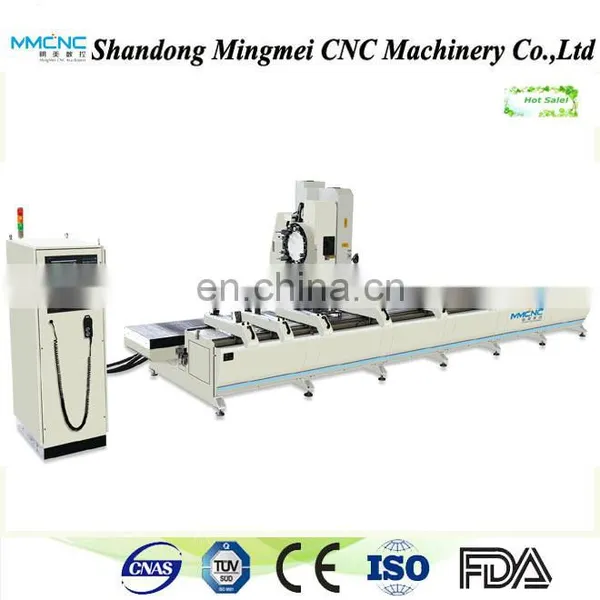

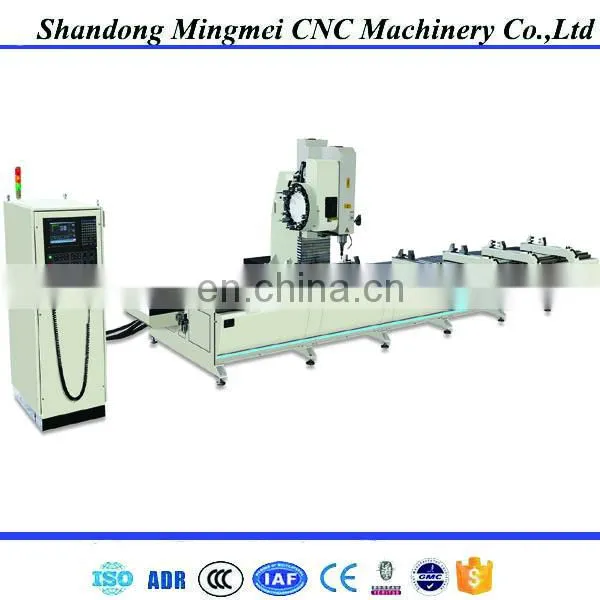

3.1 Facade of whole set machine
3.2 Taiwan Syntec 11MA Control System
3.3 Cabinet inside:
Japan Yaskawa servo motors and drivers; France Schneider electrical parts
3.4 Clampings 3.5 Mist Spray and Automatic Lubrication System
3.6 Carousel Automatic Tool Change 16 Pcs
4.Shandong Mingmei At Exhibition:
These machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.
1.When we send machine to you ,we would send quick-wear part together to ensure you can
use the machine for long time.
2.We provide "7/24" style after service, one week 7 days, one day 24 hours, we will reply
your emails within 24 hours, commonly we will reply customer's email within 1 hour,small
problem we will solve on email, large problem we send engineer to your factory.
MMCNC was found in 1995,which is a modern private enterprise specialized in technology
development,machinery manufacture and product sales.Company cover an area of 70000
square meters and 200 staffs.
MMCNC machine include Processing machine for making aluminum PVC window and door as
well as curtain wall, such as---Double head Cutting Saw;Corner Crimping Machine;End miller;
Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.
which these machine have got CE,ECM,EEC authorization .and it has won good market
reputation.
Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
1. Q: Are you a factory or trading company?
A: We are a factory.We are china one of famous factory for Aluminum /PVC Window Door Making Machine, Insulating CNC Router, CNC milling and Drilling Machine Center for Aluminum and Curtain Wall. Welcome to visit our web:
2. Q: which is the nearest international airport and domestic airport ? Can I visit there?
A: Yes , you can. Jinan airport is the nearest domestic air port in Shandong province.
3. Q: How does your factory do regarding quality control? A:We have strict control in testing of raw material, production process and final process.Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
A: Yes, as we usually do.
6.When can we arrange shipment?
A:We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.
7.What's your payment methods?
A: L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union
For futher info, welcome contact with us!
