1.Main Features for single-axis copy routing drilling machine

LXF-235x100 Single-head copy-routing drilling machine

1.1  The machine is used for all kinds of holes, aluminum doors and windows of the tenon, profiling water slots etc.

1.2  The copying template and the auxiliary positioning two profiling method.

1.3  Using the pedal switch to control the compaction cylinder, safe and reliable.

1.4  Compact structure, small size.

2.Specifications for Single head copy-router drilling machine

Model

LXF-235x100

LXF2-290x100/LXF-290x100

Input Power

1.1kw

2x0.75Kw

Power Supply

380V/50Hz

380V/50Hz

Air Pressure

0.6-0.8MPa

0.5-0.8MPa

Cutter Diameter

Φ5 Φ8 mm

Φ5 Φ8 mm

Copy-routing range

235x100mm

290x100mm

Overall dimension

870 x 700 x 1500mm

1000x1130x1600mm

Weight

about 161kg

about 280kg

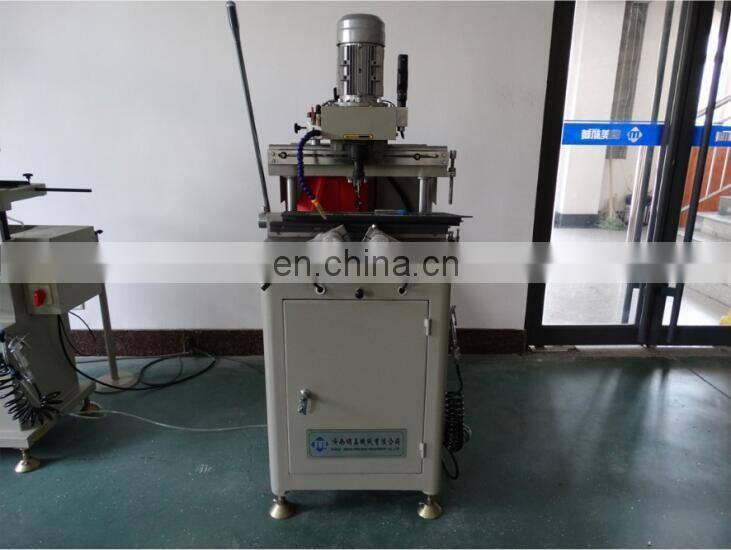

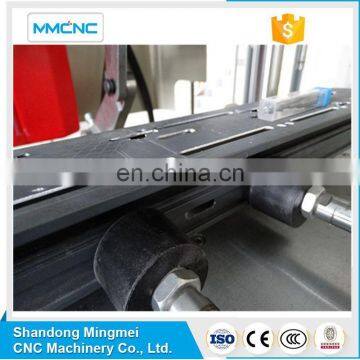

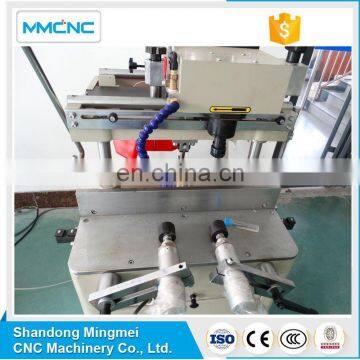

3.Detailed Images of aluminium copy router machine

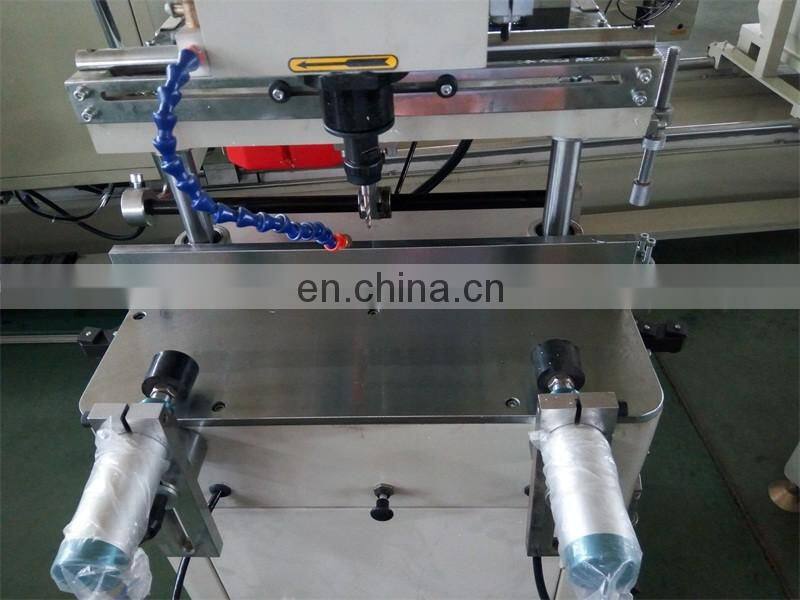

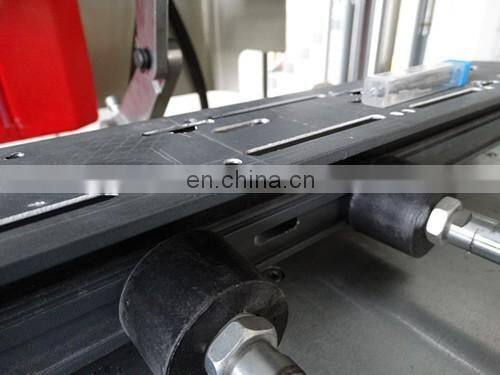

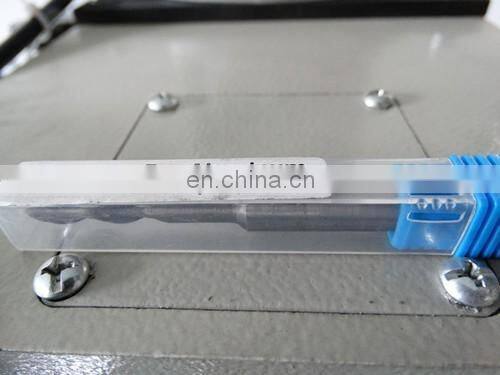

-----Details

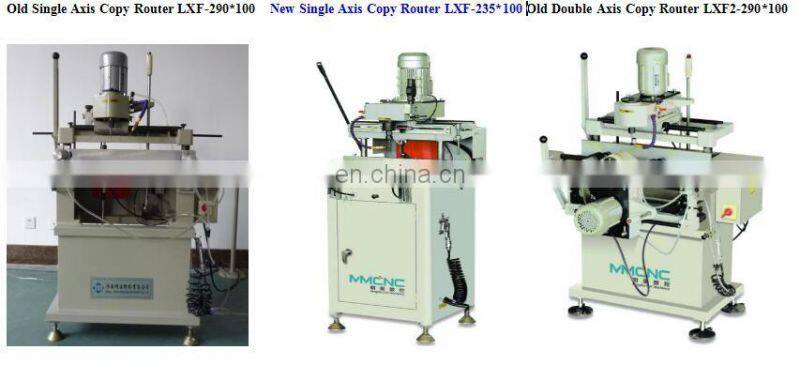

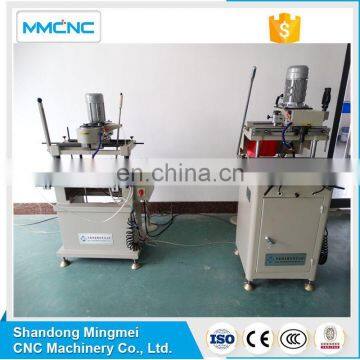

4.We have new and old type Copy Router

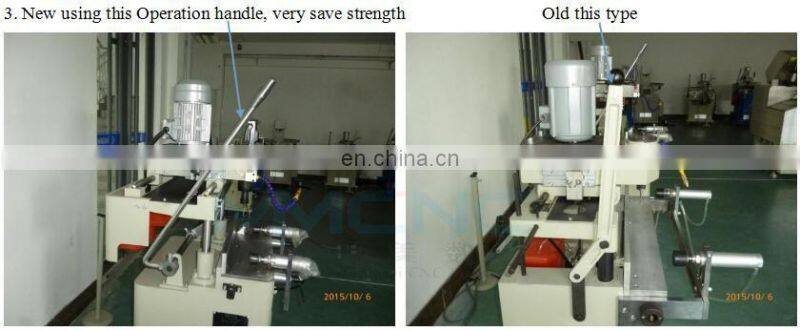

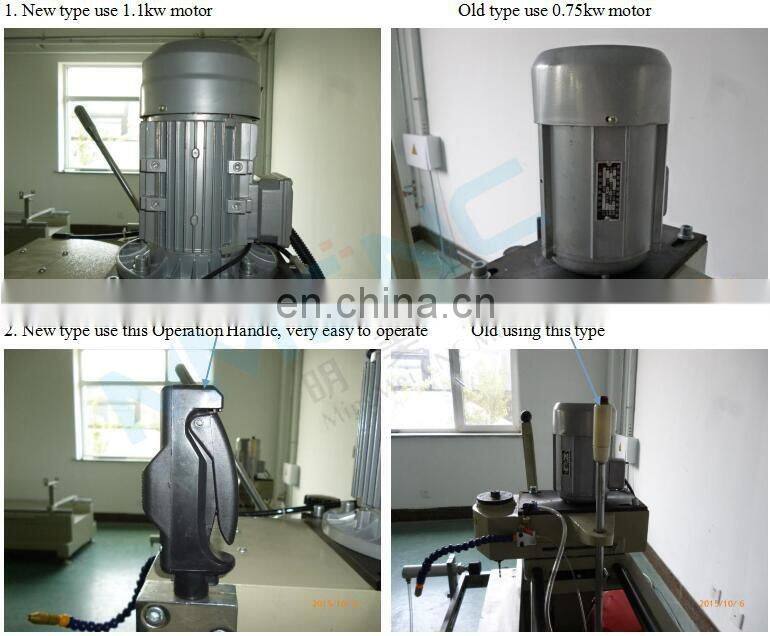

------Let us show the difference between new 235*100 and old 290*100

Shandong Mingmei CNC Machinery Co., Ltd

MMCNC was found in 1995,which is a modern private enterprise specialized in technology

development,machinery manufacture and product sales.Company cover an area of 70000

square meters and 200 staffs.

MMCNC machine include Processing machine for making aluminum PVC window and door as well

as curtain wall, such as---

Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got

CE,ECM,EEC authorization .and it has won good market reputation.

Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!
