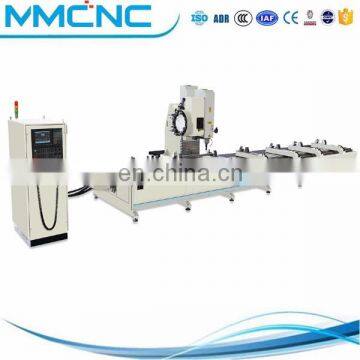

CNC Heavy Duty Gantry Type 4-axis Working Center for Aluminum Profile
JGZX4-CNC-6000
The machine is designed for Processing launder,taping,milling and monting hole,locking hole and shaped hole,and it has a saw blade,can be used for cutting the angle of the profile
Equipment Features |
1.1 The machine is designed for processing launder,taping,milling and mounting hole,locking and other slots for diversified curtain walls and aluminum doors and windows.
1.2 It adopts high-speed electric sprincipal axis,which is imported from Italy.It is extremely efficient and can swing in +90°
1.3 It adopts high-quality computer control system, which is used in industry area specially. The system has favorable user manipulate interface program in graphics mode and processing interface . This processing interface can show related dates directly.
1.4 It adopts high-quality servo-motor, roller linear guide pair to insure the machine runs with high precision
1.5 The cutter storage supply 8 cutter positions, the cutter can change quickly and automatically.
1.6 With half-close safeguard device to insure the personal safely of the operator.
1.7 The position of clamping device can put freely.
Technical Parameter |
Power Supply | 380V/50Hz |
Air Pressure | 0.5-0.8Mpa |
Processing Wide | X/Y/X/B 800/5500/400/+ - 90° |
Spindle Power | 9KW |
Spindle Speed | 24000rpm |
The feeding speed | X/Y/Z 50/30/20 m/min |
B | 300r/min |
Servo Motor(Japan YASKAWA) | 1.3KW/2X13KW/1.3KW/0.85KW |
Tool Magazine 8 station Umbrella type | Magazine could add saw blade(ISO 30 shank) |
