3 axis CNC Processing center deep hole drilling machine
- 20 Set / Sets per Month
- qingdao
- T/T Credit Card
You May Like
-
hot sale iron window grill making machine
-
hot sale welding machine for pvc window frame used
-
hot sale used pvc window manufacturing machine
-
window & door rubber sealing strips making machine manufacturing in mingmei factory
-
3 axis CNC Processing center tube well drilling machine
-
3 axis CNC Processing center manual paper drilling machine
Product Details
Brand Name | Shandong Mingmei | Place of Origin | Shandong, China | |
Model Number | LCJG3-CNC-6000 | Material | Steel |
iron frame ,plywood case It depends on customer
Product Description
3-axis CNC Processing Center for Aluminum profile
LCJG3-CNC-600
1. Feature
1.1 This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry,it is also suitable for processing milling,chamfering,engraving plane surface and other procedure.
1.2 Main spindle adopt air-cooling electric main axis from Italy,have the function of high precision,high safety and high reliable.
1.3 Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming software.It can transform processing code automatically,have the function of easy operation,high efficiency and lower labor intensity.
1.4 Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the precision of whole machine.
1.5 Inside blades storage can hold 6 sets blades,the handle is approved ISO 30 standards,it is very safety and reliable.
1.6 Adopt manual pump oil supply system,blades adopt system control system control spray cooling device.
1.7 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
1.8 The main components adopts steel structure and they are all through aging treatment.
2. Specification
2.1 | Power supply | 380v 50Hz |
2.2 | Air pressure | 0.5~0.8MPa |
2.3 | Total power | 12kw |
2.4 | Max rotary speed | 24000/min |
2.5 | X-axis speed | 6000mm |
2.6 | Y-axis speed | 500mm |
2.7 | Z-axis speed | 350mm |
2.8 | Y and Z axis speed | 1500mm/min |
2.9 | Overall dimension | 7100 x 1600 x 2200mm |
3.0 | Weight about | 360kg |
3.Picture of machine

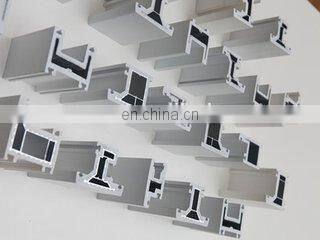

4.Sample
After sales service:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system
Questions and answer:
♥Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
♥Q2: Do you have the manual of machine.
Yes,we have
♥Q3.If we donot know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if
you are busy ,we will have the special engineer to your country,but you need to bear some fee,like
tickets and hotel and meal.
♥Q4.How about your after-sales service?
we offer you 24 hours service phone,skype or MSN.
♥Q5.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
