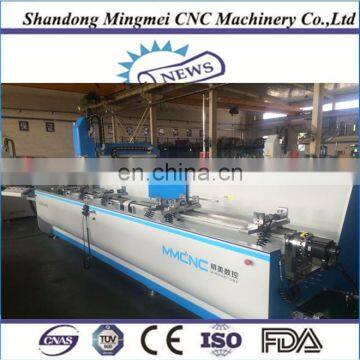

3-axis round hole/keyhole cnc routing aluminum profile machining center 6000mm machines making machines
- 20 Set / Sets per Month
- qingdao
- T/T Credit Card
You May Like
-
cnc machine price in China
-
mmcnc cnc drilling mashines and equipments
-
aluminum curtain wall machine manufacturing
-
radial drilling machine manufacturing in mingmei factory
-
Curtain wall machine window rubber weather strip designed for processing round holes
-
Shandong MMCNC Aluminum Curtain Wall and Window Door drilling machine
Product Details
| Brand Name | MMCNC Maxicut | Place of Origin | Shandong, China | |
| Model Number | LCJG3-CNC-6000/LCJG3+1-cnc -3000 | Certification | CE ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 2360KG | |
| Dimension(L*W*H) | 7100X1600X2200MM | Voltage | 380V/50Hz | |
| Condition | New | Power(W) | 12KW | |
| CNC or Not | CNC | Drilling Speed | 2840rpm |
iron frame ,plywood case It depends on customer
Product Description

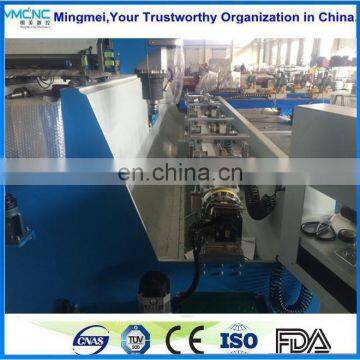

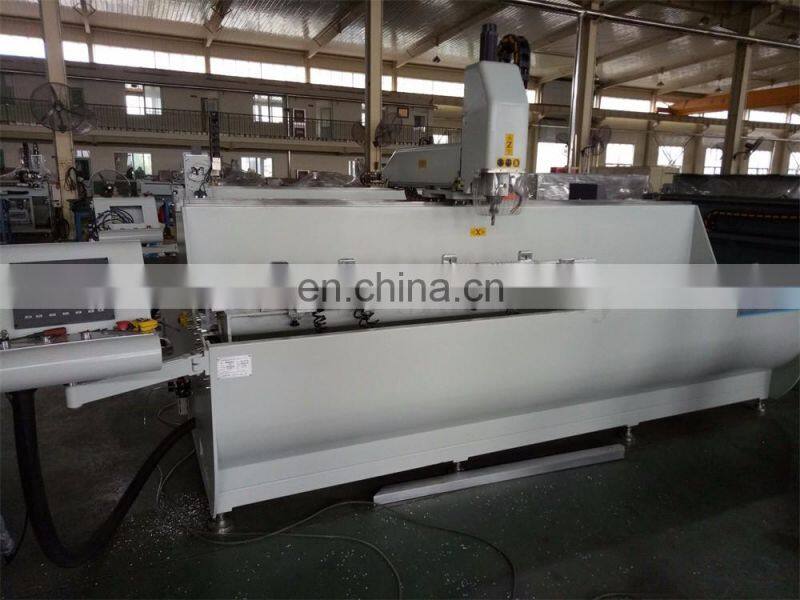

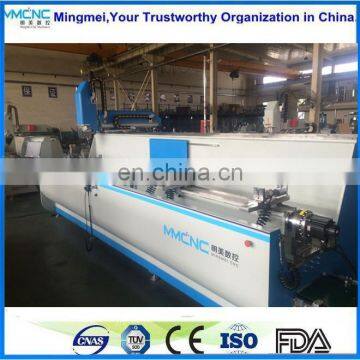

3-axis CNC Processing Center Machine for Aluminum Profile
Video on Youtobe
https://youtu.be/xmfPmQAMIG8
Features of 3 axis cnc processing center for aluminium profile:
1.1 Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum alloy profiles.
1.2 System adopts Taiwan Syntec CNC controller.
1.3 Adopting electric spindle; high precision, high safety and reliability
1.4 X axis adopts high-precision helical gear and rack; Y and Z axis adopt high-precision ball screw transmission; steady transmission and high precision.
1.5 By using programming software to automatically transform and process G code; easy operation; high efficiency and low labor intensity.
1.6 1200mm/3000mm Workbench can turn 180°, -90°~0 °~+90°; It can realize three-sides processing by clamping one time; it can process deep and special-shaped holes through workbench; high efficiency and precision.
Please add my whatsapp/wechat +8618766158398 or send email to mag at for possible deal,thank you!

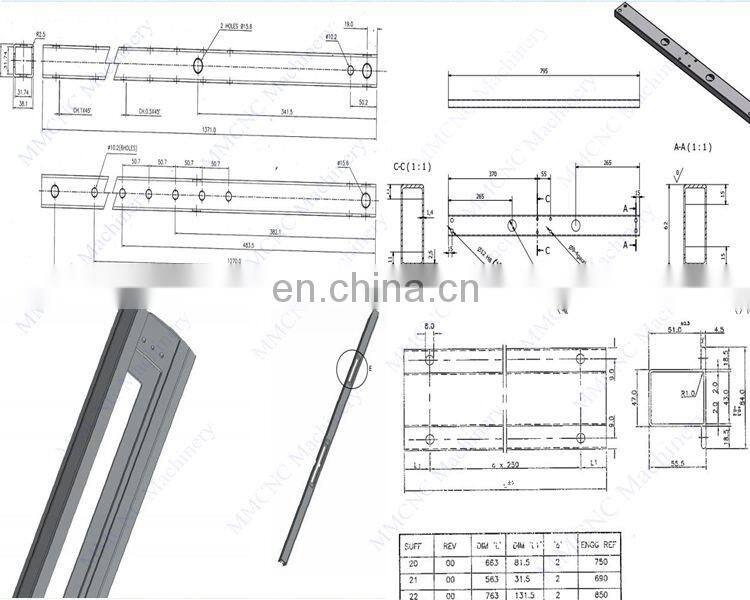

1. Some aluminum profile drawings of our customer for your reference.

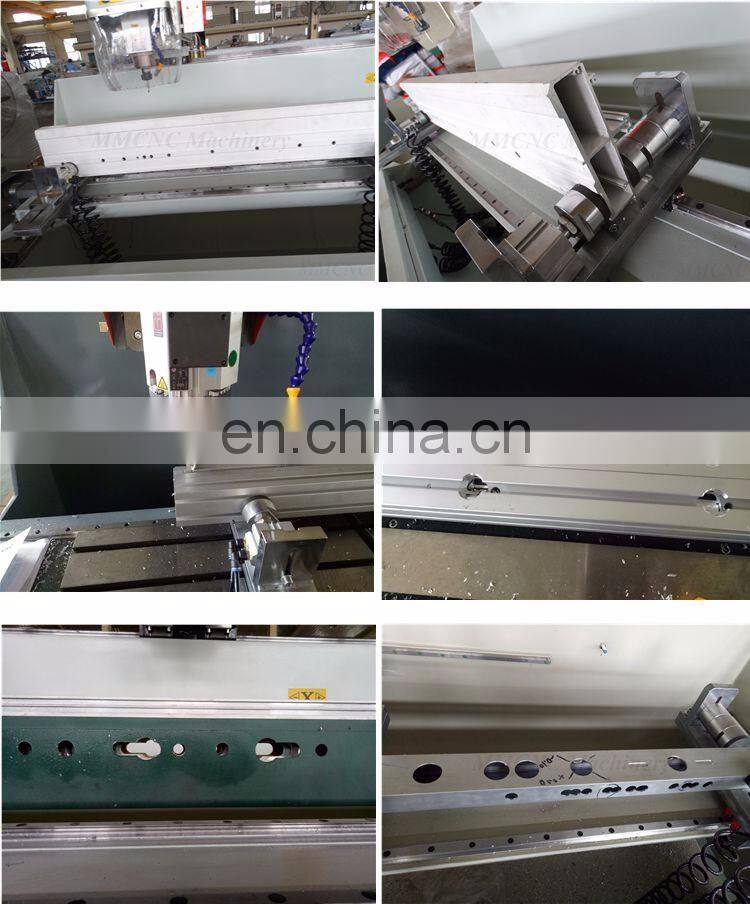

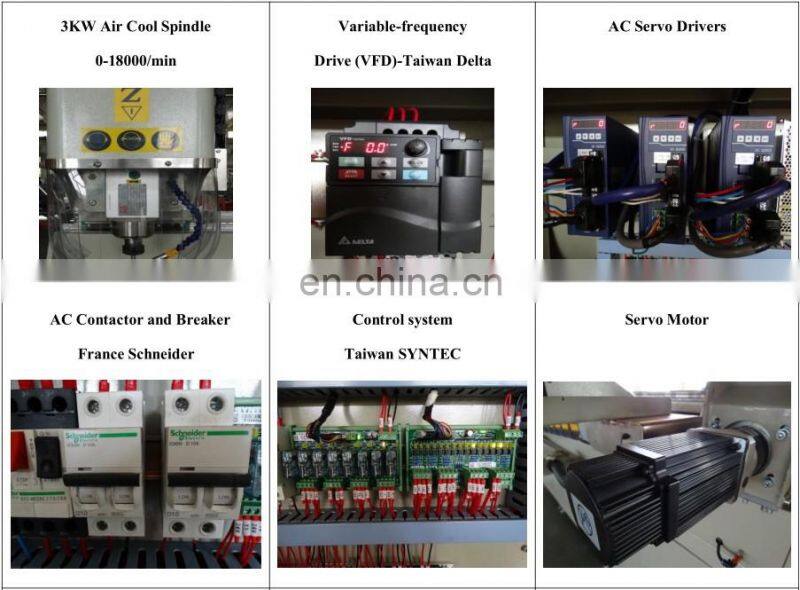

2. Detail Parts of Aluminium Profile CNC Milling Machine

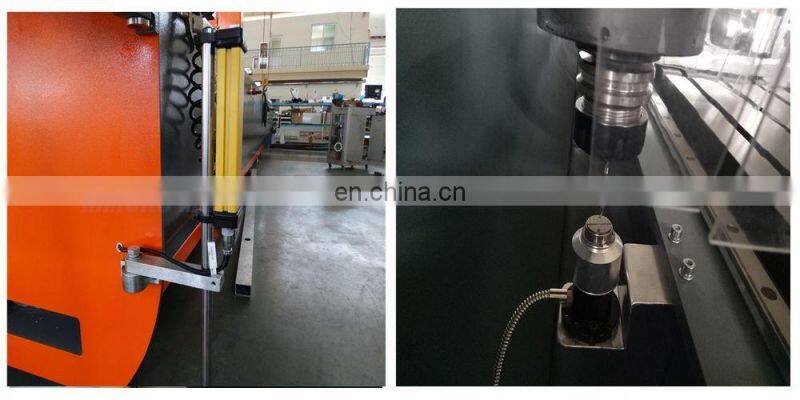

3. The yellow one is safety light curtain Tool instrument is optional

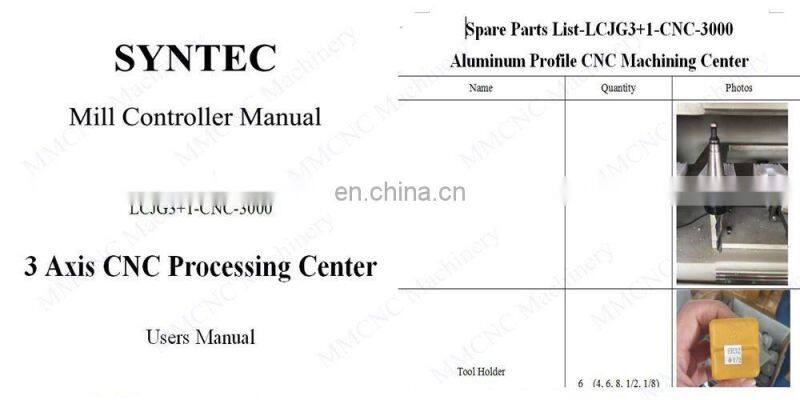

4. Every CNC Machine will have a English Operation Manual as well as video and some Spare Partsfor you
5.Testing Samples of Aluminiun CNC Drilling Milling Machine
Shandong MINGMEI CNC: Since 1995, trustworthy top brand!
Homepage> Products list> Company information> Transaction history>
♣1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
♣2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
♣3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
♣4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine

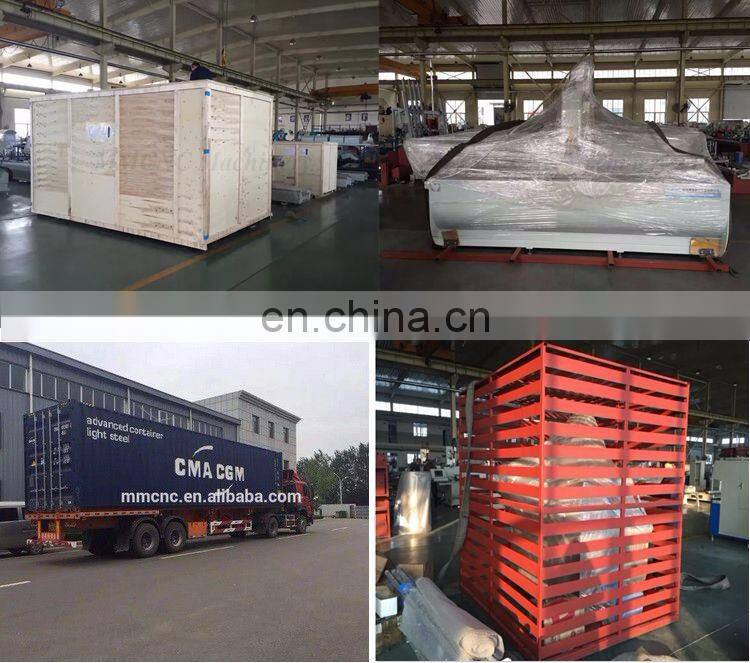

Packaging & Shipping of Vertical Aluminum CNC Machining Center
Specifications of Our CNC Drilling Milling Machine |
SPECIFICATIONS OF ALUMINUM MILLING MACHINE |
Shandong Mingmei Aluminium CNC machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window door and curtain wall industry,it is also suitable for processing milling charfering,engarving plane surface and other procedure. MINGMEI focus on the quality of CNC machine and details to creating the value to customers. |
Remark | The specification just for your reference, we can bulid cnc drilling machine as your specific requirements | ||
Model | SKX-CNC-1200/3000 | LCJG3+1-CNC-3000 | LCJG3-CNC-6000 |
| Air Pressure | 0.5~0.6MPa | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Power supply | 380v/50hz | 380v/50hz | 380v/50hz |
| Total Power | 6Kw | 12Kw | 12Kw |
| Spindle | China 3Kw air-cooling | Italy HSD 9Kw/7.5Kw | Italy HSD 9Kw/7.5Kw |
| Max rotary speed | 18000/mim | 18000/min | 24000/min |
| X-axis Journey | 1200mm/3000mm | 3000mm | 6000mm |
| Y-axis Journey | 300mm | 500mm | 500mm |
| Z-axis Journey | 280mm | 350mm | 350mm |
| X axis Speed | 50000mm/min | 50000mm/min | 50000mm/min |
| Y and Z Speed | 15000mm/min | 15000mm/min | 15000mm/min |
| Cutter handle: | ER25xDia.8 | model ISO 30 ER32 | model ISO 30 ER32 |
| Cutter magazine | None | 6 cutter positions | 6 cutter positions |
| Processing range | 100x140mm | 200x200 | 200x200 |
| Overall dimension | 2200x1500x1950mm | 4180x1600x2200mm | 7100 x 1600 x 2200mm |
| Weight | about 610kg | about 1400kg | about 2360kg |
| Customization | Customized cnc machine Available , this specification just for you reference | ||
Does your country attend any exhibition each year?
-Yes, we attend shanghai,guangzhou,beijing exhibitions each year..
Below is our 5 Axis CNC Router at Shanghai 2016 alu exhibition:
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
