Window Profile Making Machine Drilling Machinery Aluminium Profile Cutting Machines
- Qingdao
- T/T Credit Card
You May Like
-
China Small Vertical End Milling Machine for Metal
-
Malaysia Aluminium Copy Router Machine for Aluminium Window
-
LMB-120 Window Single Head Aluminum Corner Joint Hydraulic Machine
-
South Africa Hot Sale New LXF-235X100 Copy Router Machine for Aluminum
-
Shandong Mingmei CNC Aluminum Keyhole Milling Machine for Window Door
-
MMCNC Gantry Type 4 Aixs Machining Center With a Saw Blade
Product Details
| Brand Name | MMCNC | Place of Origin | Shandong, China | |
| Model Number | LCJG3-CNC-3000 | Type | Vertical | |
| Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12 Months | Weight | 1400 | |
| Dimension(L*W*H) | 4180x1600x2200mm | Voltage | 380V/50Hz | |
| Condition | New | Power(W) | 12KW |
Plastic film, wooden box or as customer's request for cnc machining california for machining of aluminium alloys.
Product Description
window door UPVC cnc machinery for machining of aluminium alloys
1. Features of 3 axis cnc processing centre for aluminium profile:
1.1 This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,windowdoor and curtain wall industry,it is also suitable for processing milling,chamfering,engraving plane surface and other procedure.
1.2 Main spindle adopt Italy HSD
9Kw,have the function of high precision,high safety and high reliable.
1.3 Adopt Taiwan SYNTEC CNC control system.
1.4 Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the precision of whole machine.
1.5 Inside blades storage can hold 6 sets blades,the handle is approved ISO 30 standards,it is very safety and reliable.
1.6 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
1.7 The main components adopts steel structure and they are all through aging treatment.

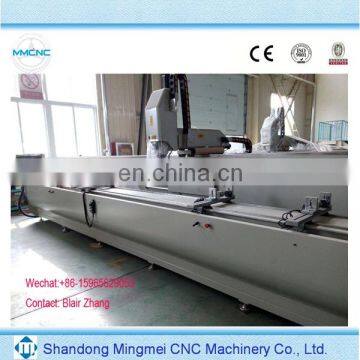

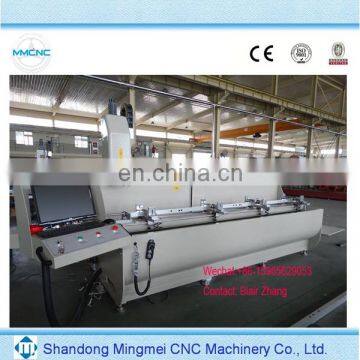

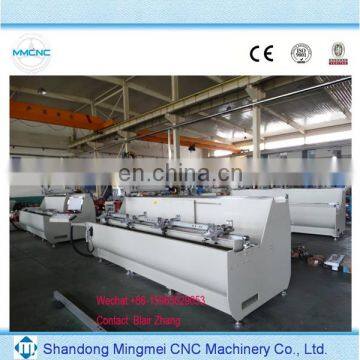

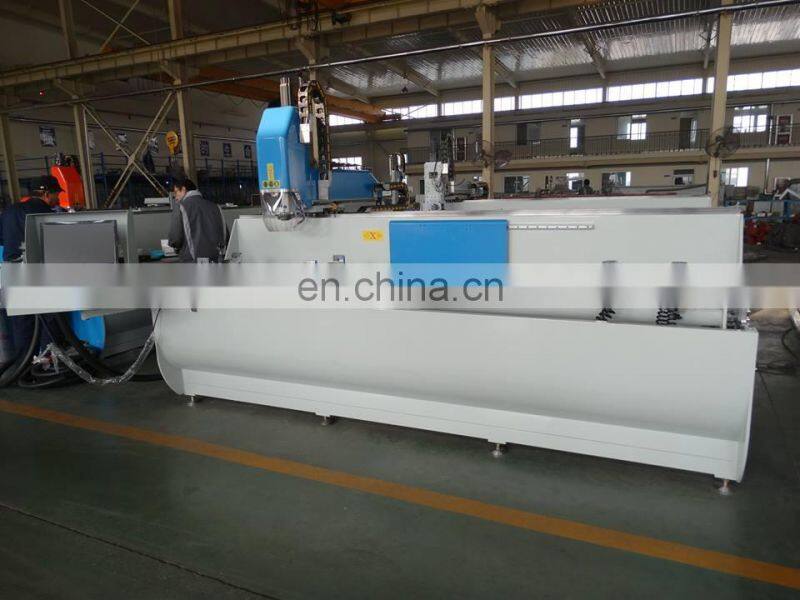

Real photo of 3 axis Aluminium CNC Machining Center

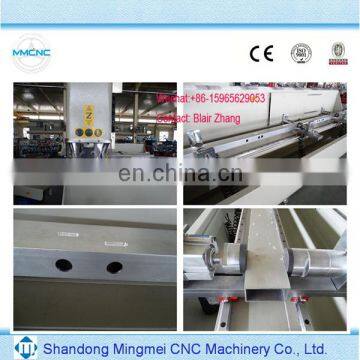

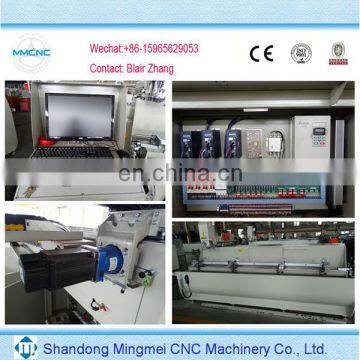

2. Details parts of Aluminum Profile CNC Processing Center
3.Some aluminum profile drawings of our customer for your reference.
PLS pay more attention, because we have different types of machine, so please send us your aluminum profile drawings to analyze and confirm before the order, thanks!
4.Packing & Shipping of Aluminum CNC Machining for drilling milling holes
5.SPECIFICATIONS OF ALUMINUM MILLING MACHINE
Model | SKX-CNC-1200/3000 | LCJG3+1-CNC-3000 | LCJG3-CNC-6000 |
| Air Pressure | 0.5~0.6MPa | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Power supply | 380v/50hz | 380v/50hz | 380v/50hz |
| Total Power | 6Kw | 12Kw | 12Kw |
| Spindle | China brand 3Kw | Italy HSD 9Kw/ | Italy HSD 9Kw |
| Max rotary speed | 18000/mim | 24000/min | 24000/min |
| X-axis Journey | 1200mm/3000mm | 3000mm | 6000mm |
| Y-axis Journey | 300mm | 500mm | 500mm |
| Z-axis Journey | 280mm | 350mm | 350mm |
| X axis Speed | 50000mm/min | 50000mm/min | 50000mm/min |
| Y and Z Speed | 15000mm/min | 15000mm/min | 15000mm/min |
| Cutter handle: | ER25 | ER32 | ER32 |
| Cutter magazine | None | 6 cutter positions | 6 cutter positions |
| Processing range | 100x140mm | 200x200 | 200x200 |
| Overall dimension | 2200x1500x1950mm | 4180x1600x2200mm | 7100 x 1600 x 2200mm |
| Weight | about 610kg | about 1400kg | about 2360kg |
View more>>
Shandong Mingmei CNC Machinery Co., Ltd. Was founded in 1995, located in Jinan economic dev. Zone. Company cover an area of 70000 square meters and 208 staffs.
As leading manufacturer of industrial aluminum equipment which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.

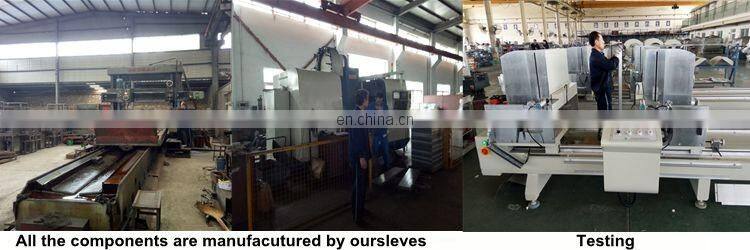

SHANDONG MINGMEI CNC selected each part carefully. What's important is that we have our own sheet-metal workshop and machanical department. We are strive to quality first when machine production.
MINGMEI engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.
After machine production finished, the products will be tested in professional ways make sure its performance.So we will provide the best machine for you.
Welcome to visit our factory ! Abroad customers came to our factory for training and guidance.
MMCNC on the Exhibition:Shanghai,Beijing,Guangzhou,Korea...
-Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
* We provide the consumable parts at agent price when you need replacement.
-Are you manufacturer or trade company?
*We are factory.Factory starts from 1995.For more company introduction click here>
-How I can get suitable Machine?
Please give me your followed information:
*First: Please tell us what's your max working area (L*W*H),
*Second: Please send us your profile drawing.Its very important.
Those two answers will help us choice suitable CNC machine for you.
If you are new farmer, no idea, contact us, our service department will guide you.
-What's your payment methods?
*L/C, 30% deposit by T/T,70% spare payment L/C.
*T/T, 30% deposit by T/T,70% spare payment before shipment.
* Western Union,Trade Assurance...
CONTACT
Blair Zhang (Sales Manager)
Tel: +8615965629053
Skype: tradecncmachine
Email: trade at
Get in touch. Any questions about aluminum pvc window door machine,please call me or send enquiry.
