Brand Name
MMCNC

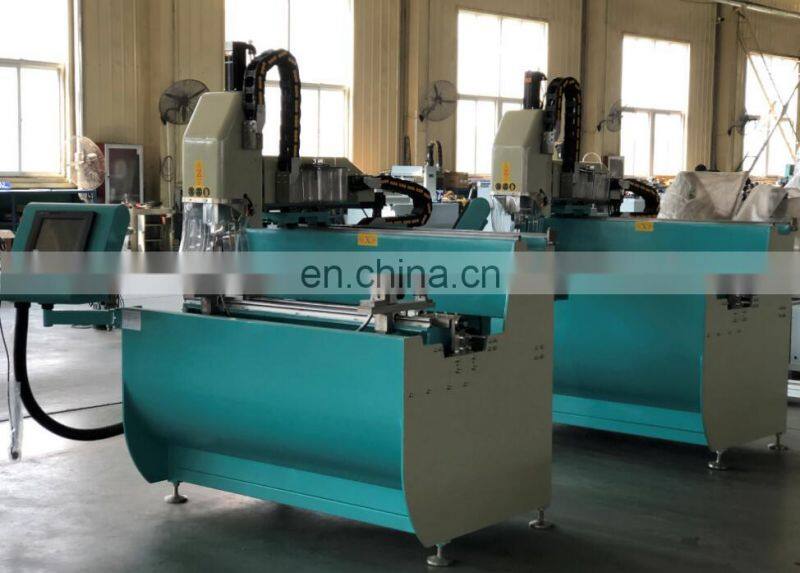

Aluminum Profile CNC Drilling Milling Machine
SKX-CNC-1200 for window door making
1.Equipment Features
1.1 Applicable for drilling holes,milling grooves,processing circular holes and special-shaped holes,plane engraving of aluminum alloy profile.
1.2 System adopts Taiwan SYNTEC CNC Controller.
1.3 Adopting electric spindle:high precision,high safety and reliable.
1.4 X axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission and high precision.
1.5 By using programming software to automatically transform and process G code;easy operation;high efficiency and low labour intensity.
1.6 Workbench can turn 180°,-90°~0°~+90°;it can realize three-sides processing by clamping one time;it can process deep and special-shaped holes through workbench;high efficiency and precision.
1.2 System adopts Taiwan SYNTEC CNC Controller.
1.3 Adopting electric spindle:high precision,high safety and reliable.
1.4 X axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission and high precision.
1.5 By using programming software to automatically transform and process G code;easy operation;high efficiency and low labour intensity.
1.6 Workbench can turn 180°,-90°~0°~+90°;it can realize three-sides processing by clamping one time;it can process deep and special-shaped holes through workbench;high efficiency and precision.
2.Technical Parameter
Parameter |
|
Air Pressure | 0.5~0.6MPa |
X/Y/Z Axis stroke | 1200mm*300mm*280mm |
Input Voltage | 380V 50Hz or As Customer need |
Input Power | 3Kw |
Handle type | ER25*Φ8 |
Processing range | 100*140 |
Overall size | 2200×1500×19500mm |
Weight | 700kg |
Main accessory |
|
Control system | Taiwan Syntec |
Electrical Button and Switcher | Schneider |
AC Contactor and Circuit Breaker | Schneider |
Approach Switch | Taiwan Delta |
Guide rail | Taiwan |
3.Detailed Photos
4. Samples
5.Packing&Delivery
6. Aluminum CNC Drilling Milling Machines at Our Factory
