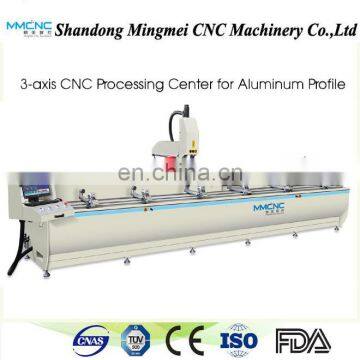

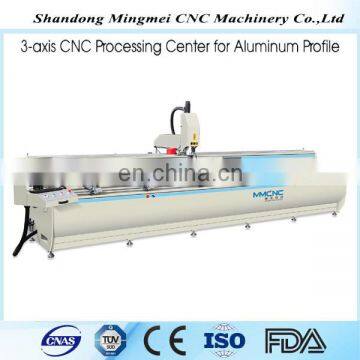

Window Curtain Wall Holes Making Machine,
Aluminum Profile 3 axis CNC Processing Center
Product Application
LCJG3-CNC-6000
1.This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,
window-door and curtain wall industry,it is also suitable for processing milling,chamfering,
engraving plane surface and other procedure.
2.Main spindle adopt air-cooling electric main axis from Italy,have the function of high precision,high safety and high reliable.
3.Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming software.It can transform processing code automatically,have the function of easy operation,high efficiency and lower labor intensity.
4.Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the precision of whole machine.
5. Inside blades storage can hold 6 sets blades,the handle is approved ISO 30 standards,it is very safety and reliable.
6.Adopt manual pump oil supply system,blades adopt system control system control spray cooling device.
7.The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
8.The main components adopts steel structure and they are all through aging treatment.
LCJG3+1-CNC-3000
1.This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,
window-door and curtain wall industry,it is also suitable for processing milling,chamfering,
engraving plane surface and other procedure.
2.Main spindle adopt air-cooling electric main axis from 9KW power,0-24000/min,have the function of high precision,high safety and high reliable.
3.Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming software.It can transform processing code automatically,have the function of easy operation,high efficiency and lower labor intensity.
4.Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the precision of whole machine.
5. The worktable can overturn 180° -90° 0° 90° Clamping one time profile can realize three faces processing,when processing deeply hole(hetero type hole), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
6.Adopt manual pump oil supply system,blades adopt system control system control spray cooling device.
7.The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
8.The main components adopts steel structure and they are all through aging treatment.
Export to USA, grey and orange color details:
-Pre-Sales Service
1.Inquiry and consulting support.
2.Design drawing as per your demands for your confirmation
3.View our factory
-After-Sales Service
1.One year warranty, the machine with main parts
(excluding the consumables) shall be changed
free of charge if there is any problem during the warranty period.
2.Maintenance free of charge during lifespan. 3.Free training course at our plant. 4.We will provide the consumable parts at an
agency price when you need replacement.
