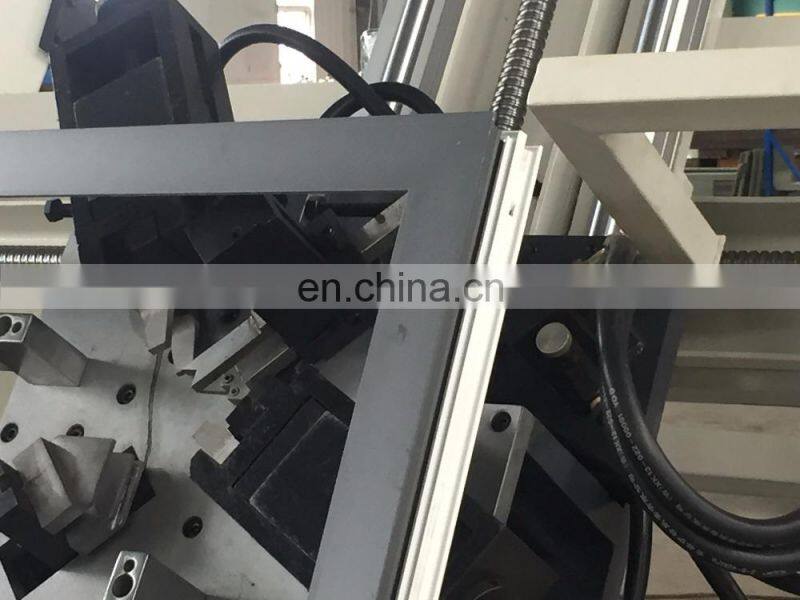

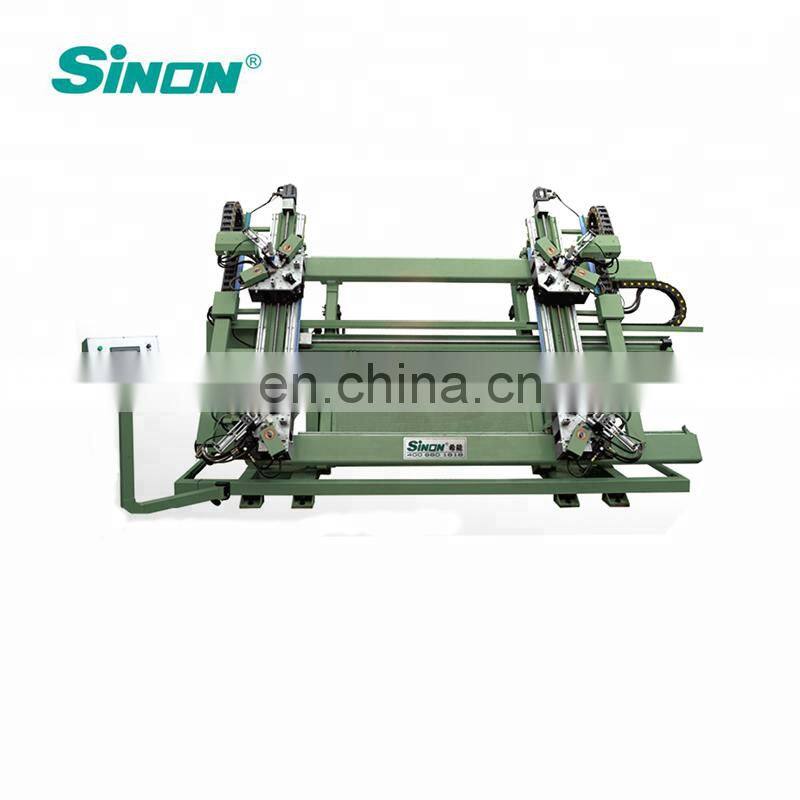

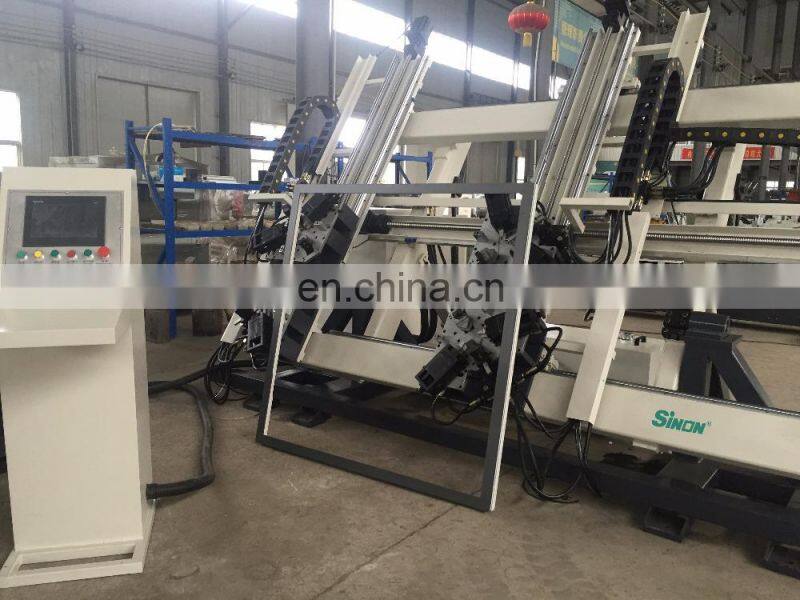

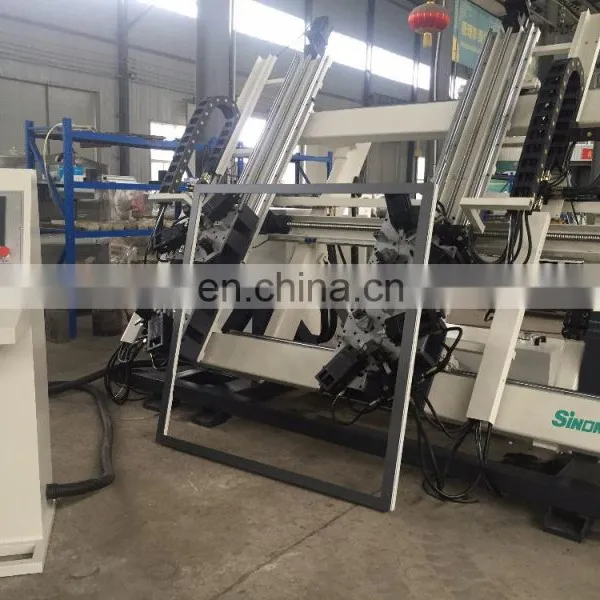

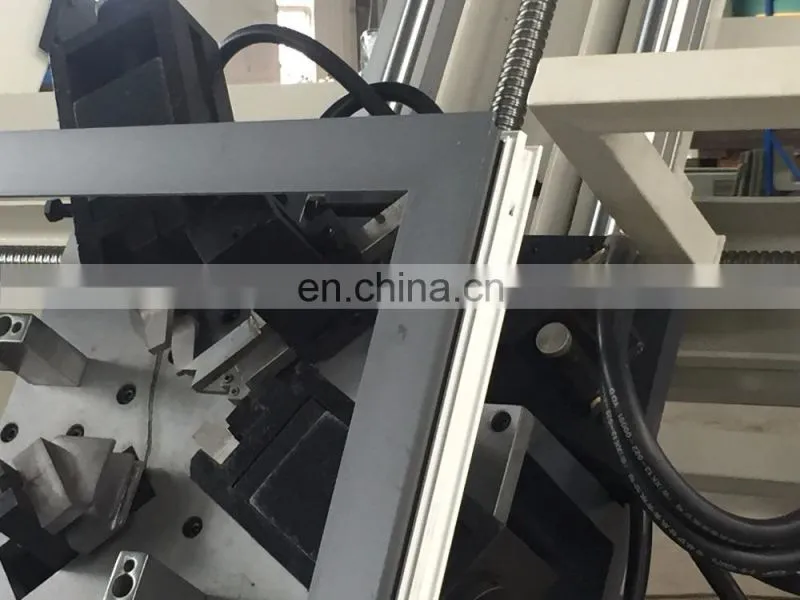

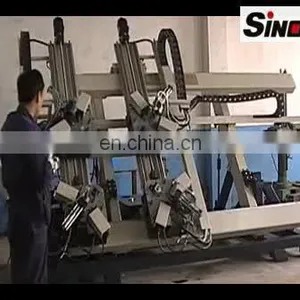

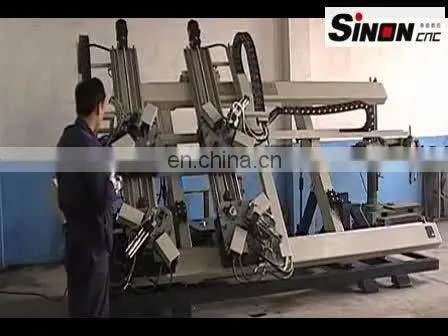

Aluminum Window Automatic Four Corners Aluminum Profile Crimping Machine
AluminiumWindow Door Fabrication Machine
Equipment Features:
1. Automatic Four Heads Corner Crimping Machine of Aluminum Window Door
2. The CNC system is imported from Europe,with high quality ensures the working speed and accuracy.
3. The torque monitor function of the service system can auto-press the four corners,ensuring the processing accuracy.
4. Air clamper can realize auto out and back horizontally.Easy to adjust shift motion,large motion range.It can meet pressing Requirements of all kinds of window and door type.To ensure the flatness before corner crimping.

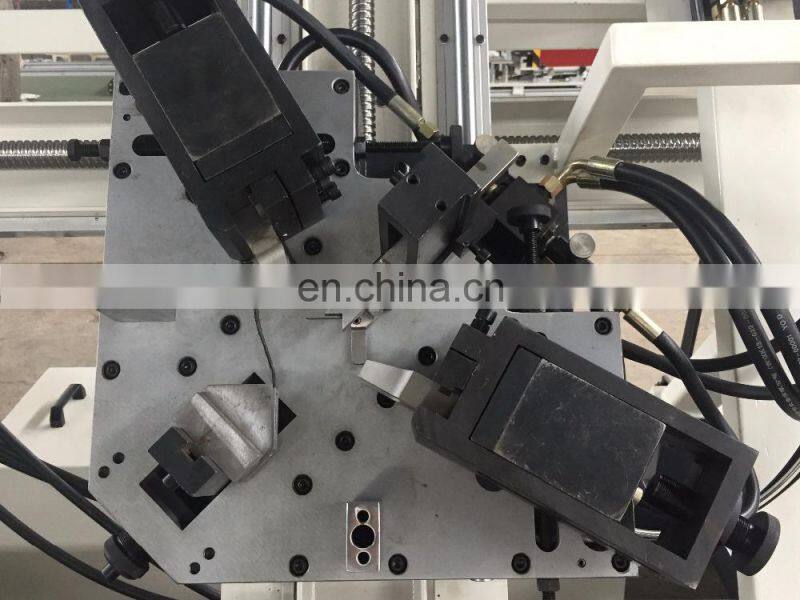

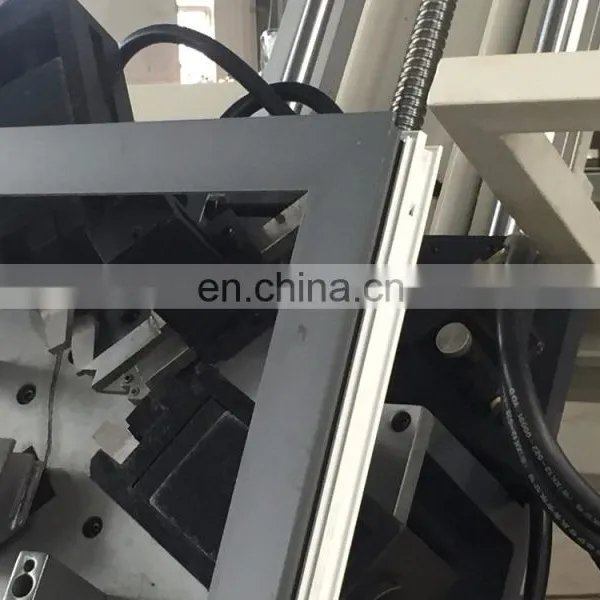

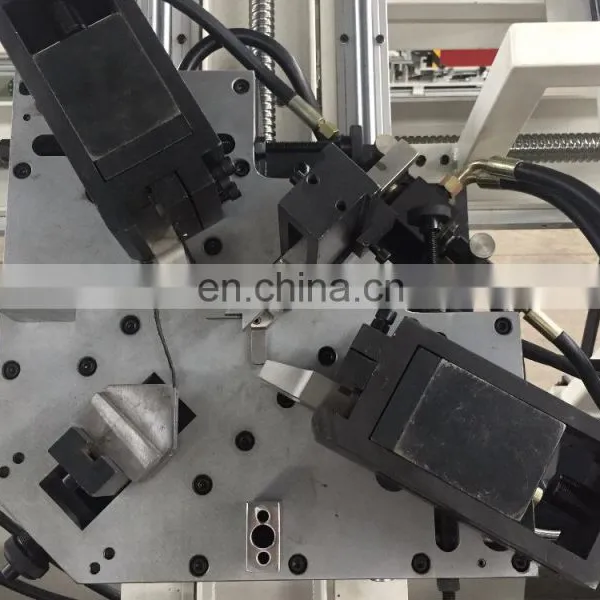

5. Adjust corner cutter to left and right between 30-80mm.Within this range can process min 450*450mm frame.
6.Using upper fastening mode after adjusted corner cutter.Lock convenient and reliable.
7.Special backup plate can be installed at eight positioning blocks to ensure conrner crimping accuracy.
8. One time corner crimping can control the seam and plane,make the quality foresight.
9.The control system service system make the connect no-seam and improve the control accuracy.
10. Hydraulic system to realize high and low pressure automatic exchange in the process of corner crimping,ensuring the processing accuracy.

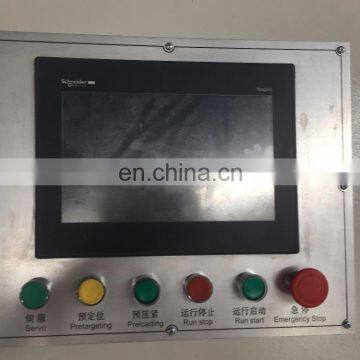

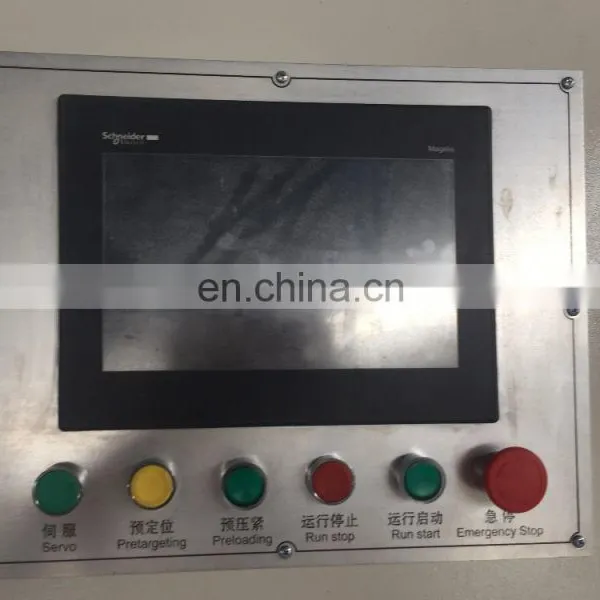

11.It adopts large screen touch control integrative machine,easy operation and friendly interface.
Technical Specification | |
Name |
Aluminum Window Automatic Four Corners Aluminum Profile Crimping Machine |
Model |
LZJZ4-CNC-100x1800x3000 |
Power Supply |
380V 50Hz |
Input Power |
7.5 kw |
Rating oil pressure |
15 MPa |
Air Working Pressure |
0.5 -0.8 MPa |
Air Consumption |
0.8 L |
Oil Box Capacity |
60 L |
Max.Frame Size |
2200*3000 mm |
Min.Frame Size |
450x450mm |
Cylinder Move Stroke |
0 -50 mm |
Profile Width |
90 mm |
Cater-corner error of finished window |
≤ 1mm |
Contour Seam Error |
≤ 0.15 mm |
Dimension |
5000*2200*2700mm |
Weight |
3000 KG |
Main Accessories | |
Control System |
Schneider, France |
Hydraulic System |
Litand, Taiwan |

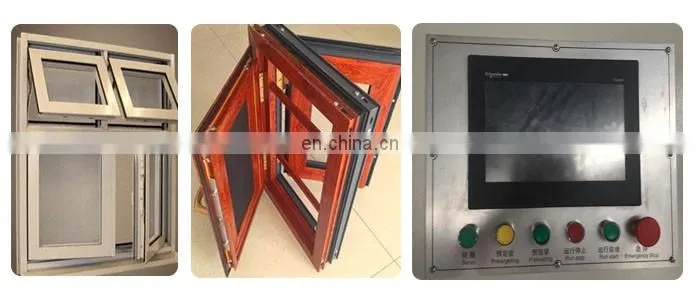

Aluminum Window Automatic Four Corners Aluminum Profile Crimping Machine
24h x 365 service
1. detailed operation Manual and video
2. Our engineers could provide service overseas for installation,test and training
3. One year warranty since B/L issued,lifetime maintenance
4. 24h and 365 days online service by E-mail, calling ,social media ,video call
5. broken parts can be changed quickly, some parts can sent FREE within one year
6. Return visit for free maintenance.
7. Give professional Turn-Key Solution for client's requirements,production capacity and market.
Service Overseas for Our Clients
SINON - is well-known manufacturer of UPVC / Aluminum Window Door Making Machines, Industrial Aluminium Processing Machines. is one of the most professional company in the industry. SINON was founded in 2003, has more than 10 years of rich experience. the company production assembly workshop of 5000 square meters, mechanical processing workshop, sheet metal workshop 2000 square meters. As a professional research and development, manufacturing, sales and service team of innovative enterprise, the company's products cover PVC doors and Windows and aluminum doors and Windows equipment two major series of hundreds of products, has more than 20 technical patents,
around 2010, the company was one of the best companies manufacturing UPVC plastic material cutting center, UPVC doors and Windows cleaning welding automatic production line, aluminum cutting center, four head corner combining machine. In 2012 developed china’s first aluminum profile 4-axis CNC milling machine, 2015 developed China's first manufacturing sun room doors and Windows of large cross section of CNC double cutting saw, first developed CNC corner cutting center that can cut more than 10 yards. And apply for the two national invention patent.
Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United States UL safety certification,
Our products are exported to more than 40 countries and regions, Central and Eastern Europe ,Middle East & North Africa,Southeast Asia ,North and South America we warmly welcome all customers come to jinan,come to Sinon company to visit, negotiate and cooperate.
Aluminum Window Automatic Four Corners Aluminum Profile Crimping Machine
1. Are you a trading company or a factory?
Factory and Trade ( integration)
2. When can we arrange shipment?
We usually arrange shipment within 10-15 days after getting deposit,
but customized machines should be about 20 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and
operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2).Copy router machine
3).End milling machine
4).Corner connector cutting saw
5).Corner combining machine
6).Punching hole machine
7).Aluminum Bending Machine
8).Other related machines
5. If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2). Welding machine 1/2/3/4 head
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).V-notch Cutting Saw / End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
8).PVC Bending Machine
9).Screw Drilling Fastening Machine for Steel Liner
6. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service.
