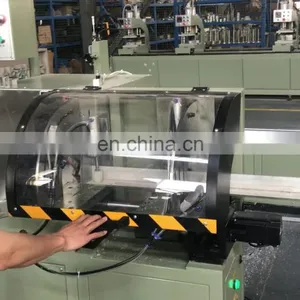

CE Certificate Automatic Feeding Single Head Cutting Aluminium Saw
- 100 Set / Sets per Month
- QINGDAO
- T/T Credit Card
You May Like
-
15 Years Factory Double Head Aluminum Profiles Cutting Saw
-
Aluminium Window Profile Cutting Machine for End Milling
-
Economical Double Head Cutting Machine for Aluminium Profile
-
Industrial Aluminium Profile Single Miter and Double Miter Cutting Saw
-
Good Price Double Head / Two Point Cutting Saw of PVC and Aluminium
-
Four Heads CNC Automatic Aluminium Door Window Crimping Machine
Product Details
Brand Name | SINON | Model Number | LJJ01-450 |
Wooden Case
Product Description

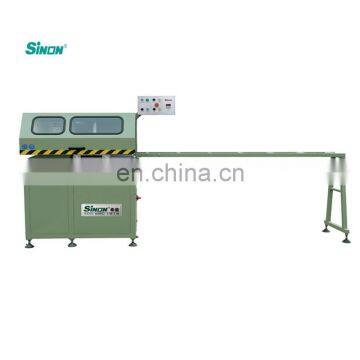

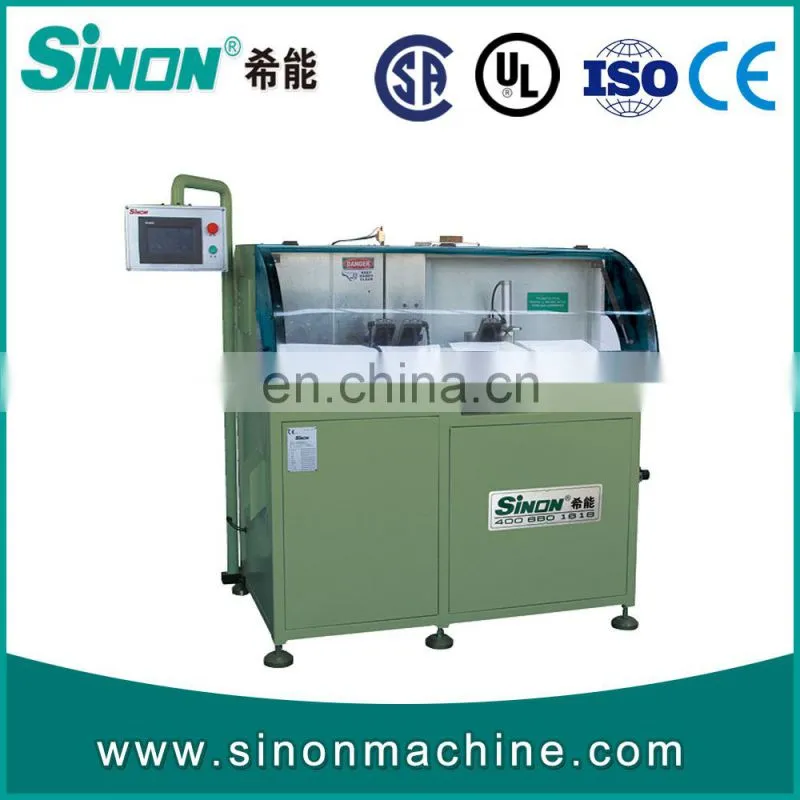

CE Certificate Automatic Feeding Single Head Cutting Aluminium Saw
Technical Specification | |
Name | Aluminum Connector Cutting off Saw |
Model | LJJ01-450 |
Input power source | 380V/50Hz |
Total power | 2.2Kw |
Working air pressure | 0.5~0.8MPa |
motor rotation speed | 2800r/min |
Diameter of blade | 450mm x30mmx4.4mm |
Cutting feed speed | 0-3m/min |
Cutting length | Max 100mm Min 3mm |
Cutting W x H | 120*120mm |
Cutting angle | 90° |
repeat locating length tolerance | ±0.20mm |
cutting profile surface plane | ≤0.10mm |
cutting angle tolerance | ±5′mm |
cutting profile surface roughness | Ra12.5µm |
Dimension | 5500×1700×1900mm |
Weight | 500kg |
Equipment Features
1. For cutting Aluminum Profile, Industrial Aluminum, Aluminum Frame ... at 90 degrees.
2. Adopted Programmable Controller ( PLC ) to ensure the machine running more steady and reliable.
3. Automatic and continuous feeding and cutting
4. Count control device: set cutting quantity by digital, the machine will stop automatically when finish the cutting quantity.

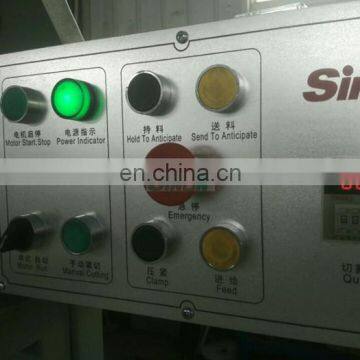

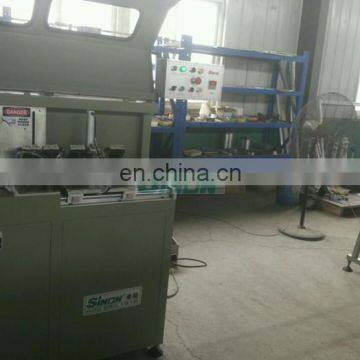

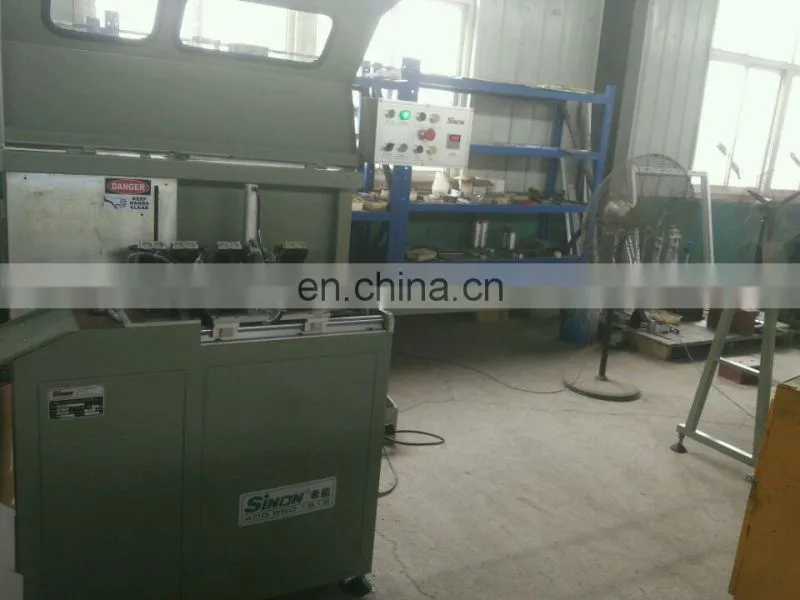

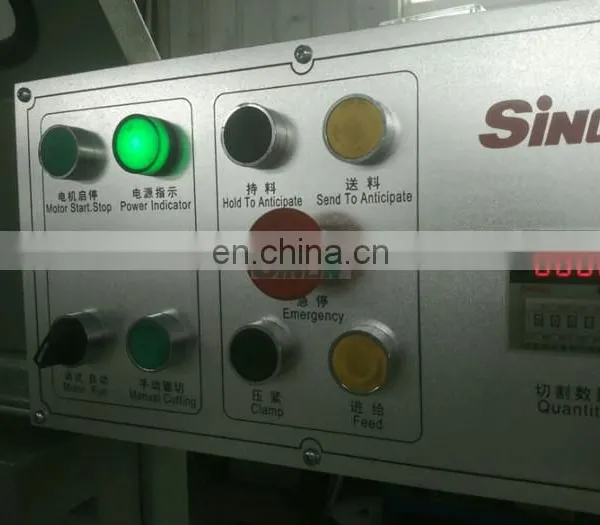

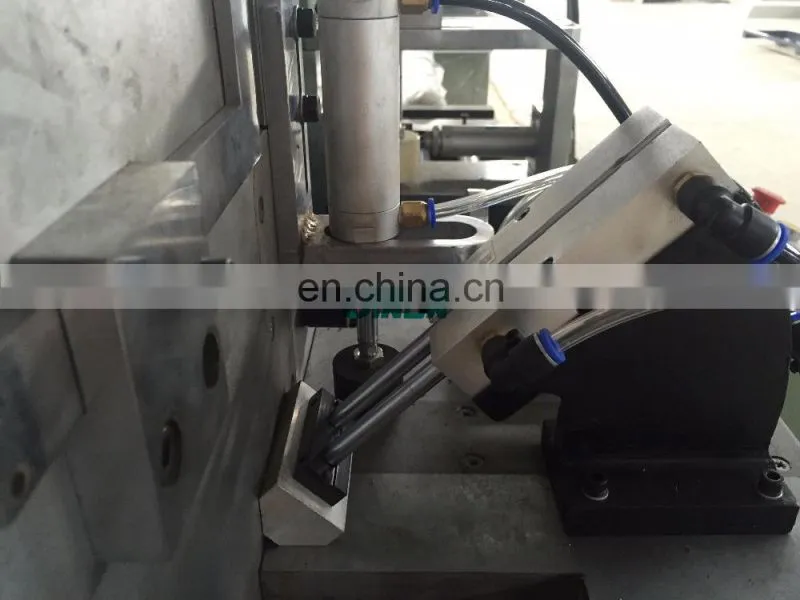

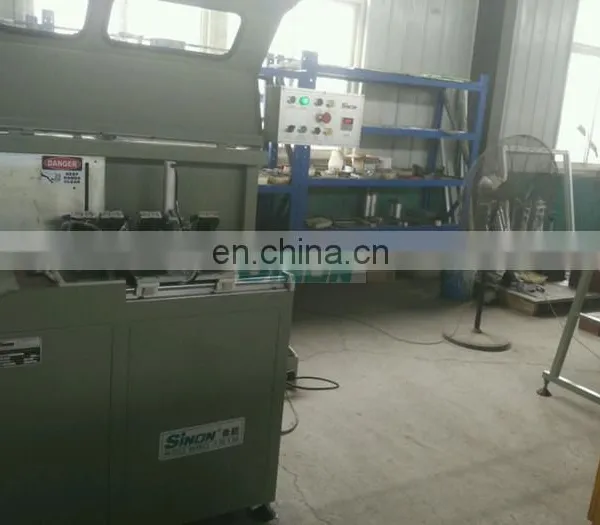

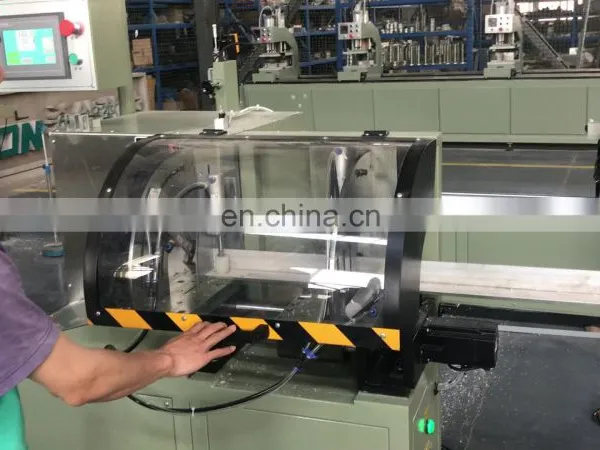

Equipment Details
Aluminum Profiles
CE Certificate Automatic Feeding Single Head Cutting Aluminium Saw
CE Certificate Automatic Feeding Single Head Cutting Aluminium Saw
Jinan SINON CNC Machine Co., LTD
is China's well-known manufacturer of UPVC Window Door Making Machines, Aluminium Window Door Making Machine, Aluminium Profile Processing Machines. is one of the most professional company in the industry. SINON was founded in 2003, has more than 10 years of rich experience. the company production assembly workshop of 5000 square meters, mechanical processing workshop, sheet metal workshop 2000 square meters. As a professional research and development, manufacturing, sales and service team of innovative enterprise, the company's products cover PVC doors and Windows and aluminum doors and Windows equipment two major series of hundreds of products, has more than 20 technical patents,
around 2010, the company was one of the best companies manufacturing UPVC plastic material cutting center, UPVC doors and Windows cleaning welding automatic production line, aluminum cutting center, four head corner combining machine. In 2012 developed china’s first aluminum profile 4-axis CNC milling machine, 2015 developed China's first manufacturing sun room doors and Windows of large cross section of CNC double cutting saw, first developed CNC corner cutting center that can cut more than 10 yards. And apply for the two national invention patent.
Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United States UL safety certification,
Our products are exported to more than 40 countries and regions, Central and Eastern Europe ,Middle East & North Africa,Southeast Asia ,North and South America we warmly welcome all customers come to jinan,come to Sinon company to visit, negotiate and cooperate.
Customer Visit
Related Aluminium Profile Cutting Machines

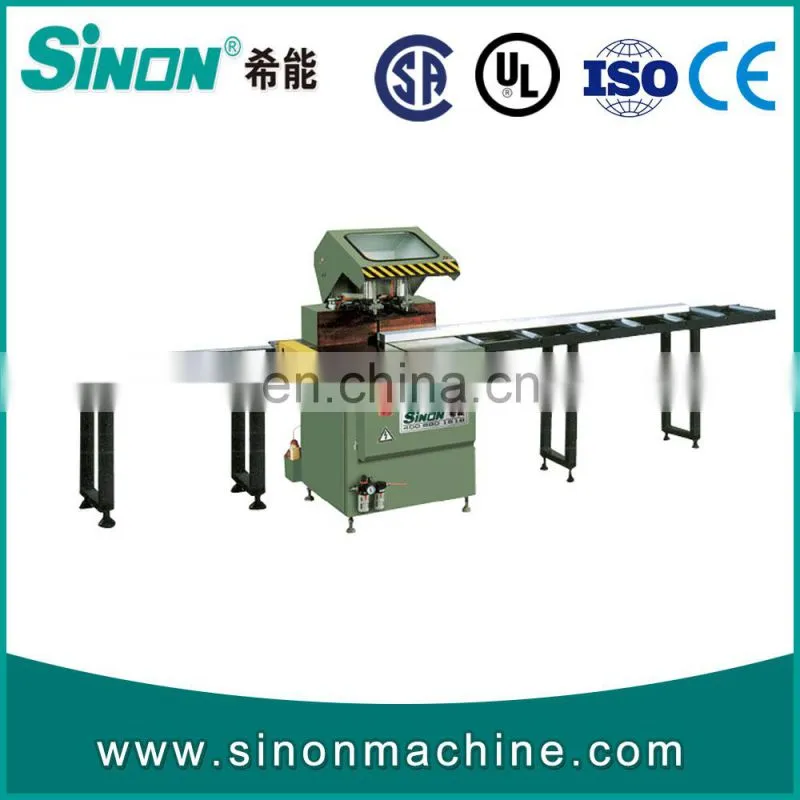

CNC Automatic Cutting Saw Single Head Cutting Saw

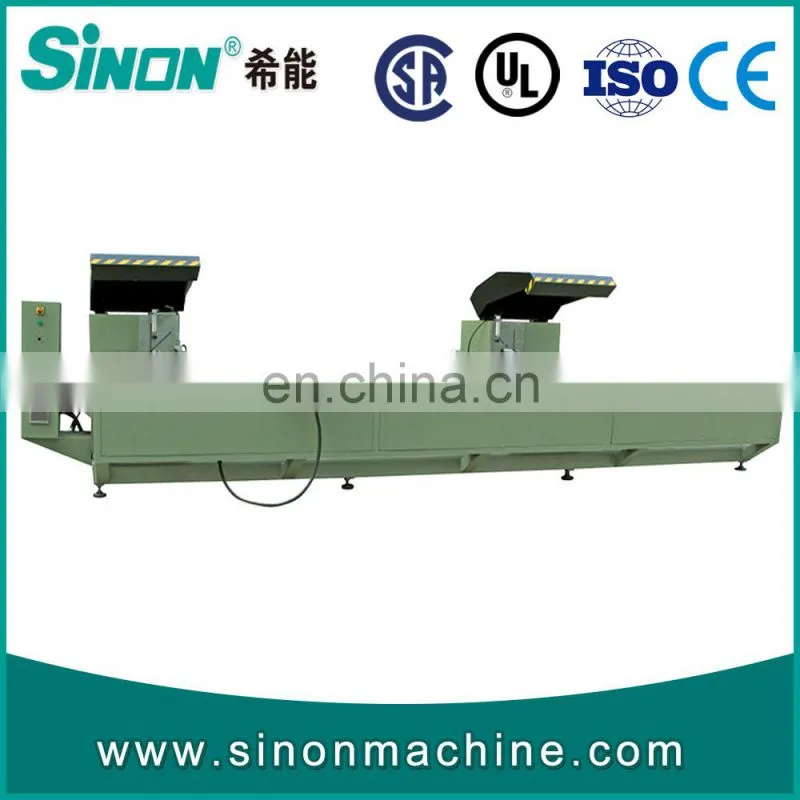

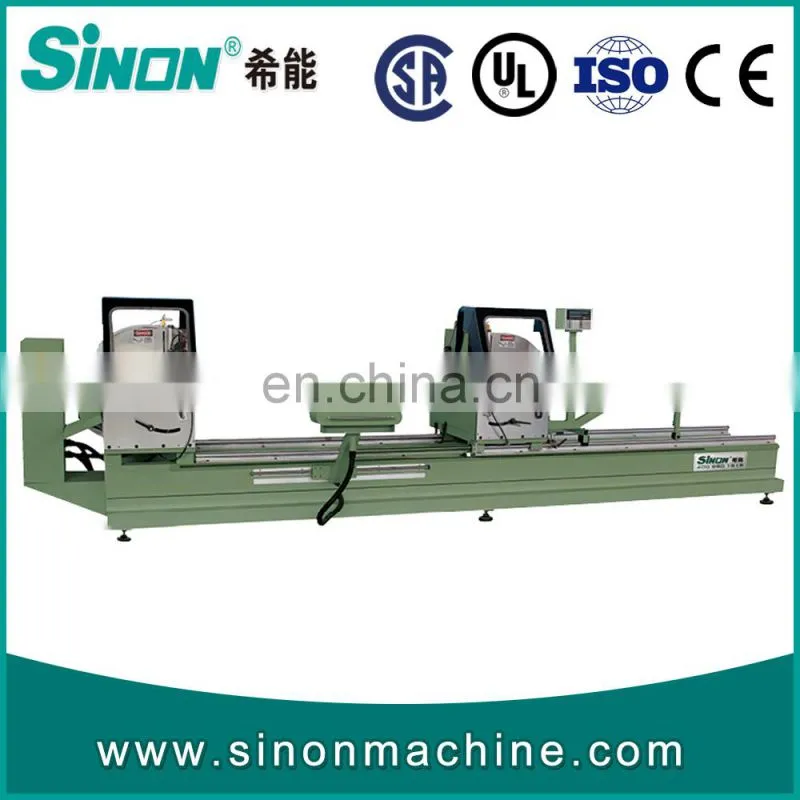

Double Head Cutting Saw -Digital Display CNC Automatic Double Head Cutting Saw
