best price aluminum window door auto corner key cutting machine
- 50 Set / Sets per Month
- qingdao
- T/T Credit Card
You May Like
-
quality single head copy router milling machine for aluminum and pvc window
-
Aluminium digital display double cutting saw machinery for aluminium fabrication
-
Horizontal double door hinge drilling machine for aluminum window and door
-
PVC UPVC Aluminum window and door production line End Milling Machine for sale
-
aluminum window door corner key cutting saw /corner key cutting saw machine for aluminum window door
-
Aluminium window machine windows and door fabrication machine Curtain Wall Multi Head Drilling Machine
Product Details
Brand Name | Sinon | Model Number | LJJ02A-500 |
witnin wooden case / nude packing or custumed
Product Description
best price aluminum window door auto corner key cutting machine
Details
- It is used for cutting corner connecter of aluminium profiles
- Adopts industry grade computer system, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.2mm(optional: cnc model)
- Automatic alarm function when without work pieces or finish cutting
- Auto device to realize the continuous feeding
- The feeding stroke can adjustable within 3-600mm
- Saw blade rotates smoothly due to high accurate main spindle, steady running with high precision
- The speed of saw blade infeed in linearity adjustable by air-hydraulic cylinder
- Equipped with phase sequence protection device, so as to protect the machine once shut off or misconnect the phase.
Technical Specifications
Product Name | best price aluminum window door auto corner key cutting machine |
Power supply | 380V 50HZ |
Total power for motor | 3.0KW |
Blade specification | Φ500mm×φ30mm×4.4mm |
Cutter feeding speed | 0-3m/min |
Cutting length | Max 180mm Min3mm |
Blade W*H | 135*135mm |
Cutting angle | 90° |
Repeat locating length tolerance | ±0.20mm |
Cutting profile surface plane | ≤0.10 mm |
Cutting angle tolerance | ±5′ mm |
Cutting profile surface roughness | Ra12.5um |
Contour dimension(L*W*H) | 5500×1700×1900mm |
Weight | 750kg |

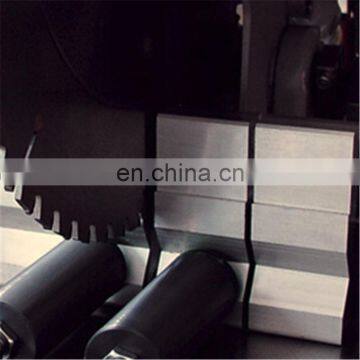

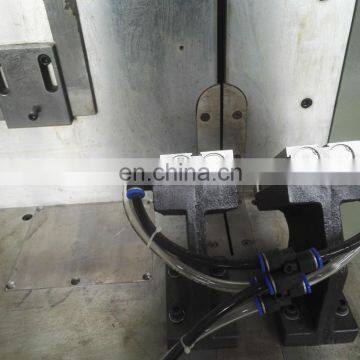

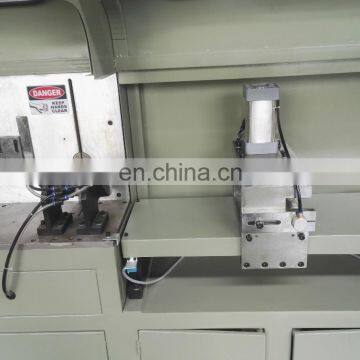

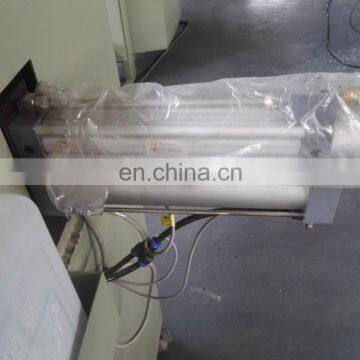

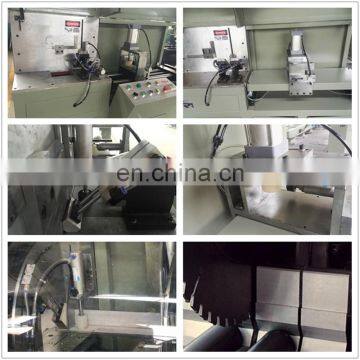

Details Photo
Machine Layout Drawing for 30-50 Aluminum windows and doors per shift
- Sinon LJZ2B-CNC-500*4200 Double-head precision cutting saw (LJZ2B-CNS-500*4200)
- Sinon SSJ06-3700 Double head cutting saw
- Sinon LSFX-100 Cory router for aluminium window (SX01-100) 2 set
- Sinon DX06-250 End milling machine for aluminium profile (DX06A-250) 1 set
- Sinon LJJ02A-500 best price aluminum window door auto corner key cutting machine (LJJ01-450) 1 set
- Sinon LYJ-75 Punching machine for aluminium window (LY6-50) 2 set
- Sinon LZJ03-130 Corner crimping machine for aluminium window 3 set
Related Product
CNC Double Head Precision Single Head Copy Routing Aluminum Window Corner Cutting Machine Macchine Crimping Machine
Our Quality
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
- From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
- The core components are all internationally renowned brands such as SIEMENS, FESTO
- 15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Our Services
- Pre-sales service:
. Provide free domestic and foreign project analysis
. Free to provide domestic and foreign industry information
. Free design drawings for factory
. Free layout Plan for complete sets of equipment
- Middle-sales Service:
. Free training ,operation and use
. Free training doors and windows production technology
. Free Training Plant Maintenance engineer
- After-sales Service:
. 12 months warranty, life-long maintenance, regular maintenance and maintenance
. Provide timely and fast spare parts supply to domestic and abroad
. Provide online "outpatient" to solve technical problems for customers
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
Sinon provide professional machine solutions for your project fabrication.
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements. The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Key Benefits are
· Top quality parts from SIEMENS ,Hiwin, Schneider, OMRON and Festo(SMC).
· In house manufactured components to ensure consistent quality.
· Free on line modem support
· 1 Year warranty on all machinery
· R & D Department for bespoke machinery.
Certifications
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
- Q1: Are you trading company or manufacturer ?
A1: We are manufacturer and trading (integration)
- Q2: How long is your delivery time?
A2: Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
- Q3: How does your factory do regarding quality control?
A3: We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.
- Q4:What will you do if the machines have problems?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
- Q5: What is your terms of payment ?
A5: 30% TT deposit,70% balance before shippment . Or L/C or Western Union
- Q6: How long from Jinan airport to your factory ?
A6: About 10minutes . We could pick you up at the airport or railway station if you need.
More information about best price aluminum window door auto corner key cutting machine, Please feel free to contact me by below information
- What's app / Mobile / Wechat: +86 186 5316 1193
- Skype: sinonmachine
Company Profile

Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
