Eurpean quality single head copy router milling machine for aluminum and pvc window
Features
- It is used for processing lock hole, water slot and hardware hole of PVC and aluminum window and door
- It features compact structure, nice outer figure, and small volume
- The standard mold board to control the size of the holes shape, the milling scale is 1:1
- Driller milling droved by the high speed spindle motor. and the high power output of the spindle to ensure the high milling precision
- The standard two pieces of mold board at left and right to control the size of the holes shape, the milling scale is 1:1. the mold board adjust and change easy, suitable range widely, high efficiency
- The double step copy-routing needle design suitable for different size of the holes
- It can processing different grooves controlled through the ruler
Technical Parameter
Product Name | Eurpean quality single head copy router milling machine for aluminum and pvc window |
Power supply | 380V 50HZ |
Total power for motor | 1.1KW |
Motor rotary speed | 2800r/min |
Air working pressure | 0.5-0.8MPa |
Motor rotary speed | 0-12000r/min |
Copy-routing range | 100*300 |
Diameter of the milling cutters | Φ5mm,φ8mm |
Processing deviation from straightness | ± 0.1 mm |
Processing roughness | Ra12.5um |
Contour dimension(L*W*H) | 1100×950×1500mm |
Weight | 230kg |
Optional Models
- Single head aluminum / pvc window copy router LSXZ1B-125
- High speed heavy type aluminum / pvc window copy router LDZX01-100
- 3 axis (4 axis) CNC aluminum / pvc window copy router GCGZD-1000

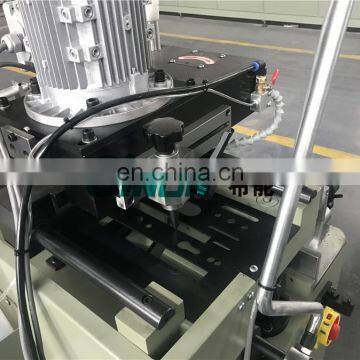

Details Photo
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
