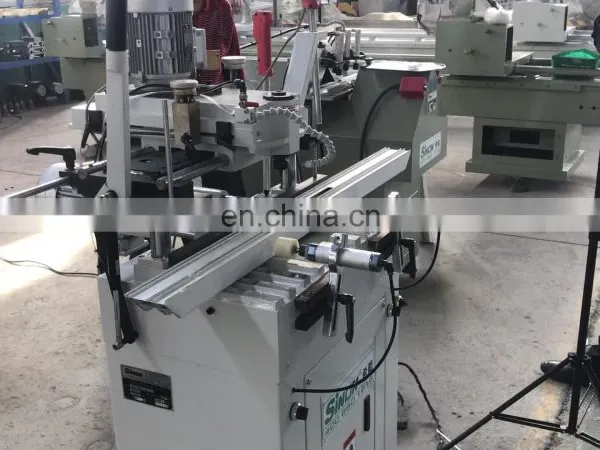

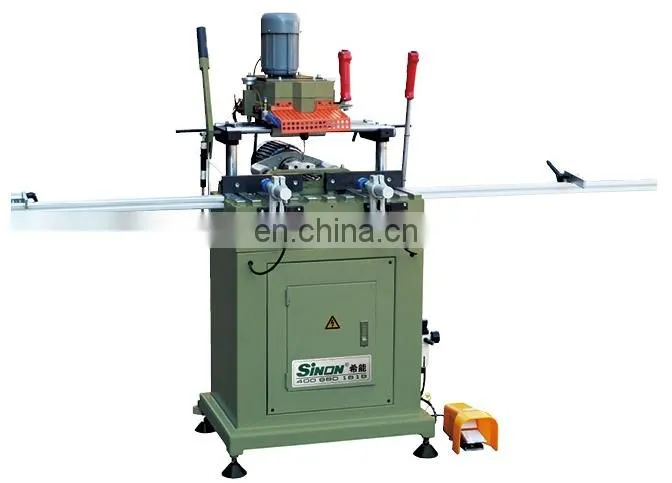

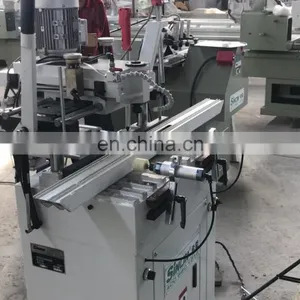

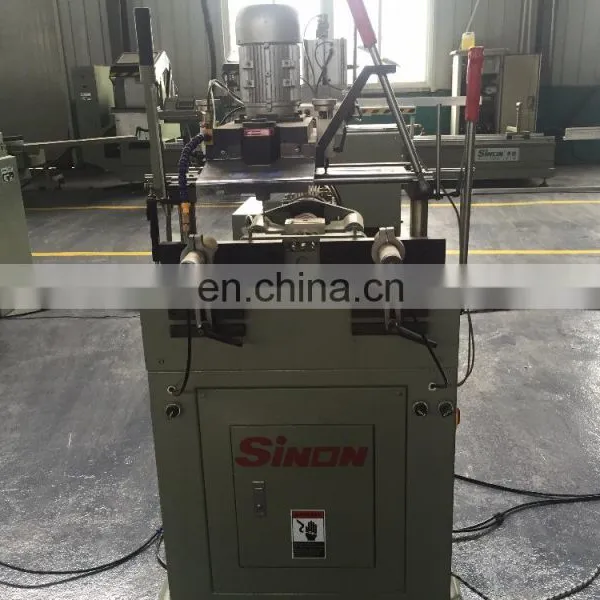

New Type pvc aluminum profile door lock hole drilling machines
Features

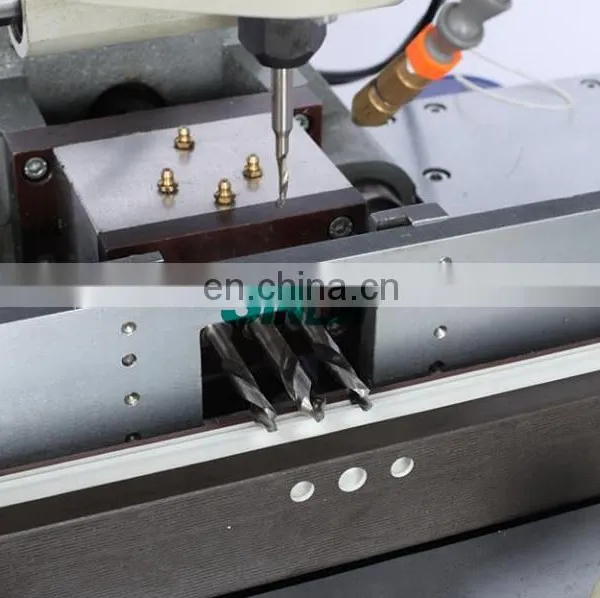

- Professional use for processing handles in three holes and the slots which for installing the hardwares at the PVC and Aluminum profile.

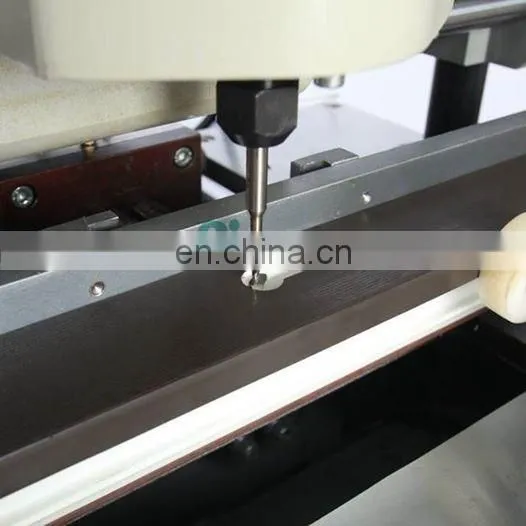

- The copy routing size is controlled by the standard template and the proportion is 1:1
- Adopt the high-speed copy-routing milling head
- The ruler can be adjusted according to the rotate wheels. So that make the three driller always at the middle of the profile
Technical Parameter
Product Name |
New Type Lock Hole Routing Machine For pvc profiles |
Power supply |
380V 50HZ |
Total power for motor |
1.5KW |
Motor rotary speed |
2800r/min |
Air working pressure |
0.5-0.8MPa |
Motor rotary speed |
0-12000r/min |
Copy-routing range |
Vertical : 290*90 Horizontal: 100*300 |
Diameter of the milling cutters |
Φ5mm,φ8mm |
Profile section |
W230*H150-210 |
Processing deviation from straightness |
± 0.1 mm |
Processing roughness |
Ra12.5um |
Contour dimension(L*W*H) |
1100×950×1500mm |
Weight |
230kg |

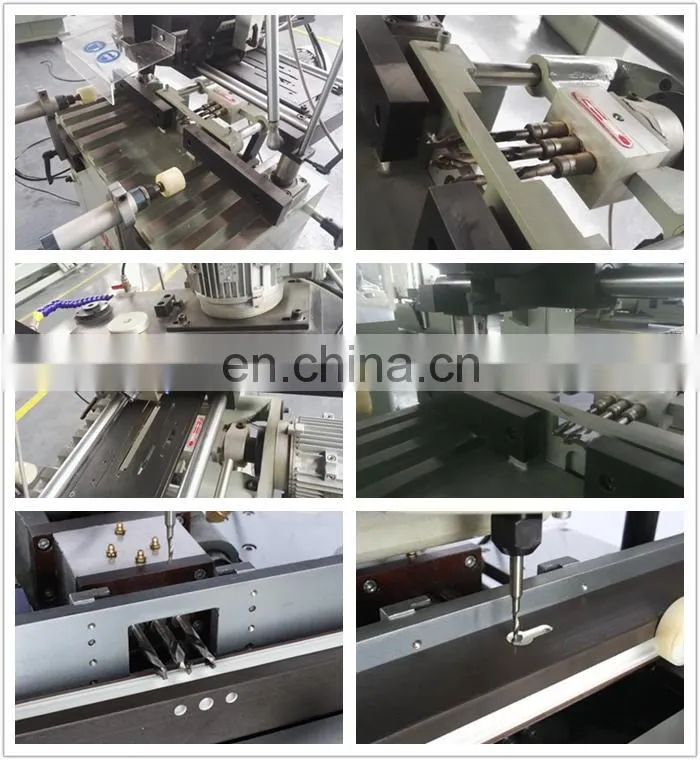

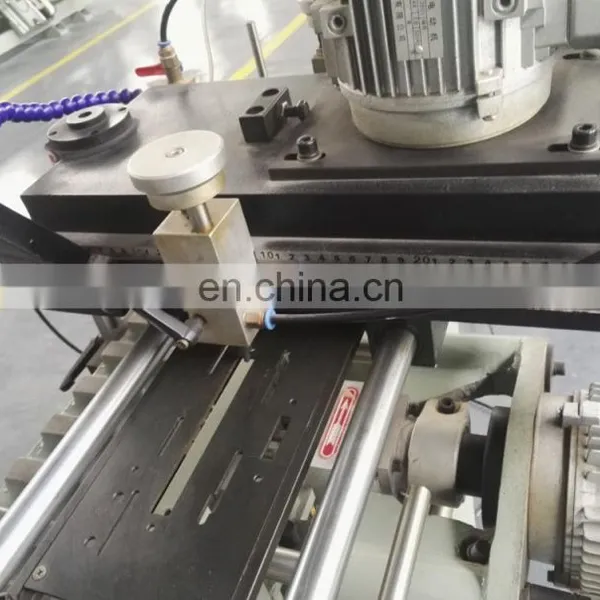

Details Photo
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
About
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements.
The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
