High Precision Double Head Plastic Frame Material Cutting Saw for PVC Window
Technology Parameters | |
Name |
High Precision Double Head Plastic Frame Material Cutting Saw for PVC Window |
Model |
LJZ2B-500x4200 |
Power Supply |
380V 50HZ |
Input Power |
2*2.2 Kw |
Working Air Pressure |
0.5-0.8 MPa |
Air Consumption |
250L/Min |
Motor Rotation Speed |
2800r/min |
Blade Specification |
500*30*4.4 mm |
Cutter Feeding Speed |
0-3 m/min |
Cutting length |
450 ~4200mm |
Cutting Width |
135mm |
Cutting Height |
300mm |
Cutting Angle |
45° 90° |
Repeat locating length tolerance |
± 0.20mm |
Cutting Profile surface plane |
≤0.10mm |
Cutting Angle tolerance |
± 5' mm |
Dimension ( L*W*H ) |
600*1700*2000mm |
Weight |
1800KG |
Main Configuration | |
Saw Blade |
Wagen , Japan |
Cylinder |
EASUN |
Air Filter Device |
STNC |
Contactor and Circuit Breaker |
Schneider ,France |
Electrical Button and Switches |
Schneider, France |
Product Features
1.For cutting aluminum window door, curtain wall, corner connector.
2.Adopts industry PC system, the user can set parameters according profiles.
3.Cutting size changes quickly, high location precision with ±0.2mm.
4.Touch screen with button,has USB interface, can realize the data and processes list inputting via the external storage.
5.Working list cutting function: choise different profiles quickly.
6.Optimized Cutting Function: optimized cutting according working list.
7.Continuous feeding: automatic feeding profile at 90°.
8.Cutting angle automatic index: 45° and 90°.
9.High precision linear system to ensure the saw lade running steady and precise.
10.Auto opening safe shield with ruuer seal make the user safe.
11.With middle profile supporter and movable carrier.
12.Phase sequence protection device, it can protect the machine once miscontact phase or shut off.
LJZ2E-500x4200 : 500mm blade, cutting from bottom to up
SSJ06-450x3700 : 450mm blade, cutting angle:45 /90/135 degrees
LJZ2B-CNC-500x4200 : CNC Automatic type

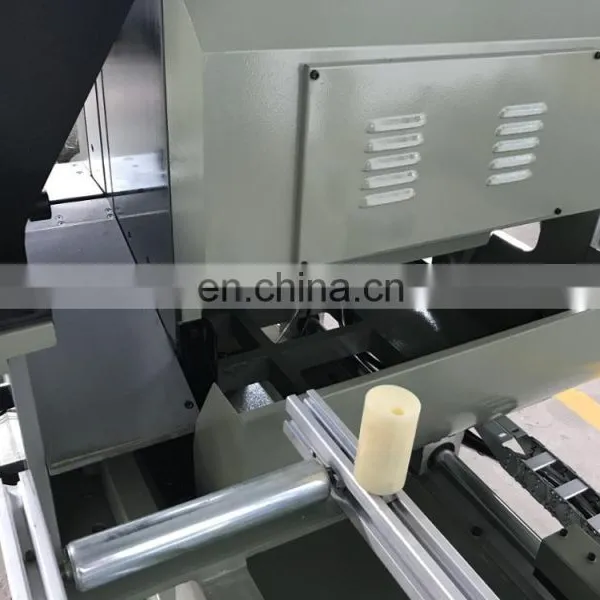

High Precision Double Head Plastic Frame Material Cutting Saw for PVC Window
Professional Customization and Solution for Aluminum & UPVC Window Door Production
Professional Service
1. detailed and professional User Manual and operation video
2. one year warranty since B/L issued,lifetime maintenance
3. our engineers could provide service overseas for installation,test and training
4. 24h service online by E-mail, calling ,social media ,video call
5. broken parts can be changed quickly, some parts can sent FREE within one year
6. Return visit for free maintenance.

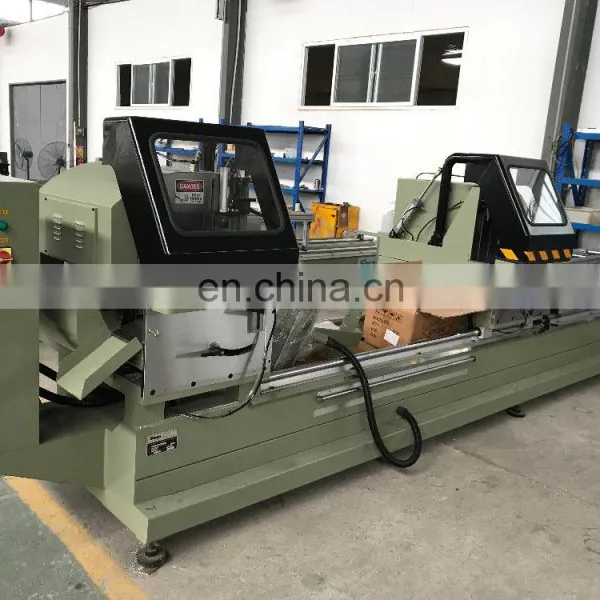

High Precision Double Head Plastic Frame Material Cutting Saw for PVC Window
Jinan SINON CNC Machine Co., LTD
is China's well-known UPVC/Aluminum Window Door Making Machines' manufacturer. is one of the most professional company in the industry. SINON was founded in 2003, has more than 10 years of rich experience. the company production assembly workshop of 5000 square meters, mechanical processing workshop, sheet metal workshop 2000 square meters. As a professional research and development, manufacturing, sales and service team of innovative enterprise, the company's products cover PVC doors and Windows and aluminum doors and Windows equipment two major series of hundreds of products, has more than 20 technical patents,
around 2010, the company was one of the best companies manufacturing UPVC plastic material cutting center, UPVC doors and Windows cleaning welding automatic production line, aluminum cutting center, four head corner combining machine. In 2012 developed china’s first aluminum profile 4-axis CNC milling machine, 2015 developed China's first manufacturing sun room doors and Windows of large cross section of CNC double cutting saw, first developed CNC corner cutting center that can cut more than 10 yards. And apply for the two national invention patent.
Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United States UL safety certification,
Our products are exported to more than 40 countries and regions, Central and Eastern Europe ,Middle East & North Africa,Southeast Asia ,North and South America we warmly welcome all customers come to jinan,come to Sinon company to visit, negotiate and cooperate.
Customer Visit
High Precision Double Head Plastic Frame Material Cutting Saw for PVC Window
1. Are you a trading company or a factory?
Factory and Trade ( integration)
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and
operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2). Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner combining machine
6).Punching hole machine
5. If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2). Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
6. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service
Aluminum Double Head Cutting Saw / Aluminium Windows Doors Making Machines
If you have any questions,please don't hesitate to contact us !
