Sinon Brand Automatic Water Slot Holes Milling Machinery For PVC Windows
- Qingdao Port
- T/T Credit Card
You May Like
-
Sinon Brand 3 Head Automatic Water Hole Drilling Machines
-
Sinon Brand Four Corner Normal UPVC Door Window Making Machine
-
Sinon Brand 220V Weld Portable UPVC Window Making Machine
-
Sinon Brand Hot Sale Welding Machine For PVC Window Frames Used
-
Sinon Brand SSJ06-3700 Double Corner UPVC Window Making Machine
-
China SINON Polyvinyl Window Door Making Machine for PVC Profile
Product Details
| Brand Name | Sinon |
Wooden Case of Standard Package for Sinon Brand Automatic Water Slot Holes Milling Machinery For PVC Windows
Product Description
Sinon Brand Automatic Water Slot Holes Milling Machinery For PVC Windows
Features
- Professional use in milling the water slot and the balanced holes of air pressure of win-door in PVC profile
- Adopt the modularization structure design, there are three milling heads which can be freely selected working in individually or combinatively, is easy to operate
- The adjustment up and down/front and back of No. 1 and 2 machine head via by the screw. The adjustment easy and convenience.
- The No. 3 machine head not only can adjust the angle, but also can moves left and right. It not only can process the water slot holes in 45 degree, but also can ensure the position of the water slot is symmetrical
- It can processing symmetrical water slots and air pressure holes at the two ends of one piece of profile via by 1#, 2# machine head work with 3# head combining working
Technical Parameter
Product Name | Sinon Brand Automatic Water Slot Holes Milling Machinery For PVC Windows |
Power supply | 380V 50HZ |
Total power for motor | 2.2KW |
Motor’s rotation speed | 25000r/min |
Air working pressure | 0.5-0.8MPa |
Diameter or milling cutter | Φ5*50mm/φ5*75mm |
Cutter feeding speed | 0-3m/min |
Max. milling depth | 30mm |
Milling Width | 4-5mm |
Milling length | 0-60mm |
Contour dimension(L*W*H) | 1900×900×1600mm |
Weight | 280kg |

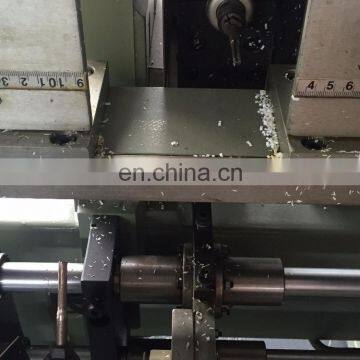

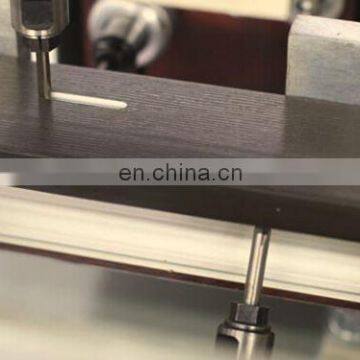

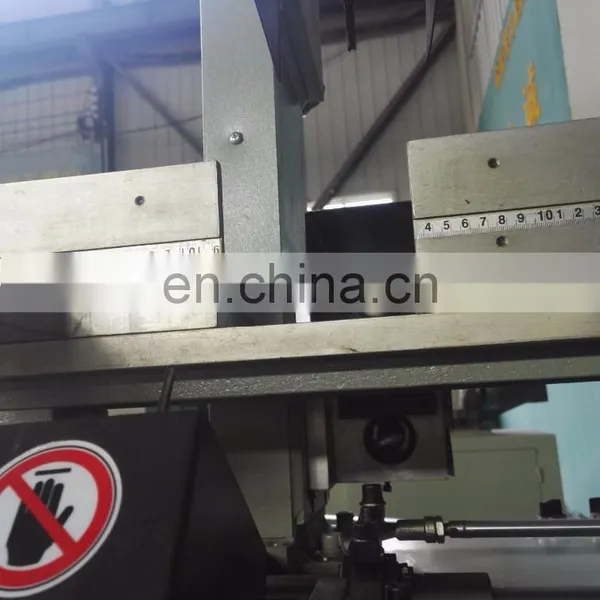

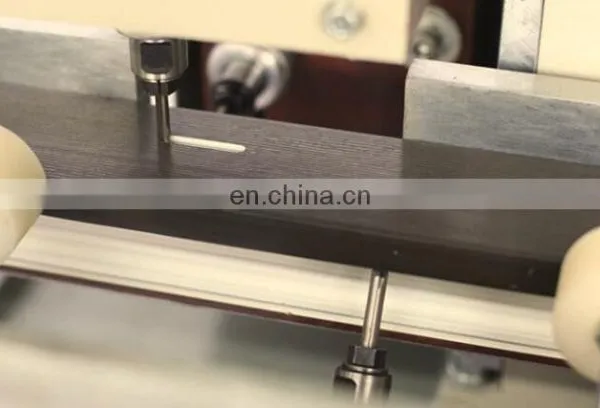

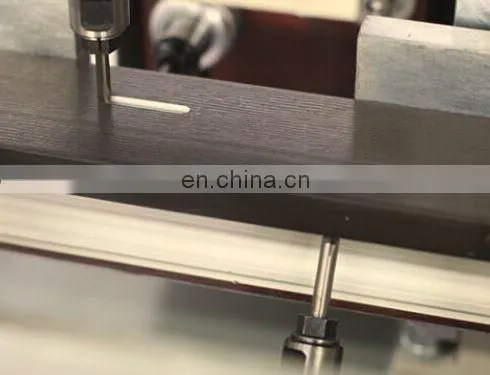

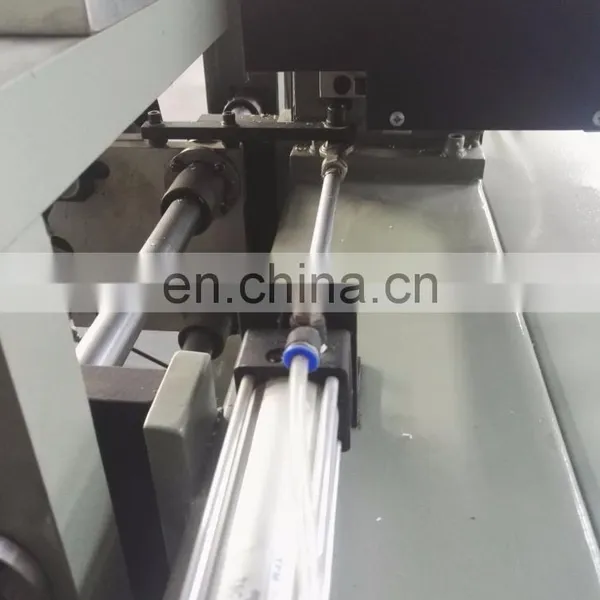

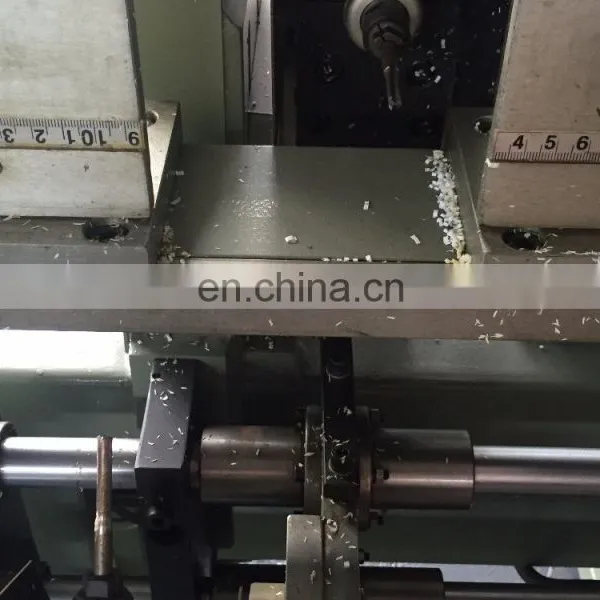

Details Photo
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
