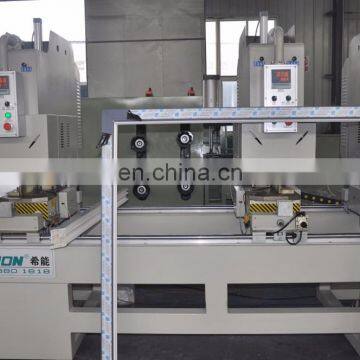

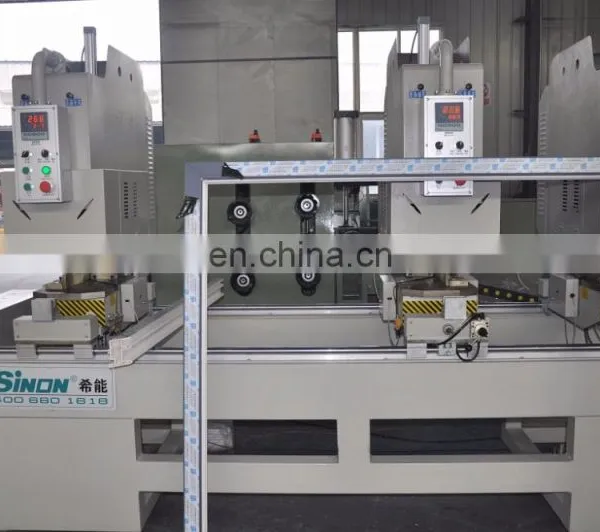

Plastic Door and Window Welding Machine
PVC Double Head Welding Machine
Product Features
1. Plastic Door and Window Welding Machine for welding White PVC profile.

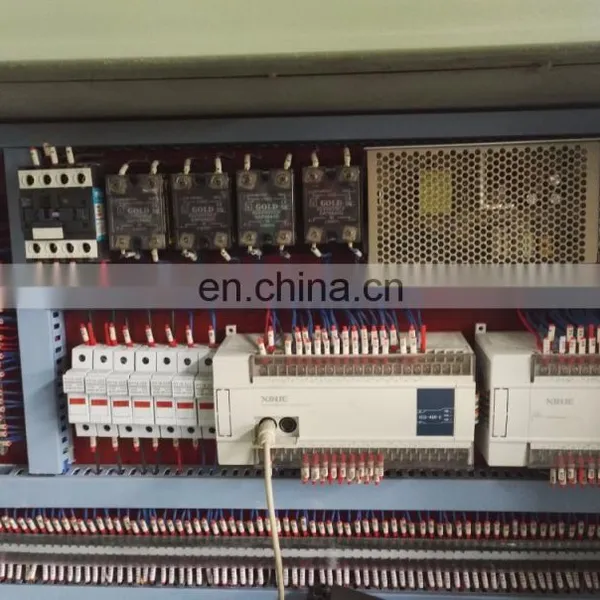

2. Adopt programmable controller (PLC) ensures the machine running more steady and reliable.
3. Adopt second pressing function so as to ensure the welding strength.
4. Professional three layers welding board to meet different height profile welding.
5. The heads can be used individually, combinative or jointly as well as be combined at will.
6. No. 2 head of double head welding machine can horizontal moving so that realized all kinds of welding combination. And also can be used for welding variable angle with the special mold and the angle range from 30°~180°.
Technical Specification | |
Name |
Plastic Door and Window Welding Machine |
Model |
HJ02-3500.2/2A |
Power Supply |
380V 50Hz |
Input Power |
2.5Kw |
Air Pressure |
0.6-0.8MPa |
Air Consumption |
60L/min |
Welding profile height |
20-120mm |
Welding profile width |
0-120mm |
Welding range |
400 -3500mm |
Dimension |
4400*1100*1700mm |
Weight |
900kg |

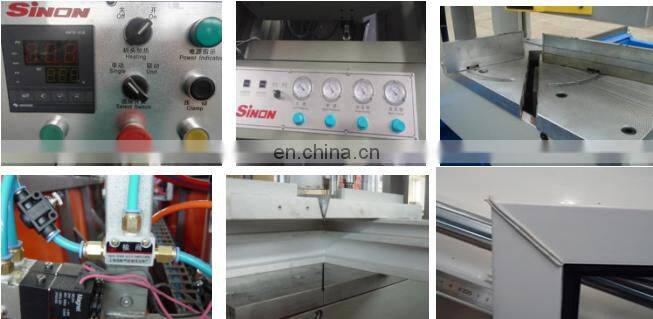

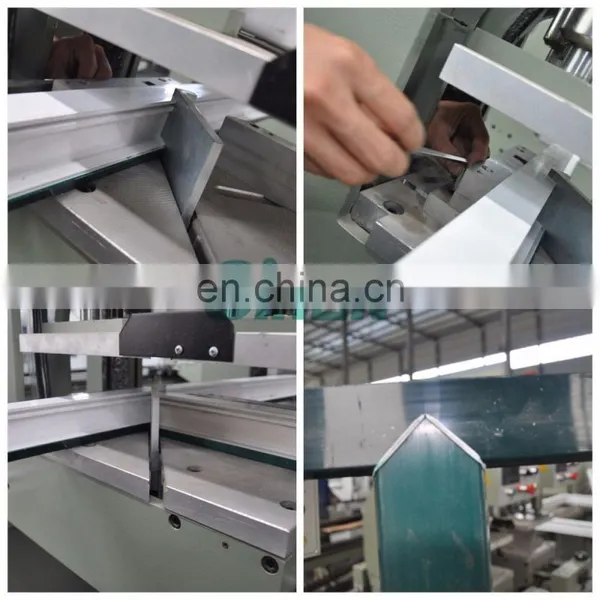

Deatils Display
Professional Service
1. detailed and professional User Manual and operation video
2. one year warranty since B/L issued,lifetime maintenance
3. our engineers could provide service overseas for installation,test and training
4. 24h service online by E-mail, calling ,social media ,video call
5. broken parts can be changed quickly, some parts can sent FREE within one year
6. Return visit for free maintenance.
Jinan SINON CNC Machine Co., LTD
is China's well-known UPVC/Aluminum Window Door equipment manufacturer. is one of the most professional company in the industry. SINON was founded in 2003, has more than 10 years of rich experience. the company production assembly workshop of 5000 square meters, mechanical processing workshop, sheet metal workshop 2000 square meters. As a professional research and development, manufacturing, sales and service team of innovative enterprise, the company's products cover PVC doors and Windows and aluminum doors and Windows equipment two major series of hundreds of products, has more than 20 technical patents,
around 2010, the company was one of the best companies manufacturing UPVC plastic material cutting center, UPVC doors and Windows cleaning welding automatic production line, aluminum cutting center, four head corner combining machine. In 2012 developed china’s first aluminum profile 4-axis CNC milling machine, 2015 developed China's first manufacturing sun room doors and Windows of large cross section of CNC double cutting saw, first developed CNC corner cutting center that can cut more than 10 yards. And apply for the two national invention patent.
Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United States UL safety certification,
Our products are exported to more than 40 countries and regions, Central and Eastern Europe ,Middle East & North Africa,Southeast Asia ,North and South America we warmly welcome all customers come to jinan,come to Sinon company to visit, negotiate and cooperate.
1. Are you a trading company or a factory?
Factory and Trade ( integration)
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,
but customized machines should be more than 25 days.
3. Do you provide equipment operation training after sale?
Yes. We can send professional engineers to the working site for equipment installation, adjustment, and
operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2). Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner combining machine
6).Punching hole machine
5. If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2). Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
6. Can you customize the machine according to my request?
Yes. We have experienced engineers and technical team, can provide personalized service
