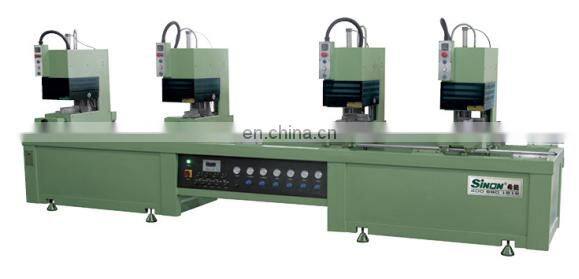

Doors and Windows Making Machine Welding Machine for Welding PVC Window/ PVC WIndow Four Heads Seamless Welder Machine

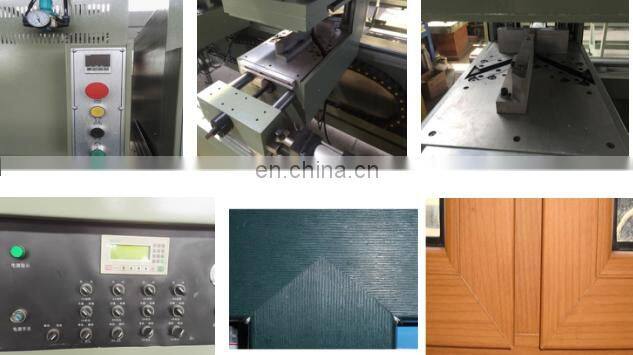

Features:
1. This machine is the processing of plastic doors and windows color profiles and general profile of necessary equipment.
2. White material and can be completed free of any color seamless handover without adjustment by the board.
3. This machine is a patented product has the world's advanced technology, reliable performance, simple operation, user-friendly design features.
4. >The machine uses PC control, pneumatic drive, deputy campaign using the CM non-oil lubricated bearings and linear motion ball bearings, high precision.
5. Four heads can move single, respectively, can be any combination of linkage, through an organic combination of four heads, to be completed form of welding process.
6. After completion of welding welding garnet-time clean-up is complete, and can strictly control the welding gap size, so the color profile after completion of welding, weld surface is very beautiful, upscale, weld strength than the original profile angular intensity.
Technical Specifications
Model |
Four-head |
Three-head |
Two-head |
Input power source |
380V/50Hz |
220V/50Hz |
|
Total power |
4.5Kw |
3.5Kw |
2.5Kw |
Working air pressure |
0.5~0.8MPa |
||
Air consumption |
270L/min |
210L/min |
180 L/min |
Height of welded profile |
20-120mm 20-170mm(optional) |
||
Width of welded profile |
0-120mm |
||
Welded range |
400-4500mm |
400-3500mm |
|
Dimension |
5400×1100×1650mm |
4400*1100*1650mm |
|
Weight |
1900kg |
1500Kg |
1300Kg |
