PVC profile cnc control Double Mitre Cutting Saw/upvc window frame cutting machine/PVC profile cutting machine
Features
- 90°, inside 45, plastic profile. Various angle cutting is available.
- Right head moving manually on the linear bearing rail.
- Micro cutting length adjustment device ensure precision and easy operation.
- With the additional intermediate supporting mechanism of equivalent length, convenient feed and location.
- The linear guiding pair ensures steady processing accuracy.
- Saw blade straight feeding from inside to outside stably and precisely by pneumatic cylinder.
- Carbide Saw blade ensure high cutting surface precision.
- Two hand safety operation
Technical Parameter
Product Name |
PVC profile cnc control Double Mitre Cutting Saw/upvc window frame cutting machine/PVC profile cutting machine |
Air Pressure: |
0.5-0.8MPa |
Air Consumption |
50(L/min) |
Input Voltage |
3N-50Hz 380/220V or As Customer Specification |
Input Power |
4.5(Kw) |
Saw Blade Diameter |
Φ 450 |
Motor Rotary Speed |
2800(r/min) |
Cutting Height |
1200(mm) |
Cutting Width |
120(mm) |
Cutting Length |
45° max 3700mm Min 550mm 90° max 3700mm Min 400mm |
Overall Dimension: |
4500mm*1170mm*1400mm |
Weight: |
1500(kg) |

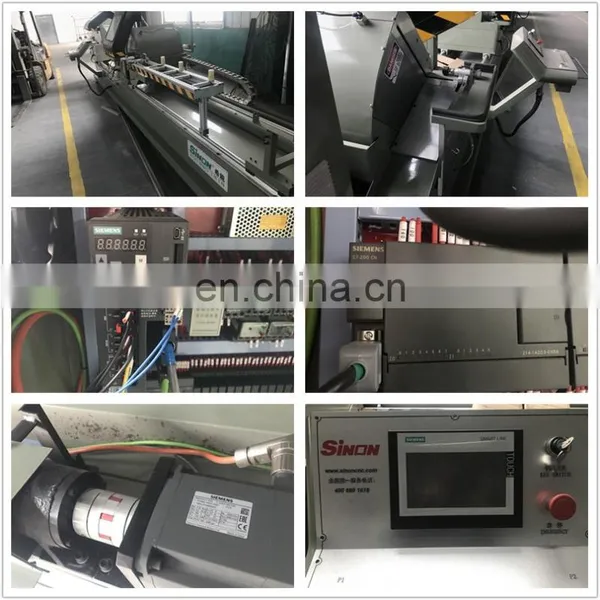

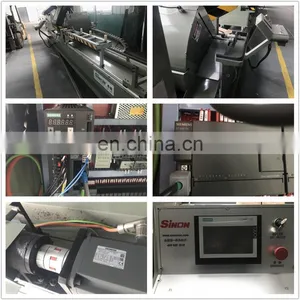

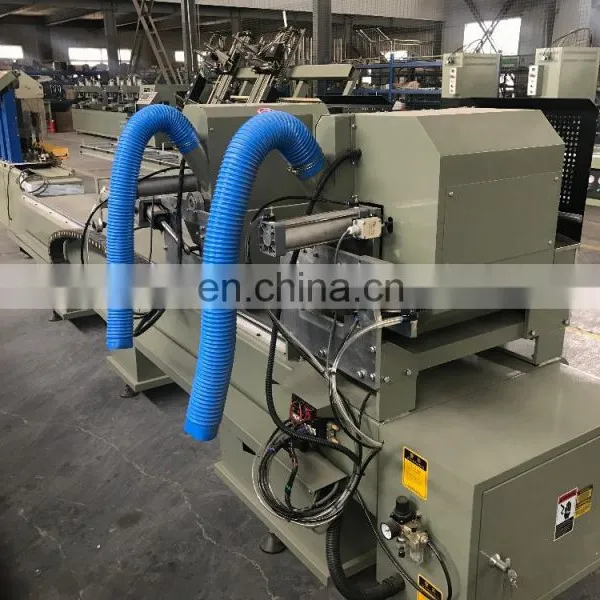

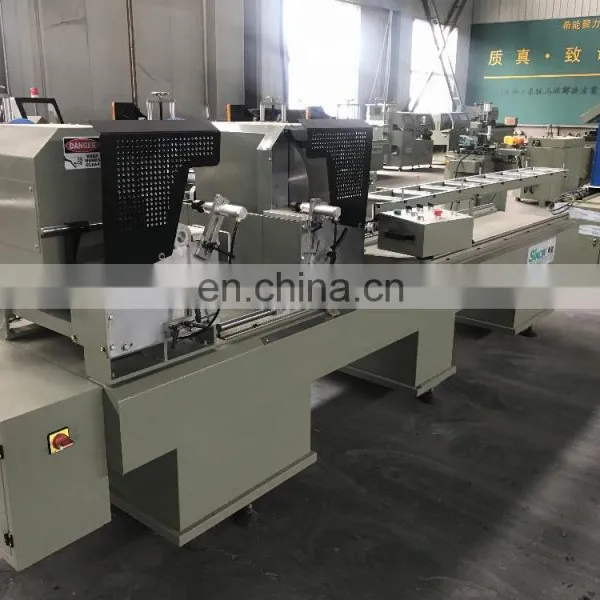

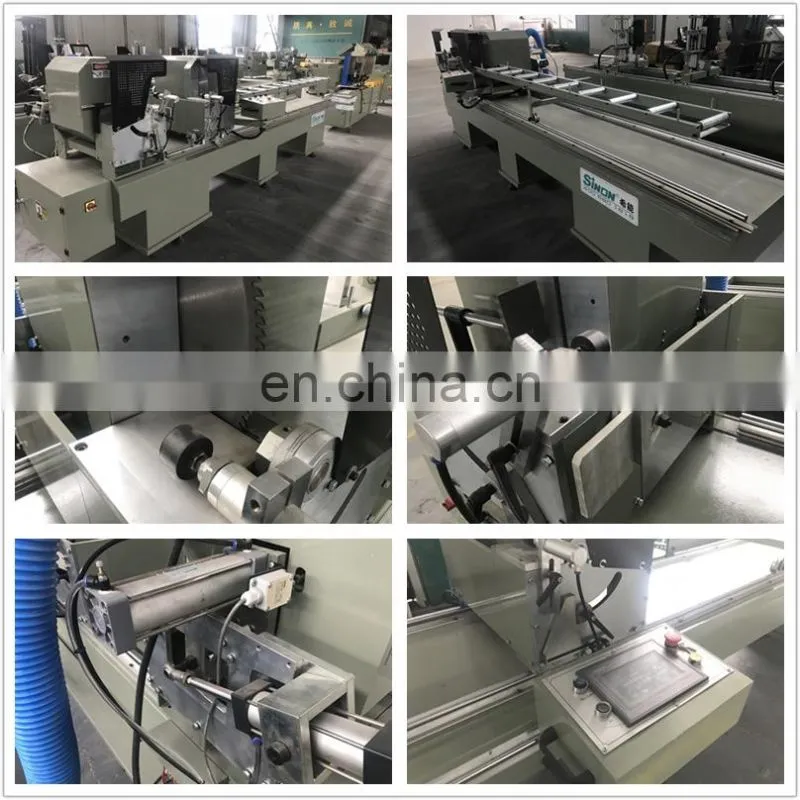

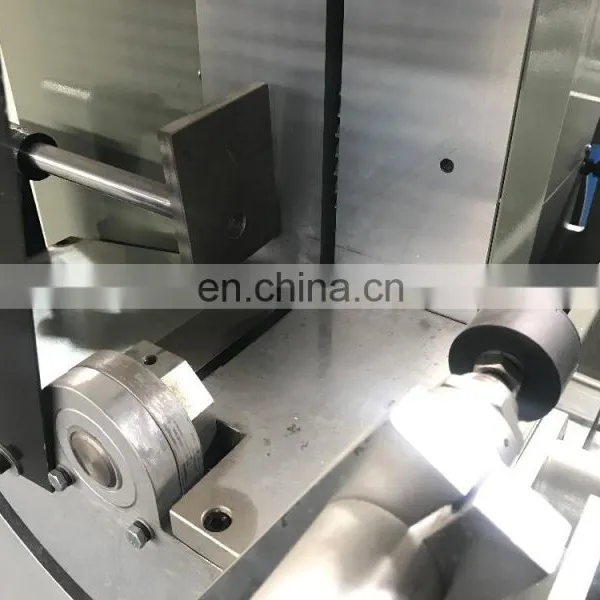

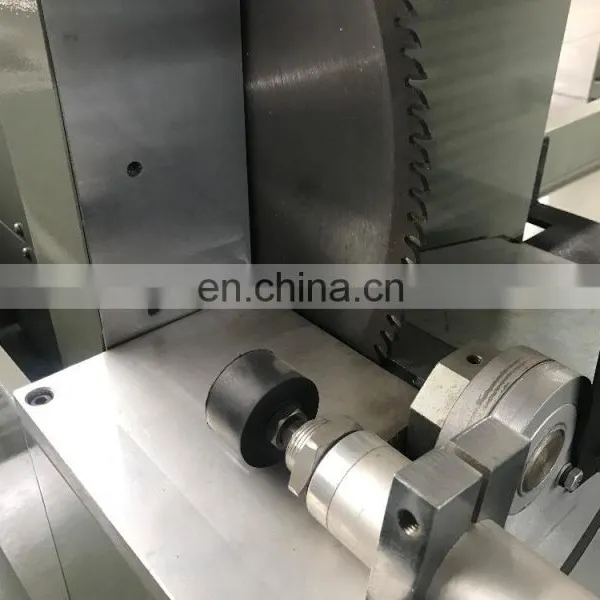

Details Photo
Machine Layout Drawing for 50-80 PVC windows and doors per shift
- Sinon SSJ07-450*3600 (SSJ06-3700)PVC profile cnc control Double Mitre Cutting Saw/upvc window frame cutting machine/PVC profile cutting machine
- Sinon LJVW-60 PVC window V-cutting machine (End milling machine)
- Sinon SJT02-350 PVC window mid-mullion cutting saw
- Sinon SCX03-3*60 Automatic 3-axis water slot milling machine
- Sinon SSK02-100 (LSKC03-120) Lock-hole processing machine
- Sinon HJ02-4500*4/4*A 4-head welding machine
- Sinon JQK04-CNC-120 PVC corner cleaning machine
- Sinon SQJ05-120 PVC window V-corner cleaning machine
- Sinon SYJ03-1800 PVC window glazing bead saw
- Sinon SFX02-160 Sealing cover milling machine
- Sinon SHD01-120 PVC window variable-angle welding machine for arch window
- Sinon SYH1800 PVC arch bending machine for arch window
Related Product
PVC Double Head Cutting Four Head PVC Window PVC Window CNC Corner
Machine Welding Machine Cleaning Machine
Our Quality
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
- From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
- The core components are all internationally renowned brands such as SIEMENS, FESTO
- 15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.
Our Services
-
Pre-sales service:
. Provide free domestic and foreign project analysis
. Free to provide domestic and foreign industry information
. Free design drawings for factory
. Free layout Plan for complete sets of equipment
-
Middle-sales Service:
. Free training ,operation and use
. Free training doors and windows production technology
. Free Training Plant Maintenance engineer
-
After-sales Service:
. 12 months warranty, life-long maintenance, regular maintenance and maintenance
. Provide timely and fast spare parts supply to domestic and abroad
. Provide online "outpatient" to solve technical problems for customers
Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.
Sinon provide professional machine solutions for your project fabrication.
Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.
Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements. The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.
Key Benefits are
· Top quality parts from SIEMENS ,Hiwin, Schneider, OMRON and Festo(SMC).
· In house manufactured components to ensure consistent quality.
· Free on line modem support
· 1 Year warranty on all machinery
· R & D Department for bespoke machinery.
Certifications
Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.
-
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer and trading (integration)
-
Q2: How long is your delivery time?
A2: Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
-
Q3: How does your factory do regarding quality control?
A3: We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.
-
Q4:What will you do if the machines have problems?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.
-
Q5: What is your terms of payment ?
A5: 30% TT deposit,70% balance before shippment . Or L/C or Western Union
-
Q6: How long from Jinan airport to your factory ?
A6: About 10minutes . We could pick you up at the airport or railway station if you need.
Get more information and best price for PVC profile cnc control Double Mitre Cutting Saw/upvc window frame cutting machine/PVC profile cutting machine, Please feel free to contact me by below information
