Auto Water Slot UPVC Window Milling Machine aluminium fabrication machines
- 1500 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
- UPVC window manufacturing machine Single Head Variable Angle Welding Machine
- UPVC PVC welder single head corner window welding machine
- aluminum and upvc cutting machine windows and doors processing machine
- pvc welding machine manual for upvc window door processing
- High quality CNC double head mitre saw cutting machine for aluminum window and door
- PVC window single head welding machine for arch windows
Product Details
Brand Name: | Sinon | Model Number: | SCXZ2-60*120*3000 |
Packaging Details
wooden case or according to customers' demand
Product Description
Auto Water Slot UPVC Window Milling Machine aluminium fabrication machines
Product Features
1. Professional use in milling the water slot and the balanced holes of air pressure of win-door in PVC profile.
2. Adopt the modularization structure design, there are six milling heads which can be freely selected working in individually or combinatively, is easy to operate.
3. It can mill completely of the water slots and balanced holes for a workpiece at one time. And ensure the precision of size for position which milled and slotted.
4. Feeding guide rail adopt linear guide rail that made in Taiwan, so that ensure the milling precision and steady performance, and improve the milling effect greatly.
Technical Specifications
Power supply | 380V 50Hz |
Total power for motor | 4.8KW |
Motor's rotation speed | 25000r/min |
Air working pressure | 0.5-0.8MPa |
Diameter of milling cutter | 5*50mm/5*75mm |
Cutter feeding speed | 0-3m/min |
Max. milling depth | 30mm |
Milling Width | 4-5mm |
Milling length | 0-60mm |
Weight | 700kg |

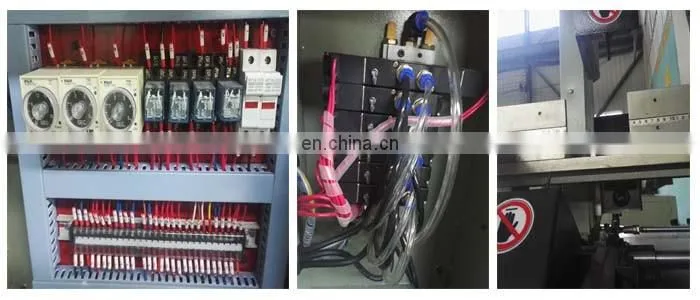

Details display
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
