Cnc Upvc Window Making Machine Used for Window Cleaning
US$ 4,426 - 5,753
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SINON
Model Number:
QK04-CNC-120
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdoao shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap and Fine Window Making Machine Used for Upvc Pvc Window WeldingUS$ 1,818 - 2,363.4MOQ: 1 Set -
High Quality and Low Overhead End Milling Machine for Upvc Windows and DoorUS$ 991 - 1,171MOQ: 1 Set
-
PVC Water Slot Grooves Milling Machine PVC Window MachineUS$ 4,230 - 5,200MOQ: 1 Piece
-
Four-head Welding Machine for PVC Window Machine to Make Windows of PVCUS$ 8,462 - 14,300MOQ: 1 Set
-
UPVC PVC Profiles Making Machine Glazing Bead Saw for Window and DoorUS$ 762 - 936MOQ: 1 Set
Brand Name
SINON
Model Number
QK04-CNC-120

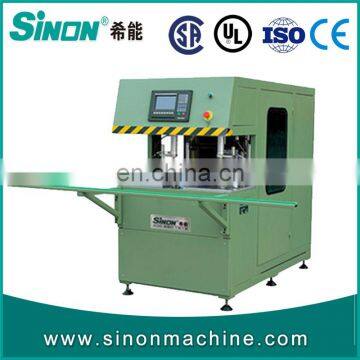

PVC window CNC corner cleaning machine
Features:
- Professional used in cleaning the welding tumor in 90°corner of external for window frame and sash, the upper and lower of profile.
- It has multi-function such as vertical milling, saw milling and broaching and so on.
- Two-axis CNC cleaning the corner of processing flow controlling make the operation is easy.
- Adopts industry grade computer system, closed-loop controlling, ensures high precision.
- Interface in figures and diagrams which can display directly the moving trace of the cutter.
- It is simple, direct-viewing with the demonstrating program function, can set two-dimension processing programming by CNC controller
- Equipped with USB connection, may connect with external store..
Optional:
- 5 cutter model, can cleaning groove of rubber strip
Technical Specifications
Input power source |
380V/50Hz |
Total power |
2.0Kw |
Working air pressure |
0.5~0.8MPa |
Air consumption |
200L/min |
Diameter of milling cutter |
200mm |
Principal axis rotate speed |
2800r/min |
Processing profile height |
30~120mm |
Processing profile width |
30~110mm |
Dimension |
2000×1930×1500mm |
Weight |
640kg |
