Factory Supply Low Price Lock Hole Groove Processing Machine for Aluminum Windows Machines
US$ 1,600 - 2,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
SINON
Model Number:
SSK02-100
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdoao shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Water Slot Milling Machine For PVC Windows and Doors ProfileUS$ 1,586 - 1,950MOQ: 1 Set -
Automatic Pvc Window Welding Machine Parker Window Door MachineUS$ 11,635 - 14,300MOQ: 1 Set
-
High Frequency Pvc Upvc Plastic Single Head Window Welding MachineUS$ 2,370 - 3,536MOQ: 1 Set
-
High Quality PVC Window Arch Bending Machine With EfficientUS$ 1,900 - 2,900MOQ: 1 Set
-
Aluminium Door and Window Making Machine Door Lock Drilling MachineUS$ 1,394 - 1,695MOQ: 1 Set
Brand Name
SINON
Model Number
SSK02-100

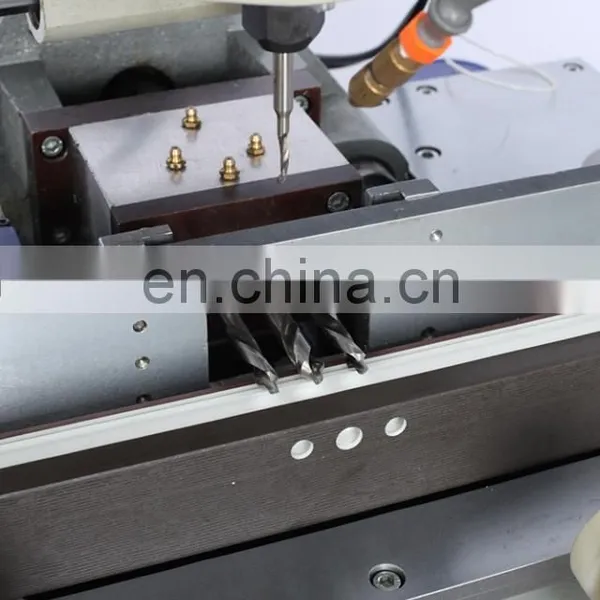

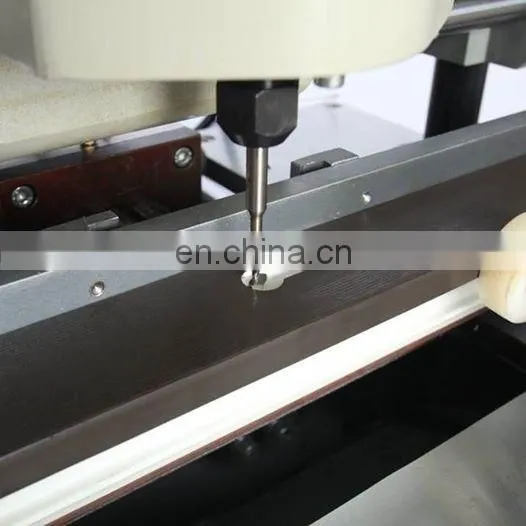

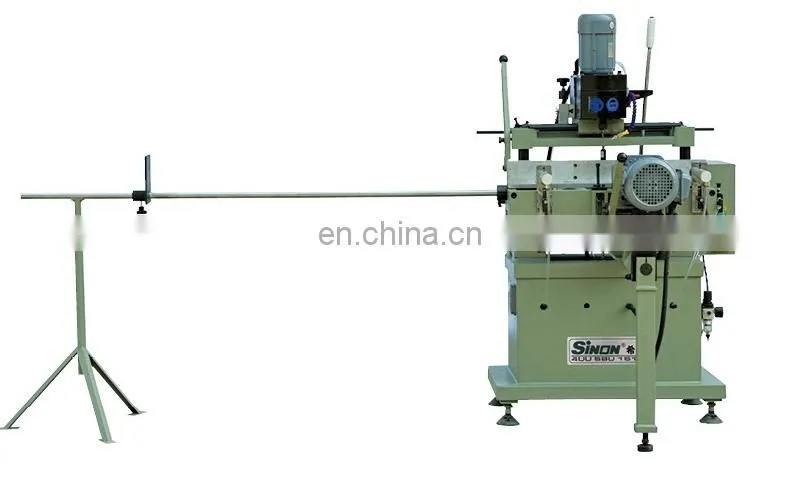

Lock-hole Groove Processing Machine / PVC Windows Machines
- Used for processing handles in three holes and the slots which for installing the hardware at the PVC and Aluminium profile.
- The lock hole drill system opposite the operator, easy operation.
- Routing to stops or universal template in 1:1 ratio
- Handle wheel for easy adjusting milling height. Friendly using design
- Horizontal triple drill and vertical copy router with special cutout working table to realize
- one time finishing.
Technical Specifications
Operation Air Pressure |
0.5~0.8(MPa) |
Air Consumption |
30L/min |
Input Voltage |
380V/50Hz or Customer specification |
Main-Shaft Revolution |
12000(r/min) |
Input Power |
2.25(kW)) |
Cutter Diameter |
φ5φ8(mm) |
Copy Milling Range |
90×290(mm) |
Overall Dimension |
1000×1130×1500(mm) |
Machine Weight |
300(kg |
