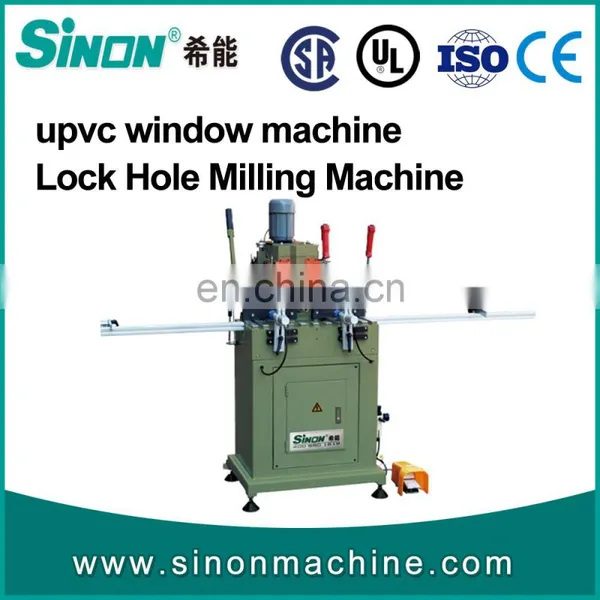

High quality plastic window Lock-hole groove processing machine
Features:

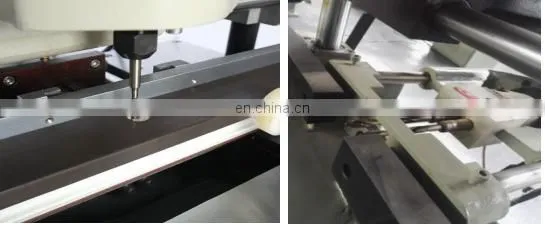

1. The lock hole drill system opposite the operator, easy operation.
2. Hydro-pneumatic actuator cylinder feeding device of the drill system to reduce labor intensity.
3.Auto milling handle hole, Euro groove slot and various hole or slot milling for processing the PVC window profile.
4. Horizontal triple drill and vertical copy router with special cutout working table to realize one time finishing.
5. Routing to stops or universal template in 1:1 ratio.
6. Pneumatic horizontal clamping.
7. Handle wheel for easy adjusting milling height. Friendly using design.
8. Equipped with standard hole template. Plain template is standard equipped or specific designed.
9.Simple self-Centering bar.
Technical Specifications
Operation Air Pressure |
0.5~0.8(MPa) |
Air Consumption |
30L/min |
Input Voltage |
380V/50Hz or Customer specification |
Main-Shaft Revolution |
12000(r/min) |
Input Power |
2.25(kW)) |
Cutter Diameter |
φ5φ8(mm) |
Copy Milling Range |
90×290(mm) |
Overall Dimension |
1000×1130×1500(mm) |
Machine Weight |
300(kg |
