Glazing Bead Cutting Saw for upvc window machine
- 100 Set / Sets per Month
- qingdoao shanghai
- T/T Credit Card
You May Like
-
PVC Windows Doors Three Axis Water Slot Milling Machine
-
High quality plastic window Lock-hole groove processing machine
-
PVC window processing machine corner cleaning machine
-
upvc windows Sealing Cover Milling Machine
-
New Condition and Normal or Not CNC aluminum PVC UPVC profiles single head Copy Router Machine
-
PVC window Arch Bending Machine
Product Details
Brand Name | SINON | Model Number | SYJ03-1800 |
Standard wood packaging
Product Description

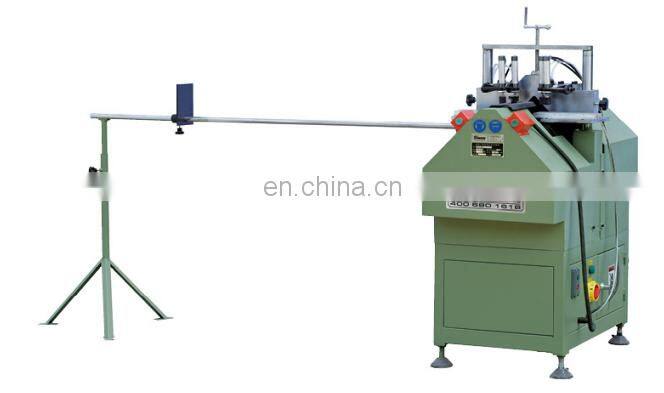

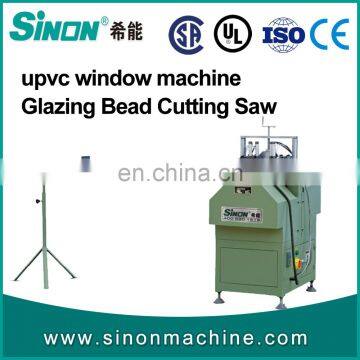

Glazing Bead Cutting Saw for upvc window machine
Features:
1. Automatic 45 degree cutting u-PVC glazing bead profile.
2. Two glazing bead cutting in one time.
3. Automatic saw blade feeding by pneumatic cylinder and moving on precise rod.
4. 4 pieces saw blade ensure precise cutting, Double cutting one each end to mill the hook foot.

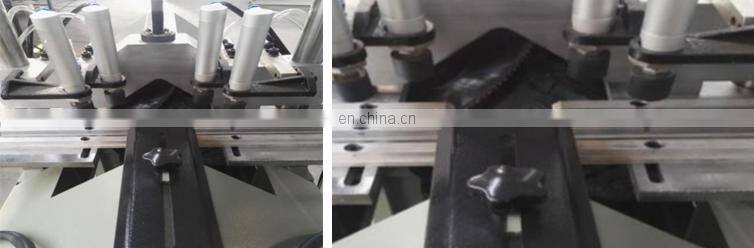

5. Vertical clamping device and special designed cutting jig ensure stable positioning.
6. Two hand safety operation
7. Friendly using measuring rod.
Technical Specifications
Air Pressure | 0.5~0.8(MPa) |
Air Consumption | 20(L/min) |
Input Voltage | 380V 50HZ or as customer specification |
Input Power | 1.1(Kw) |
Cutting Height | 33(mm) |
Cutting Width | 100(mm) |
Cutting Length | 320-1800(mm) |
Overall Dimension | 1500*750*1500 mm For GBS1800; |
Weight | 250(kg) |
