Details

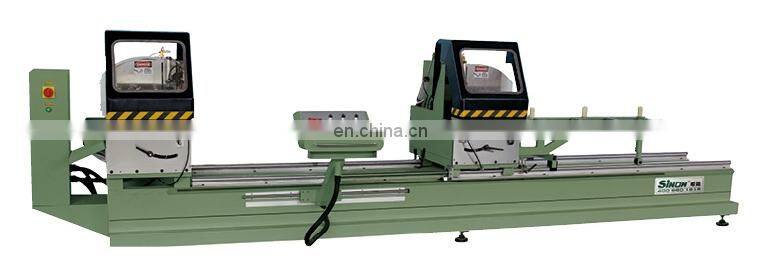

Used for the profile cutting of aluminum windows and doors,curtain wall and industrial aluminum.

• Adopts industry grade computer system, closed-loop controlled, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.1mm.
• Adopt Push-button operation screen, and with USB interface, it can realize the data interchange via by input external memorizer.
• Optimized function: optimizing to cut according to the working list.
• Tabulation cutting function: several kinds of profiles can be selected quickly.
• Continuous feeding: auto feeding profile at 90°cutting.
• Angle automatic indexing: -45°, 90°.
• High precision linear guiding pair ensured steady and long-term processing accuracy.
• Adopt imported air-hydraulic conversion device, so that ensure running stably.
• Stability high precision machine body, the design of machine body conform to the aesthetic point and human body engineering principle.
• Auto-opening shield with rubber seal makes the operator more safety.
• the middle profile supporter and movable carrier make the loading convenient. it’s compact structure follows the operation custom in better way.
• Equipped with phase sequence protection device, so as to protect the machine once shut off or misconnect the phase.

Technical Specifications

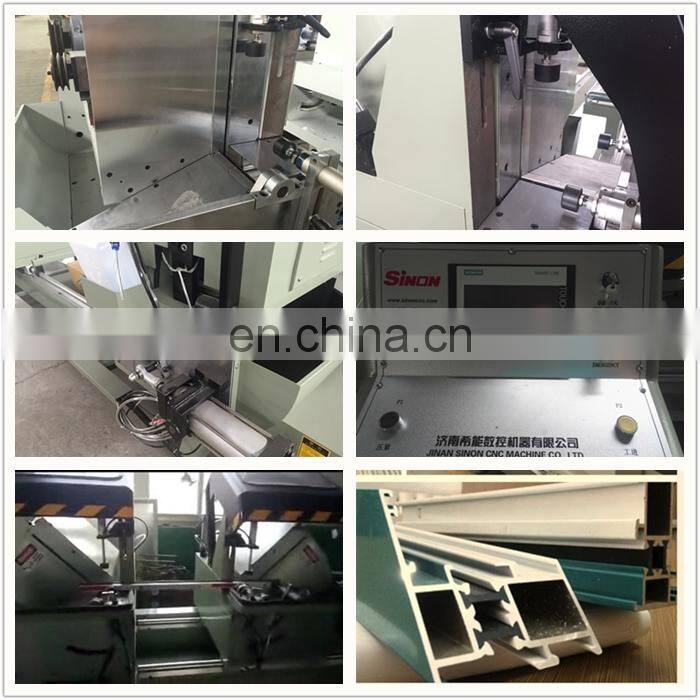

Details Photo

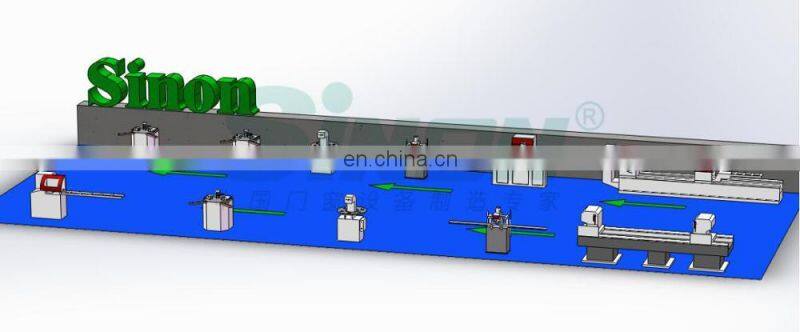

Machine Layout  Drawing for 30-50 Aluminum windows and doors per shift

1. Sinon LJZ2B-CNC-500*4200 window making machine window profiles cutting saw machine (LJZ2B-CNS-500*4200)
2. Sinon SSJ06-3700 Double head cutting saw
3. Sinon LSFX-100 Cory router for aluminium window (SX01-100)   2 set
4. Sinon DX06-250 End milling machine for aluminium profile (DX06A-250)   1 set
5. Sinon LJJ02A-500 Coner connector automatic cutting saw (LJJ01-450)    1 set
6. Sinon LYJ-75 Punching machine for aluminium window (LY6-50)     2 set
7. Sinon LZJ03-130 Corner crimping machine for aluminium window    3 set

Related Product

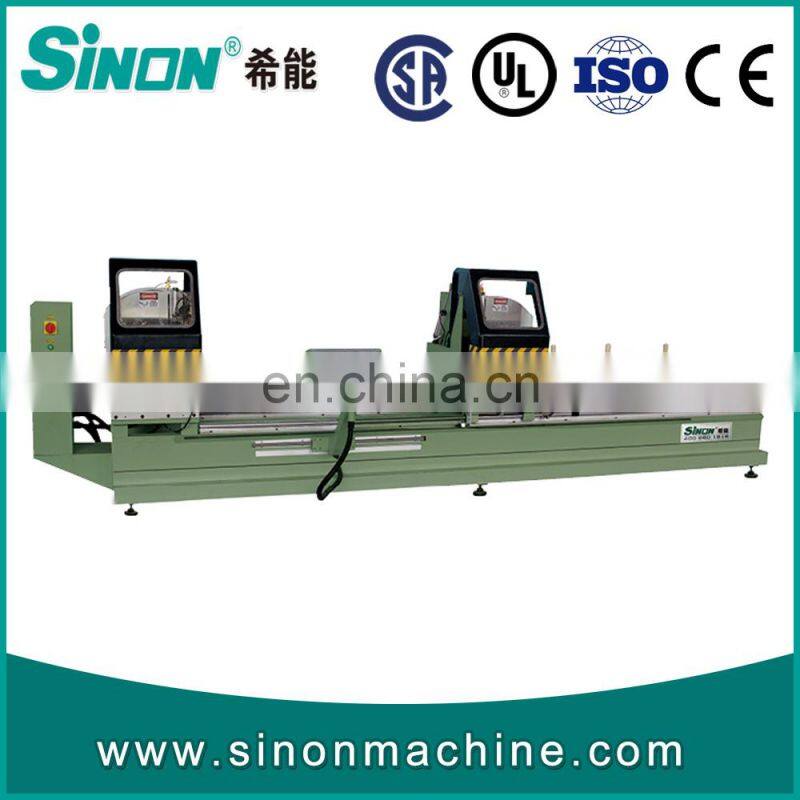

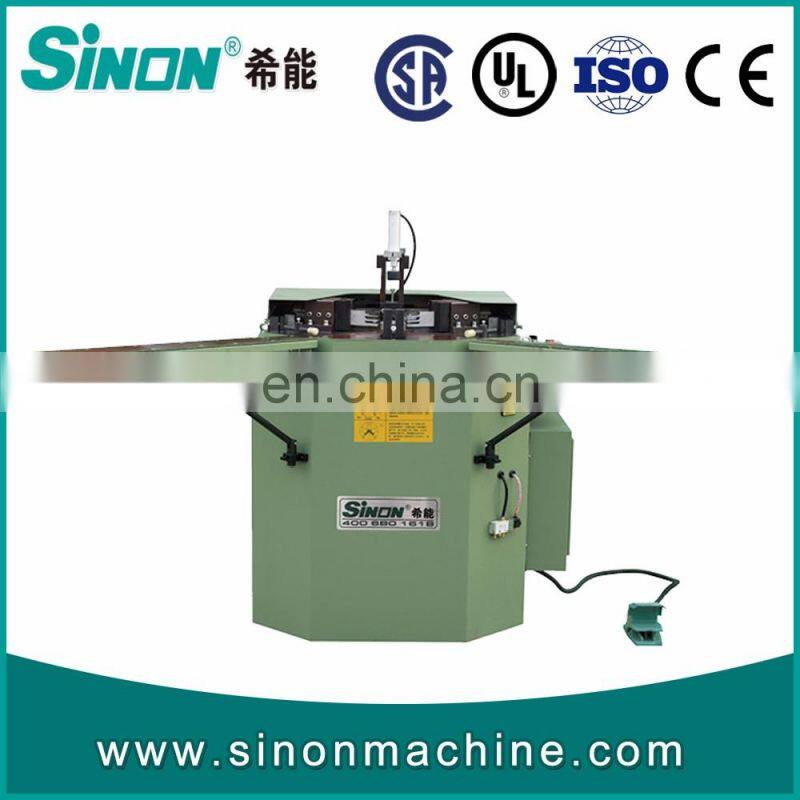

     CNC Double Head Precision          Single Head Copy Routing            Aluminum Window Corner                  Cutting Machine                              Macchine                            Crimping Machine

Our Quality

        Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.

        Our customers  constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.

• From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.

• The core components are all internationally renowned brands such as SIEMENS, FESTO


• 15 years experiences for machine manufacturing.That is why Sinon focuses on a high level of management quality and efficient cooperation between well trained and responsible-minded employees.

Our Services

• Pre-sales service:
  . Provide free domestic and foreign project analysis
  . Free to provide domestic and foreign industry information
  . Free design drawings for factory
  . Free layout Plan for complete sets of equipment

• Middle-sales Service:
  . Free training ,operation and use
  . Free training doors and windows production technology
  . Free Training Plant Maintenance engineer

• After-sales Service:
  . 12 months warranty, life-long maintenance, regular maintenance and maintenance
  . Provide timely and fast spare parts supply to domestic and abroad
  . Provide online "outpatient" to solve technical problems for customers

Sinon produce high quality machines, also pay attention to package. The machines will be packed with steel pallet and standard export wooden case.

Sinon provide professional machine solutions for your project fabrication.

Sinon, one of the leading companies specializing in the field of window machines required for manufacturing Aluminium and uPVC windows and doors in China.

Using the newest technologies that are discovered for the area of window and door production, Sinon constantly improves and updates the window and door manufacturing equipment and window machines designs according to market requirements. The window machines assortment of the company includes various models of upvc window machines and aluminium window machines especially built for a smooth and reliable window manufacturing experience.

Key Benefits are

·         Top quality parts from SIEMENS ,Hiwin, Schneider, OMRON and Festo(SMC).

·         In house manufactured components to ensure consistent quality.

·         Free on line modem support

·         1 Year warranty on all machinery

·         R & D Department for bespoke machinery.

Certifications

Sinon have exported to more than 40 countries and areas, like USA, UK, Australia, South Korea, India, Pakistan, Egypt, etc. And every year our engineers go to many countries to do customer service.

• Q1: Are you trading company or manufacturer ?
  A1: We are manufacturer and trading (integration)

• Q2: How long is your delivery time?
  A2: Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.

• Q3: How does your factory do regarding quality control?
  A3: We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.

• Q4:What will you do if the machines have problems?
  A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.

• Q5: What is your terms of payment ?
  A5: 30% TT deposit,70% balance before shippment . Or L/C or Western Union

• Q6: How long from Jinan airport to your factory ?
  A6: About 10minutes . We could pick you up at the airport or railway station if you need.

More information about window making machine window profiles cutting saw machine, Please feel free to contact me by below information

• What's app / Mobile / Wechat: +86 186 5316 1193
• Skype: sinonmachine
• Or leave message
