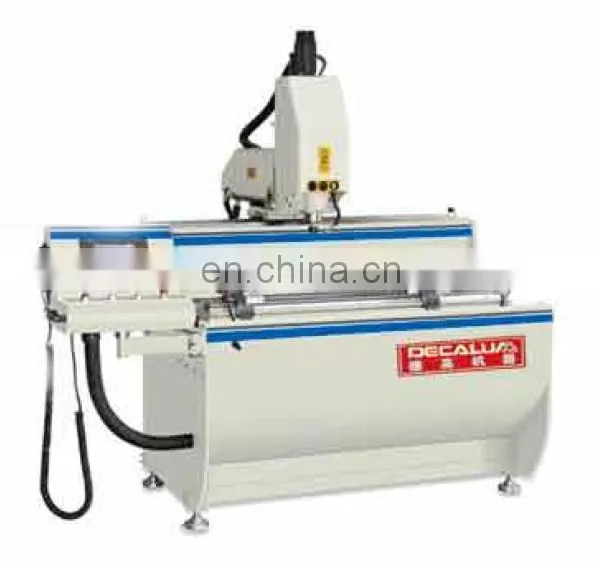

Small Aluminum Facade CNC Machining Center
Specification:
1. It is used for milling, slotting, processing round hole and special-shaped hole, any holes.
2. CNC control systems are from Taiwan
3. Electric spindle with high precision, good safety and high reliability.
4. X axis adopt high precision oblique gear and rack. Y, Z axis adopts the high precision ball screw drive, stable and high precision.
5. Automatically convert processing G code by programming software. simple operation, high efficiency, low labor intensity.
6. Worktable can be rotate in 3 angles :180,−90°,+90°. It can processing three sides of the profile , when processing irregularly-shaped hole, the worktable will turn over with high efficiency and high precision.
7. Auto read out CAD file (from computer output CAD then transfer to NC file )
Technical Parameters:
Power supply |
Made to order |
Hydraulic gearbox motor power |
3KW |
Rotary speed |
MAX.18000r/min |
Operation air pressure |
0.5~0.8Mpa |
Drilling blade specification |
ER25 x φ8 |
X axis stroke |
1200mm |
Y axis stroke |
300mm |
Z axis stroke |
280mm |
Max. Processing profile section size |
100×140mm |
Dimension |
2200×1500×1950mm(LxWxH) |
Weight |
610kg |
pany managment:
Establised in 2006, We have a more than 100 employees work team , and 20 people in technology development team .
duct capacity:
30sets per month
3.Quality control :
ISO9001/ CE
4.Design and Development:
5.Exhibition :India Guangzhou Shanghai
6.Export Market: India, Malaysia, Zimbabwe, Vietnam
1.sample service: engineer available overseas
2. Customized service: Free industrial information , free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall productline.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
| Payment term | TT or L/C |
| Trade term | FOB Qingdao |
| OEM | Yes |
| Small order | accept |
| Divertime | within one week |
