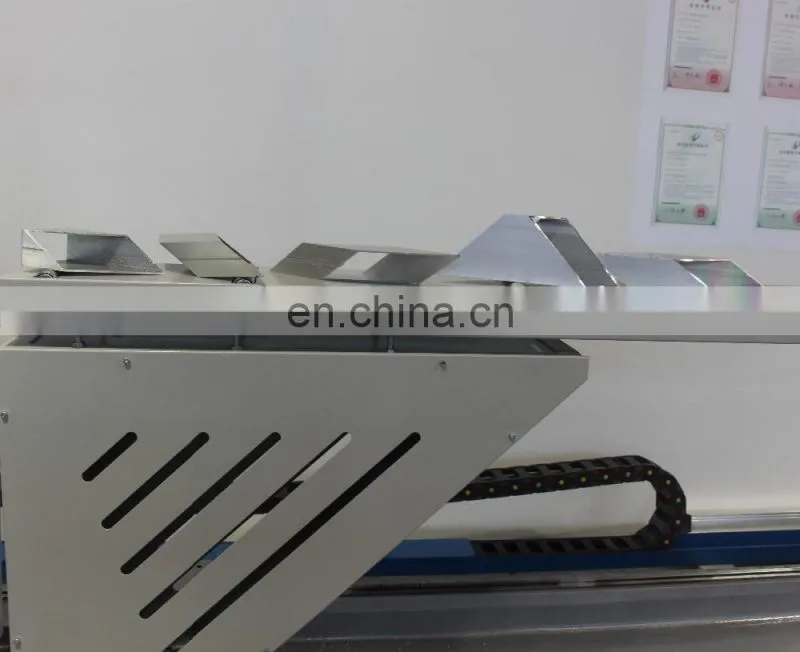

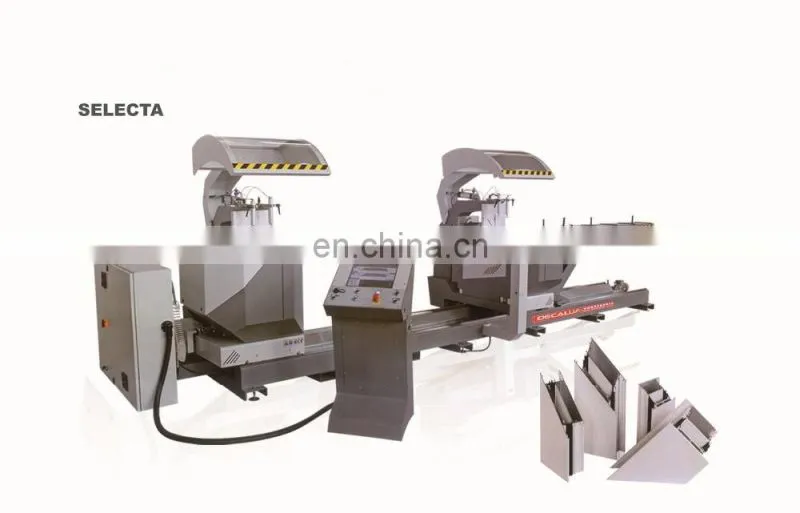

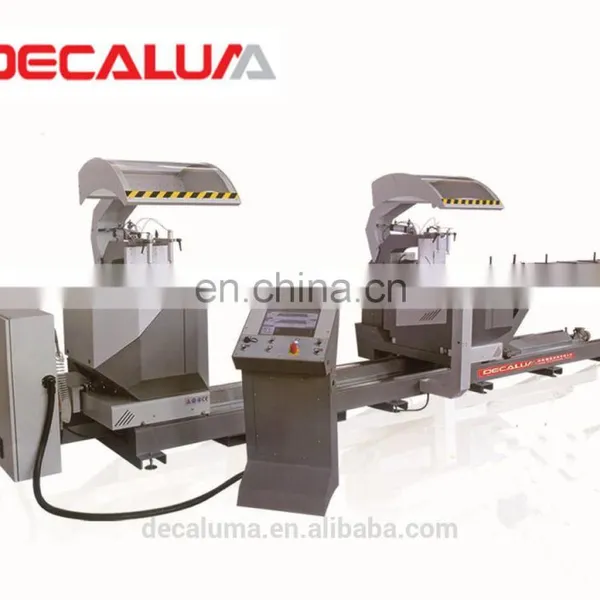

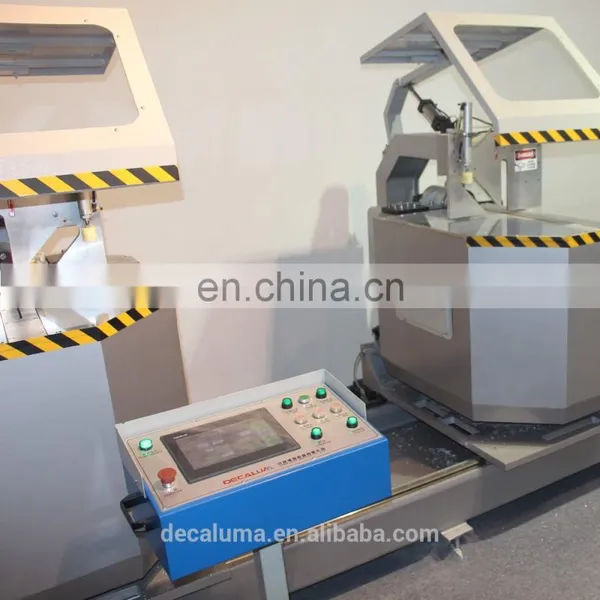

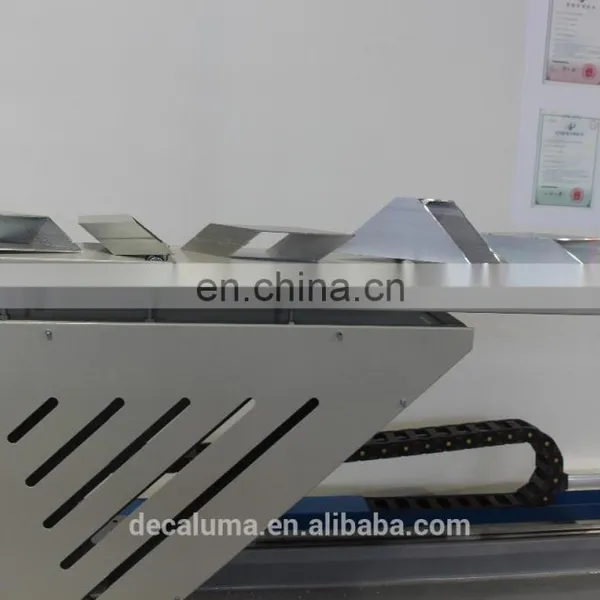

5 Axis CNC Double Cutting Saw for Aluminum Curtain Wall
Machine Function:
Used for industrial aluminum profiles and sunshine room of curtain wall cutting.
1. High quality double head saw balde with swing feeding.
2. Two saw balde rotated and tilted , two saw balde automatically positioning between 22.5°-90°-140°, with digital dispaly, and machine head can positioned automatically inward between 90°-45°
3. Saw blade is 600mm, can cut large-section profiles.

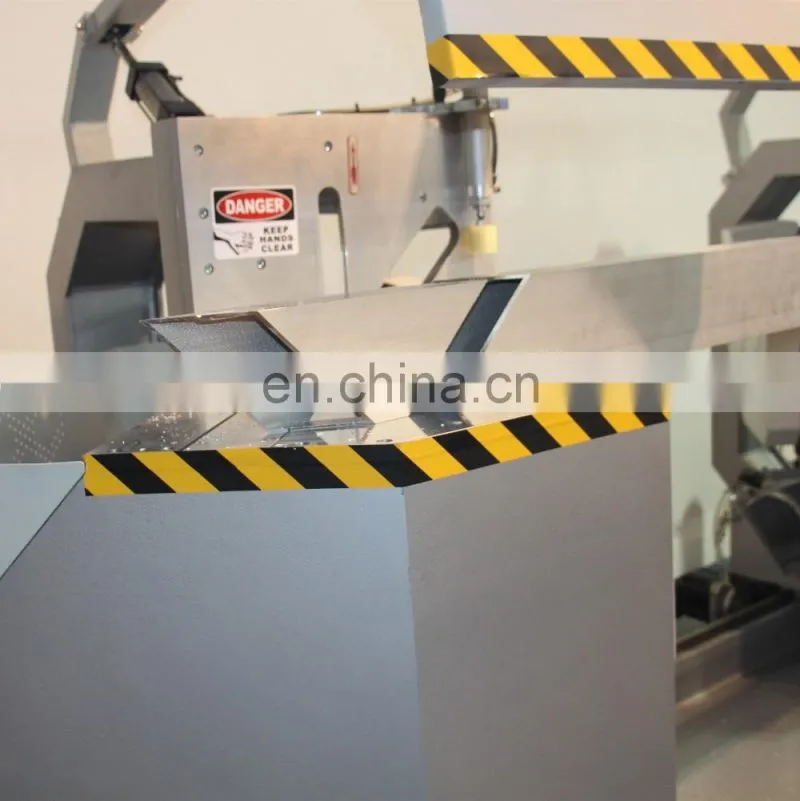

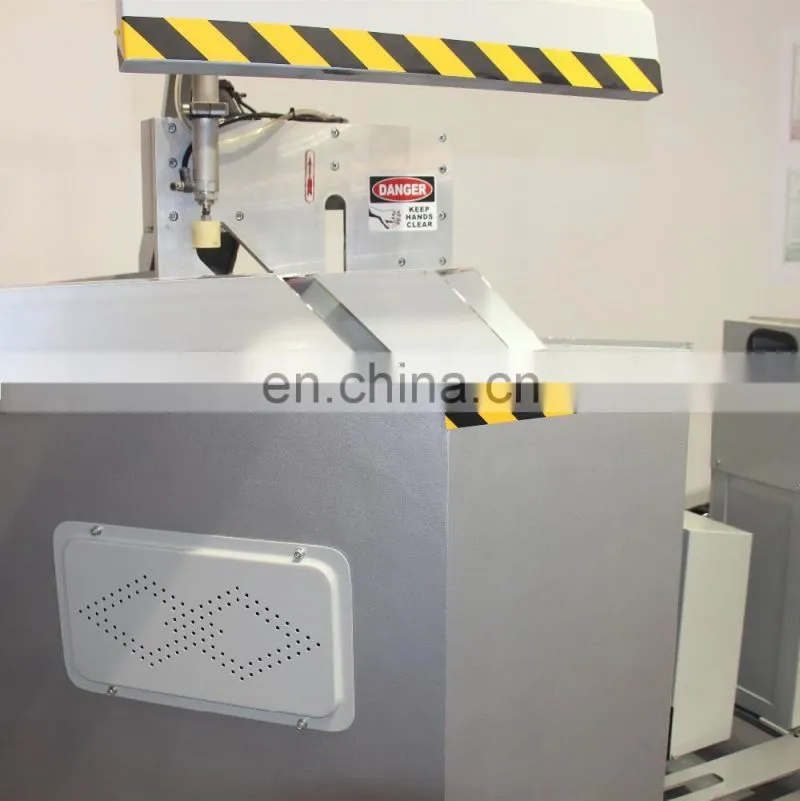

4. Its safety cover can automatically lifted.

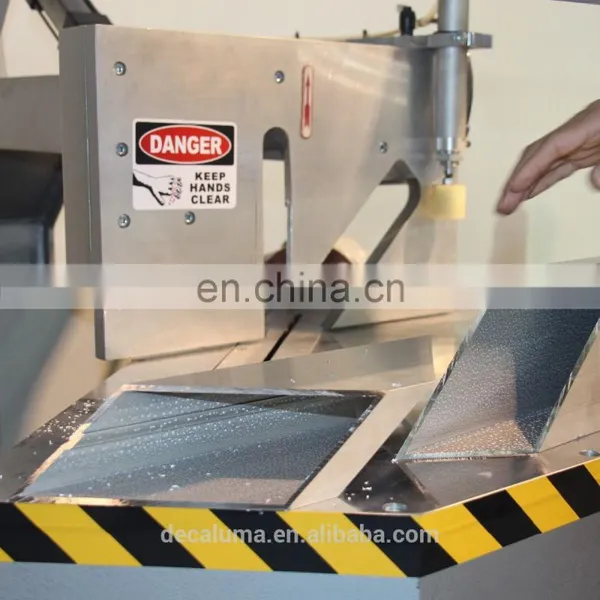

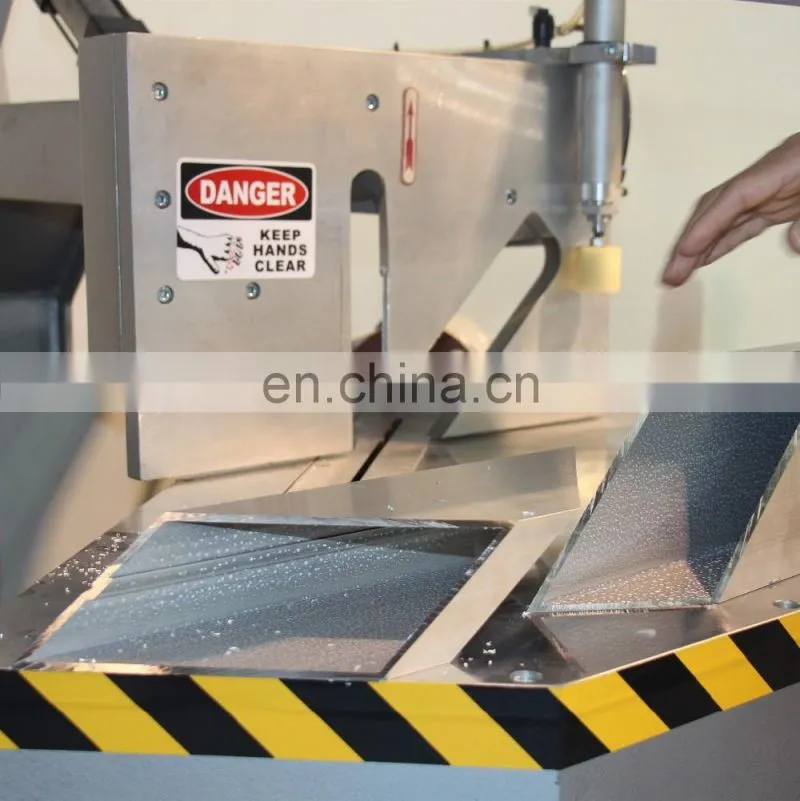

5. With vertical and horizontal penumatic clamping.

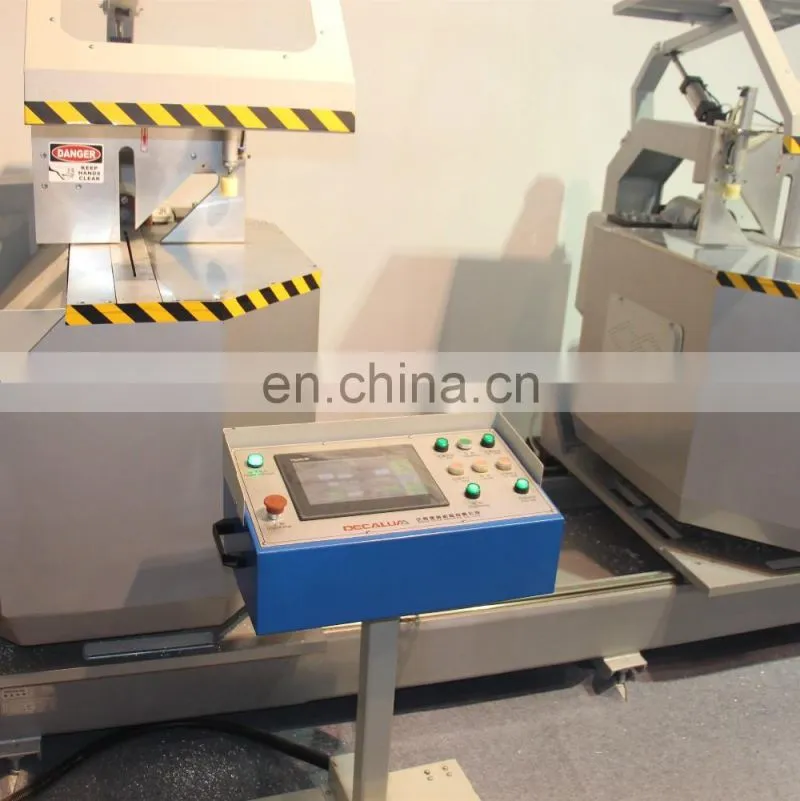

6. Human-machine interface adopts 17-inch touch screen, with RJ45-USB port to connect internet and upper computer.
7. Optionals: Dust collector, roller conveyor, industrial vacuum, Micro-lubricating system
Technical parameter:
Power supply |
380V 50Hz |
Power |
10.2 KW(2*3Kw ,0.9KW*3,1.5KW) |
Working pressure |
0.5~0.8MPa |
Air consumption |
20L/min |
Cutting length |
620-5000mm |
Machine head rotation angle |
90°~ -135° |
Diameter of saw balde |
600mm |
Saw blade rotation angle |
90°~ -45° |
Saw blade rotary speed |
2800rmp |
Dimension |
7650mm×1500mm×1700mm |
Weight |
3200KG |
1.Sample service:
Our engineer is available to travel abroad, help the installation, maintenance and training staff.
2. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
3.After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
We support Trade Assurance on Alibaba, which is a free payment protection service for buyer regarding product quality and transaction security.

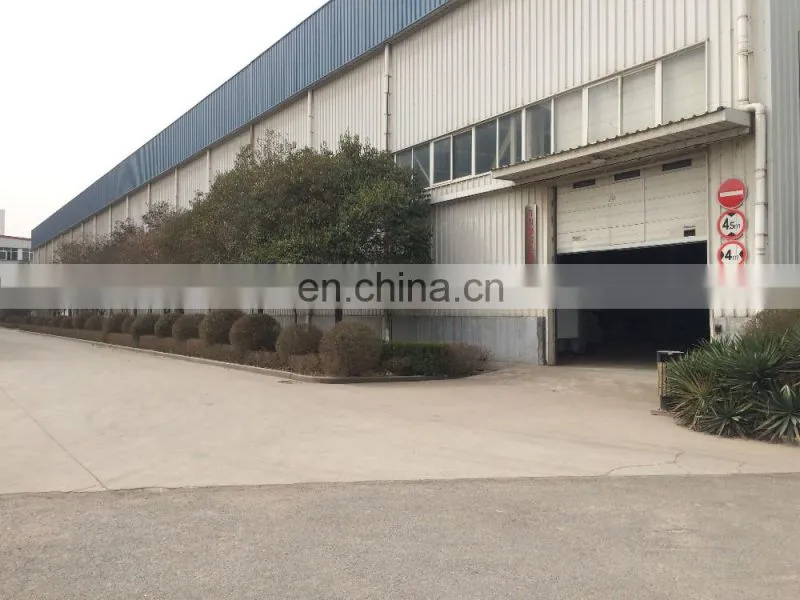

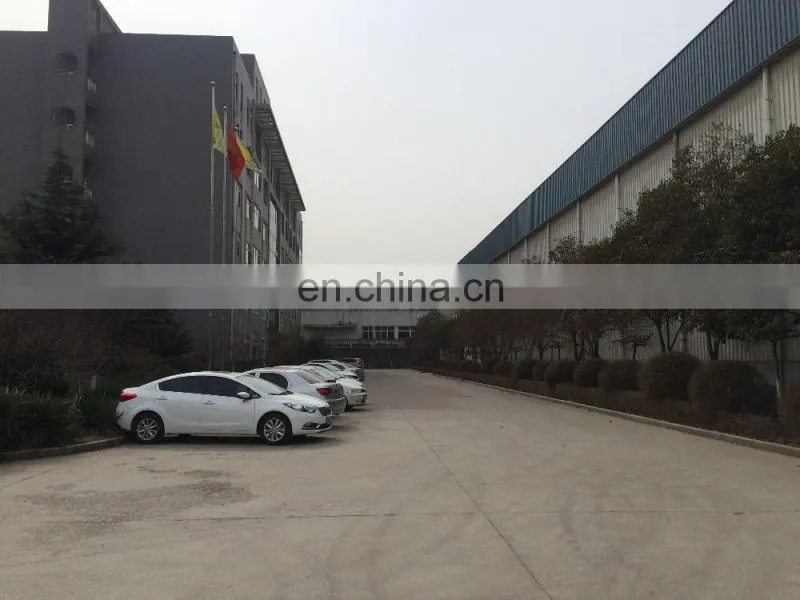

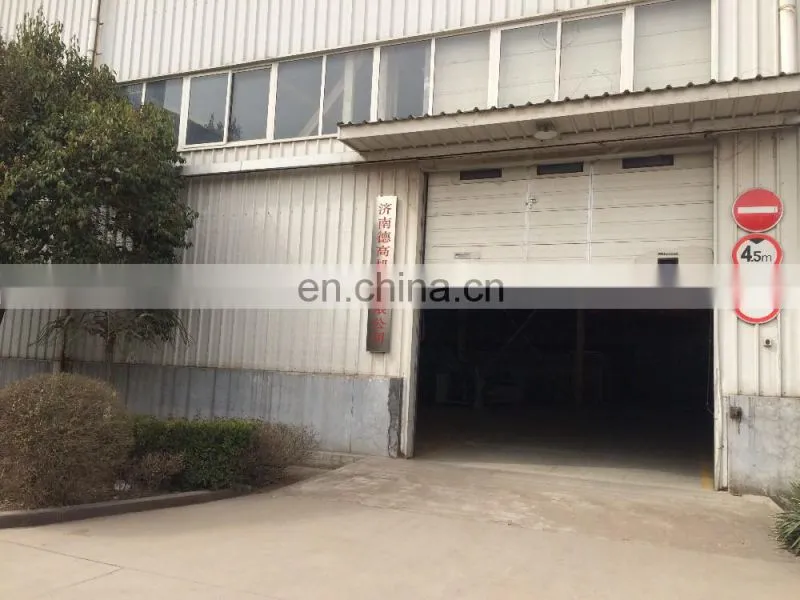

Jinan Dega machine co., Ltd.(DECALUMA) is located in High-tech zone, jinan, shandong. We established in 2006 with registered capital 3 millions RMB. The company has more than 100 employees with more than 20 people in technology development team.
We engaged in research and producing and sales of high quality aluminum profile processing machine and windows and door processing machine, and we have export and import right.
Certificate Display
1. What you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
2. what services can provide in your company ?
1) one year guarantee
2) free adjustment
3) free training to operation and maintenance workers.
4) free industrial information
5) free investment analysis for windows, doors and curtain wall project.
6) free layout design for windows,doors and curtain wall production lines.
7) provide follow-up service, regular maintenance and lifetime service for our machines sold.
8) provide technical support including pressure design and caculation for window and curtain wall companies.
9) provide quick supply of spare parts for window and curtain wall companies.
3. Quick detail of our company.
Company Name |
JINAN DEGA MACHINE CO.,LTD. |
Year established |
2006 |
Address |
No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type |
Manufacturer |
|
Product range |
CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage |
Using advanced solidworks design platform |
Management certificate |
ISO9001,national patent |
Fair we attend |
Shanghai and Beijing international windows show |
E-catalog |
available |
MOQ |
1 set |
Payment terms |
TT or L/C |
Shipping port |
Qingdao port |
