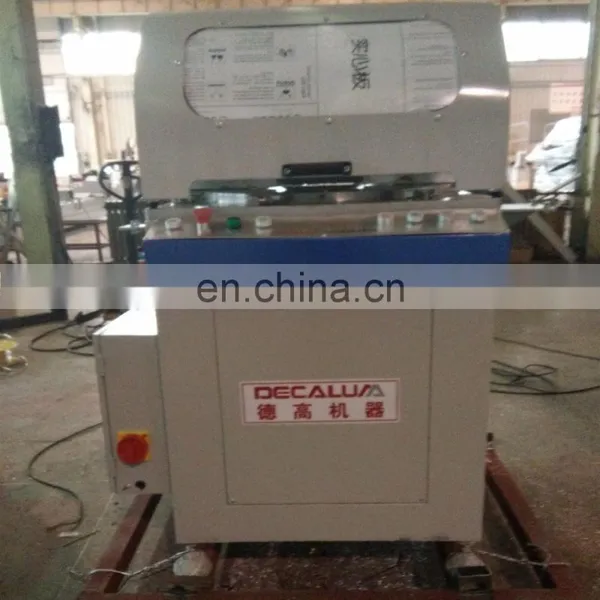

Single Head Any Angle Cutting Saw Aluminium Profile Saw Cutting Machines
Aluminum Window Machine Single Head Any Angle Cutting Saw used for curtain wall and window of aluminum accurate cutting ,also for UPVC profile.
Single head arbitrary angle cutting saw with the carbide saw blade, which make sure the high speed and accurate cutting.
This machine can be installed the size positioning frame, also can added the digital display device according to your requirement, thus can make the locating size more accurate.

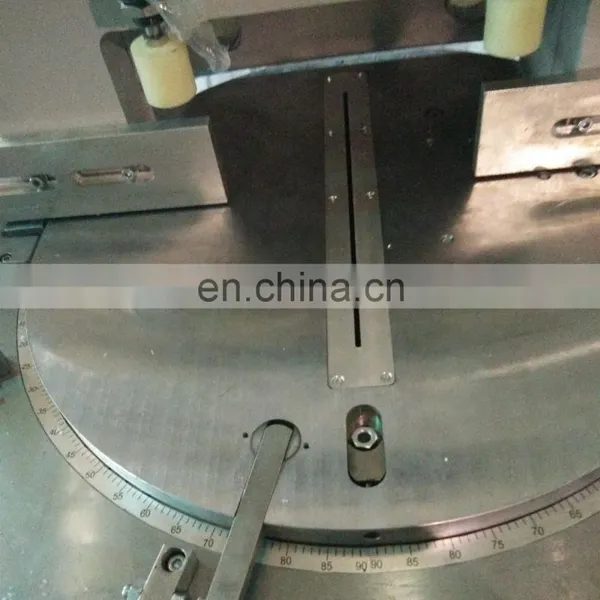

The workbench rotating between the left (-15 °)~90°~(+15°). after the plate retrocession, the workbench can be 0°positioning, then raise and fix the saw blade thus this machine can be used as Routing saw.
Power supply |
380V 50Hz,three phase |
motor power |
1.5Kw |
air pressure |
0.5~0.8MPa |
air consumption |
0.03m³/min |
saw blade specification |
φ400Xφ30X3.5X80 |
motor rotation speed |
2800r/min |
cutting angle |
(-15°) ~90°~(+15°) |
angular error |
±2′ |
cutting width |
165mm(90°MAX) |
cutting height |
120mm(90°,MAX) |
Overall dimension |
3850mm(L)×900mm(W)×1300mm(H) |
Wight |
600Kg |
JINAN DEGA MACHINE CO.,LTD.(decaluma)is located in Jinan city, Shandong province, China, which is a professional exporter and manufacturer focusing on research,production and sale of aluminum profile processing machine.
Our Company is a specialized company that engaged in research,producing and sales of high quality aluminum profile processing machine and windows and door processing machine, we have Export &Import right.
2. When you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
4. Are you trading company or manufacturer?
Manufacturer(OEM)
5. Quick details about our company
Company Name |
JINAN DEGA MACHINE CO.,LTD. |
Year established |
2006 |
Address |
No.389,TIANCHEN ROAD,JINAN CITY,250101 CHINA |
Business type |
Manufacturer |
|
Product range |
CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage |
Using advanced solidworks design platform |
Management certificate |
ISO9001,national patent |
Fair we attend |
Shanghai and Beijing international windows show |
E-catalog |
available |
MOQ |
1 set |
Payment terms |
TT or L/C |
Shipping port |
Qingdao port |
