Product Details
| Brand Name | DECALUMA | Model Number | LJZ3J-CNC-500*5000 |
Product Description

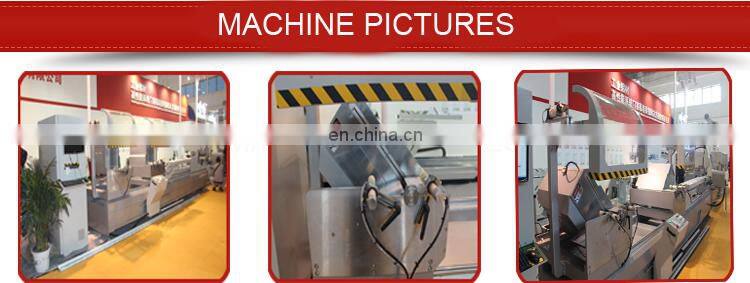

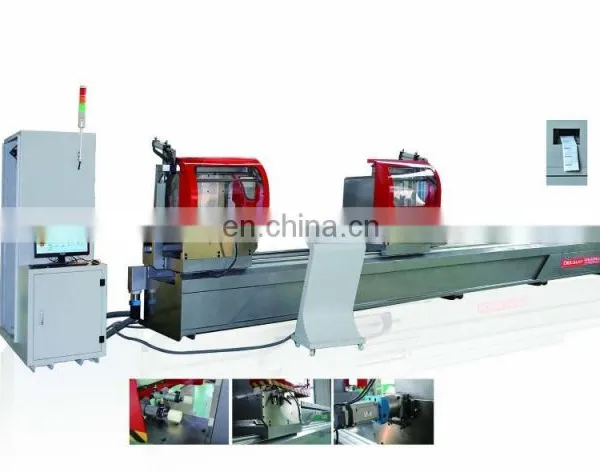

Aluminium Heavy Duty Double Head Saw Blade Cutting Machine Doors & Windows Machine
1. Connected with computer, downloaded software to create processing digital, finished the CAD/CAPP/CAM.
2. Integrated CNC Machine Type, can download software, generate processing data and program, automatically finish processing process.
3. Whole factory can achieve Computer Integrated Manufacturing System(CIMS), that is achieve Computer Assistant Design/Aided Process/Computer Aided Manufacturing(CAD/CAPP/CAM)
4. Imported Motor Directly Connecting saw blade, saw blade moving adopts mechanical rod swinging way.
5. Hydraulic damping cylinder achieve feeding steadily speed regulation, saw blade stable cutting
6. High precision imported cutting saw blade, smooth cutting surface.
7. Imported Servo Motor drive Reducer, making saw blade adjusted at any angle between 22.5 ~135°(45°~175.5°in reverse direction)
8. Imported Control System can realize aluminum profile optimization and cutting.
9. Moving Saw Blade drives by Imported Servo Motor, fast moving speed, full closed control, high accuracy sizing.
10. Saw blade Seal Device is under Worktable, Chip Removal is better.
11. Movable Roller Conveyor is compact structure, small space.
12. Each head has 3 Cylinder to clamp profile, much more safe.
Made to order | |
Motor power | 8.9Kw |
Air pressure | 0.5~0.8MPa |
Air consumption | 0.2m³/min |
Saw blade specification | φ500mm×4.4mm×φ30mm Z=120 |
Motor rotation speed | 2800r/min |
Running speed | 0~18m/min |
Length error | ±0.1mm |
Cutting angle | 22.5°~135°(double head independent adjustment ) |
Cutting length | 0~5000mm( 90°) |
Cutting width | 160mm(90°,MAX) |
Cutting height | 350mm(90°,MAX) |
Feeding speed | |
Cutting profile surface plane | ≤0.10mm |
Cutting angle tolerance | Ra12.5 μm |
Overall dimension | 6800mm(L)*1500mm(W)*2050mm(H) |
Weight | 2500Kg |
1. Customized service:
Free industrial information, free investment analysis for windows, doors, and curtain wall project, free layout design for window, and door and curtain wall product line.
2. After sales service:
One year guarantee
Free adjustment
Free training to operation and maintenance workers
Provide quick supply of spare parts for window and curtain wall companies.
1. What you can do if my machine have some problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines, just contact our company email.
2. When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit,but customized machines should be more than 25 says
3. Are you trading company or manufacturer?
Manufacturer(OEM)
4. Quick details about our company
Company Name | JINAN DEGA MACHINE CO.,LTD. |
Year established | 2006 |
Address | WEST END OF CENTURY AVENUE, HIGH-TECH ZONE,JINAN CITY,250101 CHINA |
Business type | Manufacturer |
Product range | CNC Machining Centre, aluminum cutting machine, corner key cutting, end milling machine,punching machine,copy router, crimping machine, drilling and bending machine |
Product advantage | Using advanced solidworks design platform |
Management certificate | ISO9001,national patent |
Fair we attend | Shanghai and Beijing international windows show |
E-catalog | available |
MOQ | 1 set |
Payment terms | TT or L/C |
Shipping port | Qingdao port |
