Two-dimension Laser Radar

FOB Price

USD $1000 - $15000 / Piece

1 Piece(Min.Order)

Product Details

Place of Origin:

China

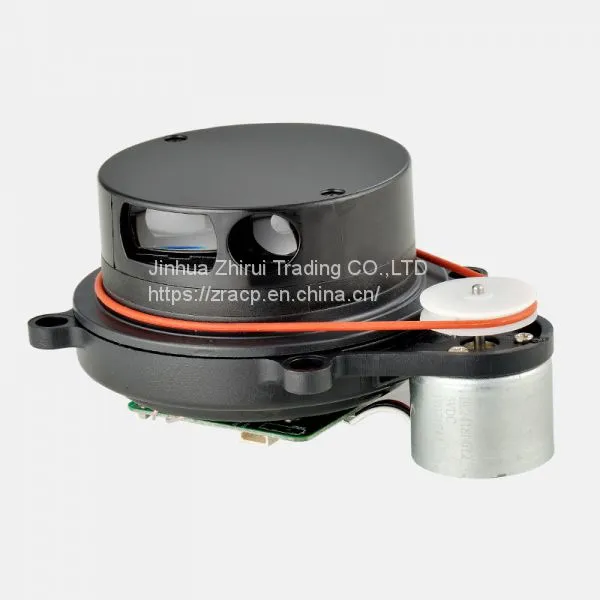

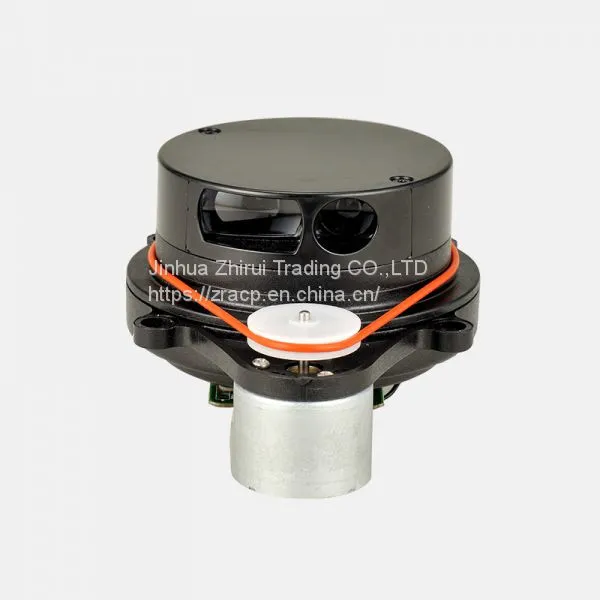

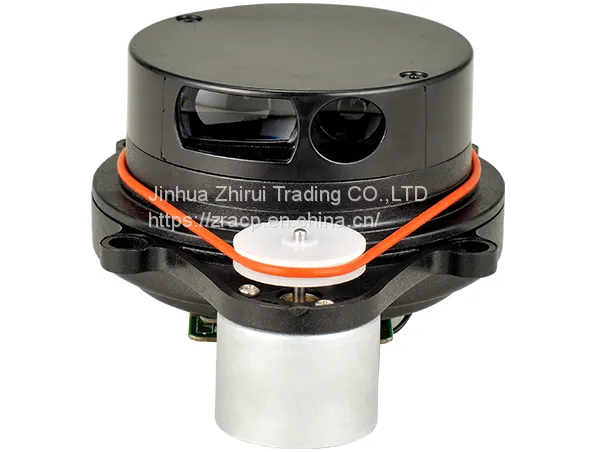

Two-dimension Laser Radar

ITEM NO：LDS-15BDM-1 LDS-30BDM-1

1.360° ROTARY

2. LONG-LIFE

3. HIGH ACCURACY

4. LONG-DISTANCE MEASURE

5. HIGH ANTI-INTERFERENCE

6. CAN BE USED OUTSIDE UNDER SUNLIGHT

SPECIFICATION

SCAN DISTANCE	0.15-30m WHITE OBJECT，0.1-10m 10% REFLECTIVITY，HIGH REFLECTIVE OBJECT CAN REACH TO MAXIUM：50m
ACCURACY	3-5cm
DISTANCE MEASURE PRINCIPLE	MEASURE PULSE FLIGHT TINE
LASER SAMPLING RATE	7.2 kHz
ANGULAR RESOLUTION	THE STEP ANGLE 0.25°-0.5°
SCAN ANGLE	360°
SCAN TIME	200-100ms SCAN ONE TIME（MOTOR SPEED:300-600ROUND, ADJUSTABLE）
INTERFACE	UART, OTHER TYPE NEED OEM
TEMPRETURE	0°-45°(STORAGE -20°-55°），<85%，NO FREEZING，NO FROST
ELECTRICITY POWER	DC4.8-5.5V
POWER DISSIPATION	＜3W 5v@500MAV
DIMENSION	936645
