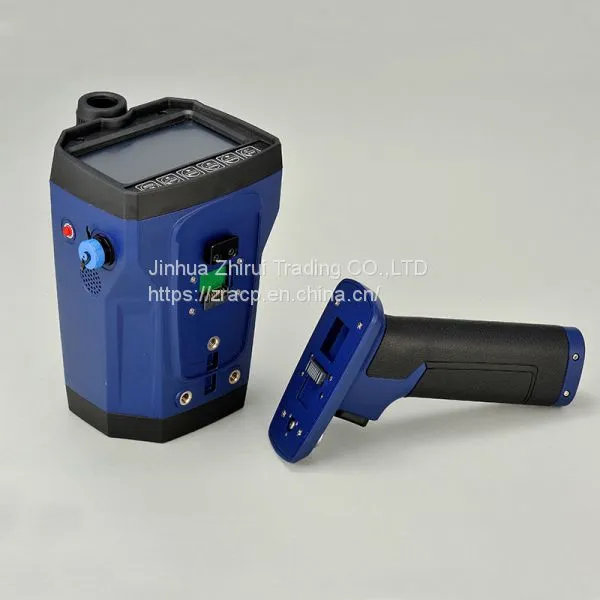

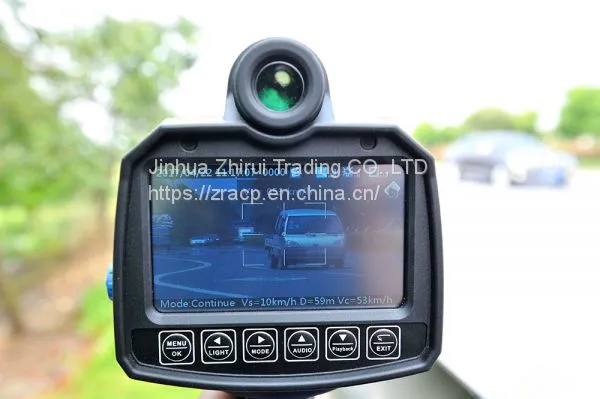

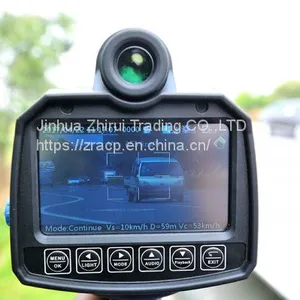

Tachymeter with Camera
Features:
1. Long Distance Measure
2. Good Direction
3. Easy Handling
Specification
Performance
Best Focus Distance |
70M(230ft) |
M |
Camera Working Distance |
Hand-Held |
15 – 80m(50 – 262ft) |
Tripod |
15 – 90m(50 – 295ft) |
|
Speed Measure Accuracy |
± 2Km/h |
|
± 1 Miles/h |
||
Speed Measure Distance |
0km/h-320km/h |
|
0miles/h-200miles/h |
||
Distance Measure Accuracy |
±30 cm |
|
± 12 inches |
||
Display Resolution |
Speed |
1km/h 1mile/h |
Distance |
1 m 1ft |
|
Minimum Measure Distance |
Speed Mode |
|
Weather Mode |
60 m(Automatic Software Identification） |
|
Maximum Measure Distance |
Reach to 600-700m under speed mode |
reach to 1200m under distance mode |
Measure Time |
0.33-0.67 s |
|
Measurement unit（factory set） |
speed |
km/h |
mile/h | ||
m/s | ||
Distance |
meter |
|
mile | ||
yard | ||
Optical Maser Wavelemgth |
905 nm |
|
Divergence of Laser Beam |
2.5 milliradian |
|
Eye-safty |
FDA Class 1 (CFR 21) |
|
Teampreture |
working |
-10°C to +60° C (14°F to 140°F) |
charging |
0°C to +45°C (32°F to +113°F) |
|
storage |
-20° C to +60°C (-4°F to 140°F) |
|
WIFI print: |
√ |
Hardware:
Size |
197*124*316mm |
|
Enviroment |
IP65 |
|
Water-proof; Dust-proof |
||
Processor |
ARM |
DM368 |
Camera Storage |
SD card ( insetable) |
16 GB or 32GB |
SD Document Format |
MS-DOS (FAT16, FAT32) |
|
Linux (EXT2, EXT3) |
||
Display |
4.3 inches (10.9cm), 480×272poixel,colorful, 18bpp，touchable screen |
|
Camera |
2.0 MPixel (1600×1200) |
|
Camera Lens |
75mm,Fixed Focus |
|
in/out |
RS232,Seroal Communication Port |
|
USB 2.0, Image Data Transmission |
||
Resistive Touch Screen | ||
6-buttons put in (tigger included) |
||
Software:
Operating System |
Linux system,Device Drivers(OEM) |
|
Anti-interfrence |
Auto |
|
Viedo Size |
Standard Format |
640×480 |
Picture Size |
1600×1200 |
|
MaxImun Record Size |
No Limite，relate to SD Card |
|
Data Encryption |
AES-128 |
|
Others:
Measure Mode: |
Continious、Lock、Auto、Video Trace Mode、Distance-measure Mode、Video Mode |
|
Voice Prompt |
Synchronized Speed with Sound |
|
Language: |
English、Chinese |
|
Warranty: |
18 Months |
|
