Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Window & Door Making Machine > SS Round Pipe Polishing Machine
US$ 5.00 - 15.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Chine Chern
Model Number:
J-6LI2
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen/GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Square Stainless Steel Pipe Polishing MachineUS$ 5.00 - 15.00MOQ: 1 Set -
High Speed SS Pipe Polishing MachineUS$ 5.00 - 15.00MOQ: 1 Set
-
304/201 Stainless Steel Tube Polishing MachineUS$ 5.00 - 15.00MOQ: 1 Set
-
6 Heads High Speed Steel Pipe Polishing MachineUS$ 5.00 - 15.00MOQ: 1 Set
-
P-100 Stainless Steel Round Tube Polishing Machine With Auto Feeding FacilityUS$ 7,000 - 9,000MOQ: 1 Set
Brand Name
Chine Chern
Model Number
J-6LI2

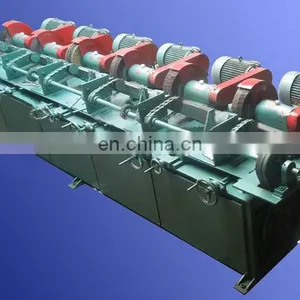

SS Round Pipe Polishing Machine
Characteristics:
1. Multiple stage round pipe polishing machine applied in stainless steel,carbon steel,aluminum , Iron pipe/bar for getting rid of rust on the surface.
Parameters:
| Item | J-6LI2(Six -groups Horizontal polishing machine) | ||||||
| Input voltage | 3-phase 380V 50HZ | ||||||
| Input power | 26KW | ||||||
| Motor (6Groups) | 4.4KW | ||||||
| Fan motor | 2.5KW, 2800RPM | ||||||
| Feeding motor | 3KW | ||||||
| Polishing wheel bore diameter | 32mm | ||||||
| Grinding wheel O.D(mm) | 250mm-300mm | ||||||
| Guiding wheel O.D(mm) | 120mm | ||||||
| Grinding wheel speed(RPM) | 3200 | ||||||
| Guiding wheel speed(RPM) | adjustable | ||||||
| Process O.D(mm) | 10mm-120mm | ||||||
| Process length(mm) | 400mm-not limited | ||||||
| Coolant system | Optional(charge) | ||||||
| Work efficiency | 2000-10000mm/min | ||||||
| Weight(kg) | 1600 | ||||||
| Machine dimension | 3600×1200×1200mm | ||||||
| Finish | Ra 0.1 | ||||||
| Function: | Multiple stage round pipe polishing machine applied in stainless steel,carbon steel,aluminum , | ||||||
| Iron pipe/bar for getting rid of rust on the surface. | |||||||
| Specification:300×100×32mm | Diameter:300mm,Thickness:100mm,Bore diameter: 32mm | ||||||
Wheels
