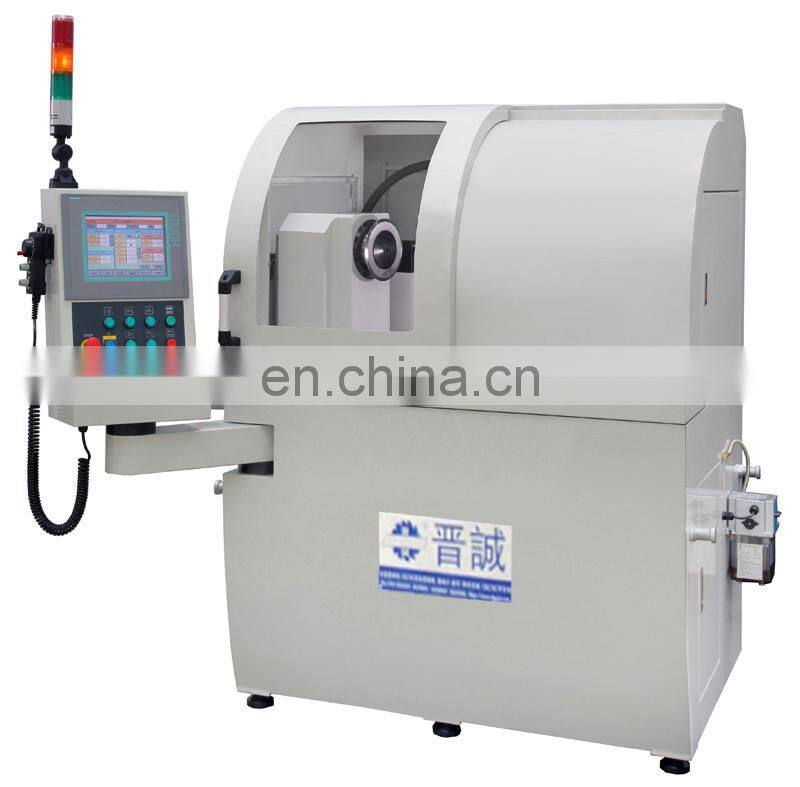

CV450-Circular knives grinding machine :
Features:
1.Automatic profile groove grinding machine for grinding HSS-TCT saw blade
2.You can set the profile groove and a grinding,fast set and easy to operate,is a precision mechanical device profile groove.High-frequency electric axis speed 30000RPM ,it can maintain a longer wheel life,in the operation is complte will automatically stop,without the use of machanical control of the air ,easy to operate and durable.
3.Use the inverter to control the grinding speed .Therefore,the pitch can change with the need to adjust the ground speed.
Suitable for:
Paper tube,Iron tube,Electronic boards,Tape,Plastic pipe,PE pipes,PP ppes ,Rubber,Tires,Stickers,Brass section of the circular knife blade grinding operations.
Technical Paramete:
| Measurements | Standard Accessories |
|---|---|
| Grinding range/circular knife diameter : ø30 ~ ø350 mm | Protective cover : 1 |
| Swivel angle : ± 90º | Coolant system : 1 |
| C-axis cutter circumrotation speed : 10 ~ 200 rpm ( stepless speed change) | Blade clamp seat ø104mm :1 |
| Y-axis to and fro :1~ 150 / Min ( stepless speed change) | Working lamp :1 |
| Actual grinding wheel diameter : ø120 mm ~ ø180 mm | Surface grinding wheel :1 |
| Grinding wheel inner diameter : ø31.75 mm | Flange :1 |
| Grinding wheel motor : 1.5 kw | Tool box :1 |
| Grinding wheel rotation speed : 4200 rpm | Lubrication system :1 |
| Cooling system motor : 1/8HP | - |
| Installation power : 2.5 kw | - |
| Net weight/gross weight: 580 / 650 kg | - |
| Packing damensions : 1050*1310*1710 mm | |
Chine chern's products:
Supperior quality Attractive design
Reasonable price Reliable and strong supplier
- We allow a proper discount according to the quantity order,delivery time and the terms of payment!We welcome all friends both domestic and foreign to inquiry and order!
