Metal Pipe Double Head Pipe Bending Machine
Features :
JC-50A-90° Double -head high speed bending machine with PLC Control,Can rotary 90degrees makes
your operation and pragrams'setting easy.Apply for automobile,seat,motorcycle,fender-guard and the furniture.
- It can divided into standard type and rotated type according to the difference of base structure.
1. Standard type: the secondary space angle is not rotator, the double-head can adjust bending angle of tube from 0 to 185 by random, but the material should be considered.
2. Rotator type: the secondary space angle is rotator; the double-head can adjust from 0 to 90 by random.
- It adopts PLC control for convenient operation and easy maintenance.
- Optional operation with full circulation or semi circulation.
- You can choose the operation of 1 or more at a time according to outer diameter of different materials.
standard accessories: a group of mould, a group of block foot.
Parameters :
| Model | JC-38A-90°(Hydraulic Double head pipe bending machine) | |||||
| Max Carbon steel pipe O.D(mm) | ¢38×1.8m/mt | |||||
| Max Oil pressure | 120kg/cm2 | |||||
| Bending radius(mm) | 38mm-200m/m | |||||
| Range of double bending center(mm) | 200mm-1800mm | |||||
| Max bending angle(°) | 190° | |||||
| Max process number | Φ25*2tube | |||||
| Bending speed(°/sec) | 50° | |||||
| Hydraulic motor power(KW) | 5.5 | |||||
| Voltage | 3-phase 380V 50HZ | |||||
| Machine weight (kg) | 1500kg | |||||
| Machine dimension(mm) | 3300×1000×1700 | |||||
| Standard fittings | 1.One set of mould 2. One tool box | |||||
Partial view picture :

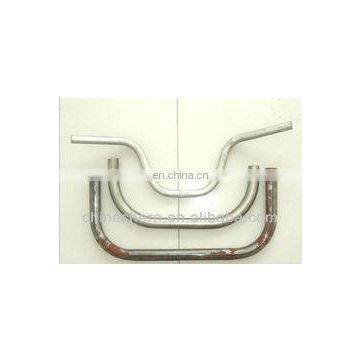

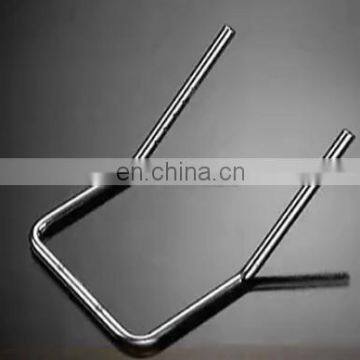

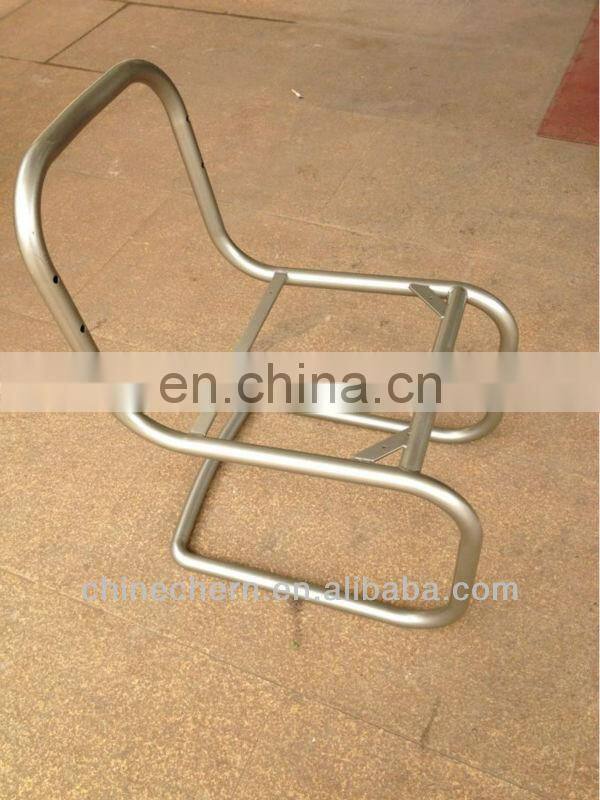

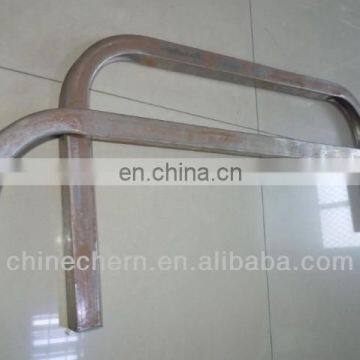

Pipe bending samples :
Machine Picture:
Certificate :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
