Double-blade 45 degrees angle aluminum cutting machine features:
1. Pedal switch,Automatically pressing and cutting .It is safe and simple.
2.Gas oil feed ,More stable cutting speed
3.When cutting profiles,Automatic oil mist spray ensures the lubrication and cooling of the saw blade.
It can keep the saw blade sharp.Non-stick aluminum chips.
4. Motor drives for two blades ,High rotation speed and strong cutting .
It is suitable for cutting Aluminium profiles .
5.The cutting surface is smooth and the saw blade is durable. It can improve production efficiency and no seamless and more accuracy.
6.Equipped with feeding rack and outfeeding rack,the fixed scale keeps the cutting size accurate.
7.Double-saw cutting is fast and time-saving,increasing production efficiency and consr-mingonly two thirds of the time required for general-eraleral types of sawing machines.
8.Pedal control for automatic material clamping(side clamping and to pressing). The clamp is sturdy and will not deform, ensuring precises awing angles.
9.Fiter long or short materisl can be sawed off.
10.Two-set four oil sprayers are equipped in the interior of the machine to provide saw blade with auto oil spraying during sawing,ensuring.
Technical parameters:
| Model | JC-355-2AS2 | JC-405-2AS2 |
| Cutting angle | 45° | 45° |
| Max cut width | 70mm | 100mm |
| Max cut height | 80mm | 150mm |
| Spindle speed | 3300RPM | 3300RPM |
| Saw blade | 355×25.4×3.0×120T | 405×25.4×3.0×120T |
| Worktable height | 800mm | 800mm |
| Motor | 1HP×2 | 1HP×2 |
| Feeding Rack length | 870×260mm | 870×260mm |
| Out feeding length | 1300×670×1270mm | 1300×670×1270mm |
| Weight | 280/360kg | 280/360kg |
| Voltage | 3-phase 380V | 3-phase 380V |
Sections:
Double Blade:

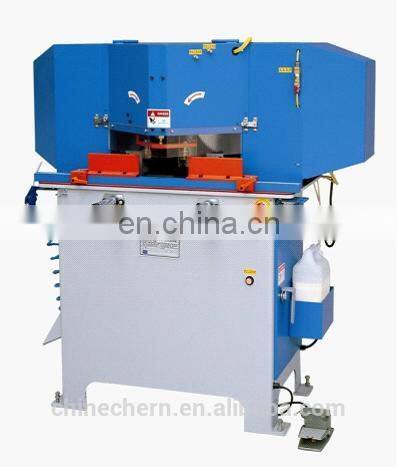

Machine Picture :
Certificate :
Company Profiles :
with decades hard work and accumulated experiences, We have acquired fourty invention
patent,Utility model and appearance patent.Meanwhile, We have passed ISO9001:2008 quality system certificate, Government-issued Guangdong Province private technology enterprises, high-
tech enterprises, private enterprises and other honors.
The products include Super hard metal bar cold saw machine series, Chipless metal pipes circular saw machine series,Copper aluminum non-ferrous high-speed precision circular saw machine series,Metal pipe/bar end chamfer machine series,Circular saw blade sharpening machine series,Automatic pipe bending and forming Machine series , Six categories eighty models , Also provide customized complex process
Machine , all kinds of circular saw blade . Wide Application range contains Nautical
aviation and aerospace industry, military industry, high-speed rail and rail transportation
industry, auto industry, precision parts, medical and fitness equipment industry, mechanical and electrical and electronic industry, lighting and furniture decoration forty industries .
