CNC Metal Steel Bar Cutting Machine
Characteristics:
- Unique Gear Head Design
- Floating swivel rear vise saddle
- Separating system
- Saw blade anti-vibration device
- Touch screen control
- Electronic Box Device
- Overhead Clamping Vise jaw
- Oil Mist lubrication device
- Oil mist filter (optional)
- Magazine table
- Scraps discharge device
Introduction:
SEPARATING SYSTEM
Separator automatically separates trim edge cut and residue into different storage tanks.

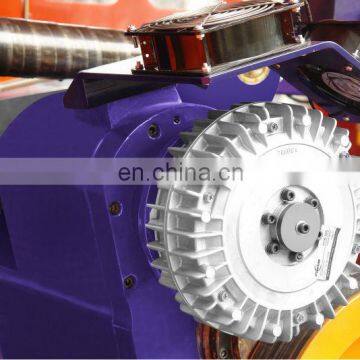

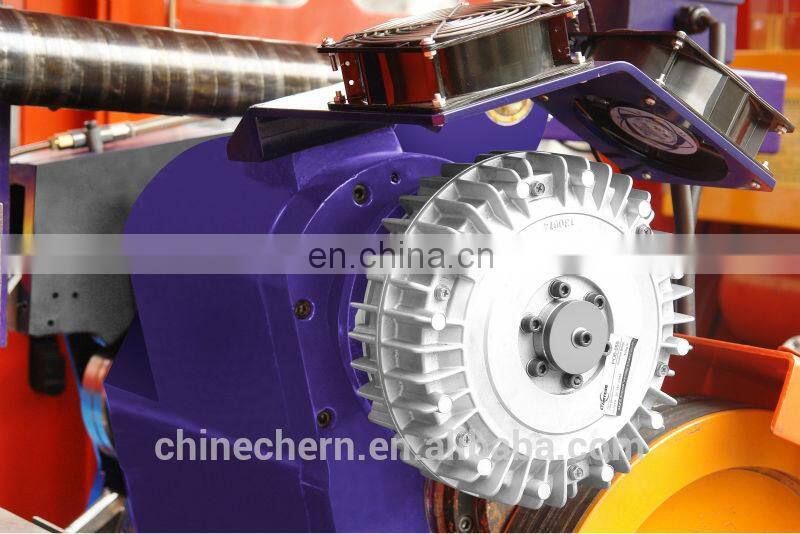

SAW BLADE ANTI VIBRATION DEVICE
Employs an unique electromagnetic brake system to eliminate vibration and sliding caused by gear backlash, ensuring a superb finish cut surface and enhancing blade service life.(Only for CS,CS-S machines)
UNIQUE GEAR HEAD DESIGN
The unique gear transmission system ensures smooth cutting with high efficiency,
less noise,and low power consumption,and enhances saw blade service life.

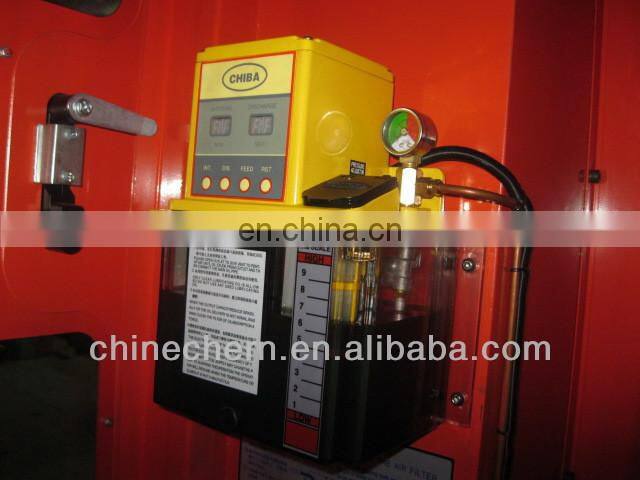

OIL MIST COOLING SYSTEM
Cools down blade temperature when cutting and provide antirust for cut pieces. Special designed with outwardly open door
for easy maintenance and adjustment.
OVERHEAD CLAMPING VISE JAW
Ensure material being clamped firmly and avoid vibration while fast cutting single bar or 2 pieces same size bar at one time.

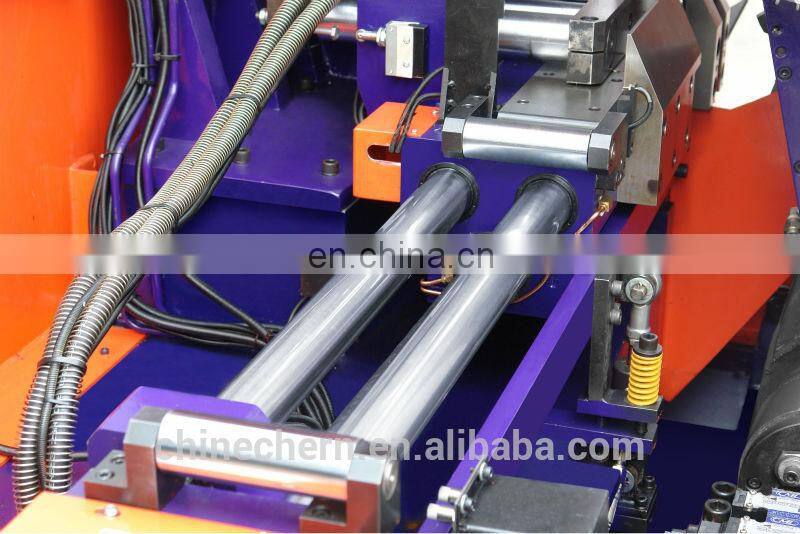

FLOATING SWIVELABLE REAR VISE SADDLE
This hydraulic floating rear vise saddle, linked to the servo motor and ball screw, is excellent for gripping and delivering even bowed or bent bar, ensuring minimum worn surface and greatest cutting accuracy.

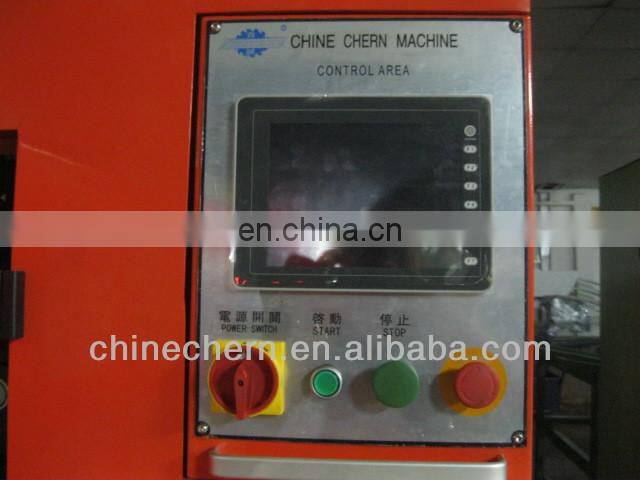

TOUCH SCREEN CONTROL
It's a fuzzy, graphic, colorful,digital and tactile control panel,allowing easy presetting for various work-piece. It has an automatic detector display to indicate operational errors and causes of malfunctions.

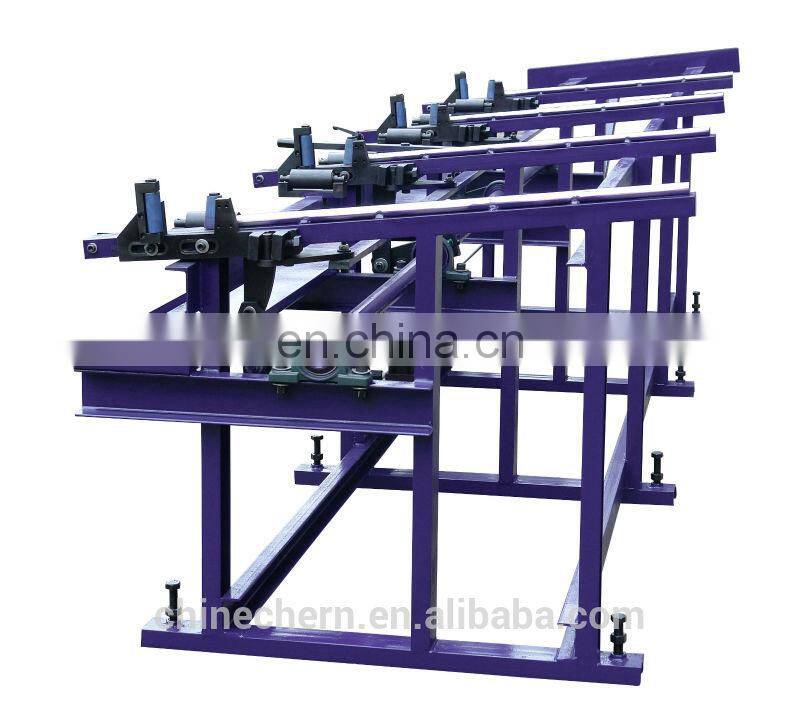

MAGAZINE TABLE
Magazine table holds 6 meters long material for loading different sizes of bars. Customized bar loading system is optional for different
Parameters:
| Specification | JC-60NC | |
| Cutting Capacity | Solid bar | 8mm-60mm |
| Angle profiles | 8mm-50mm | |
| Round tube | 8mm-60mm | |
| Square tube | ||
| Motor (KW) | 5.5KWx4P | |
| Oil pump motor(KW) | 2.2x4P | |
| Advance Servo motor (KW) | Ball Screw+ AC Servo Motor(1.3) | |
| Feed Servo Motor (KW) | Ball Screw+ AC Servo Motor(1.3) | |
| Sawblade Specification(mm) | 250x2.0t | |
| Pin hole + Hole diameter(mm) | 4x11xPCD63x11(std) | |
| Cutting length(mm) | 6-600mm once/600-999mm(multiple feed) | |
| Blade speed (RPM) | 30-150 | |
| Auto Chips Conveyor | Chain Drive (Opt) | |
| Cutting Fluid | Air Compressed Oil Mist | |
| Packing weight(bottom) (kg) | 2530 | |
| Packing size (LxWxH)(mm) | 1700x1850x1850 | |
| Load Capacity(mm) | 60x6000Lx13pcs | |
| Rack Size(LxW)(mm) | 5300Lx1600W | |

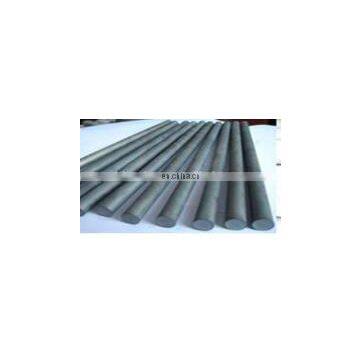

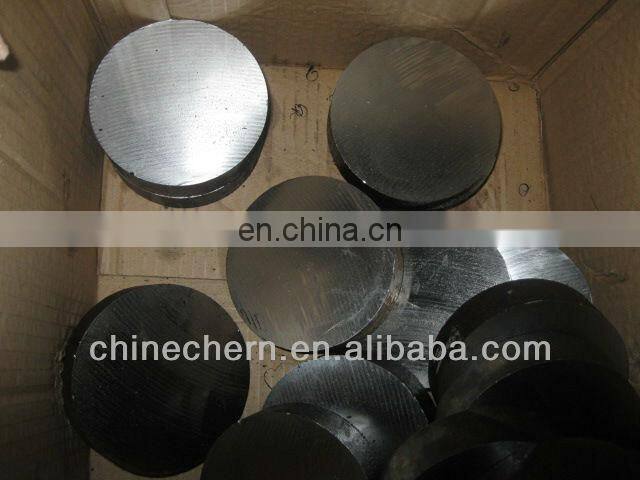

Samples:

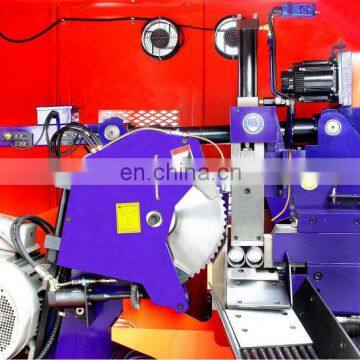

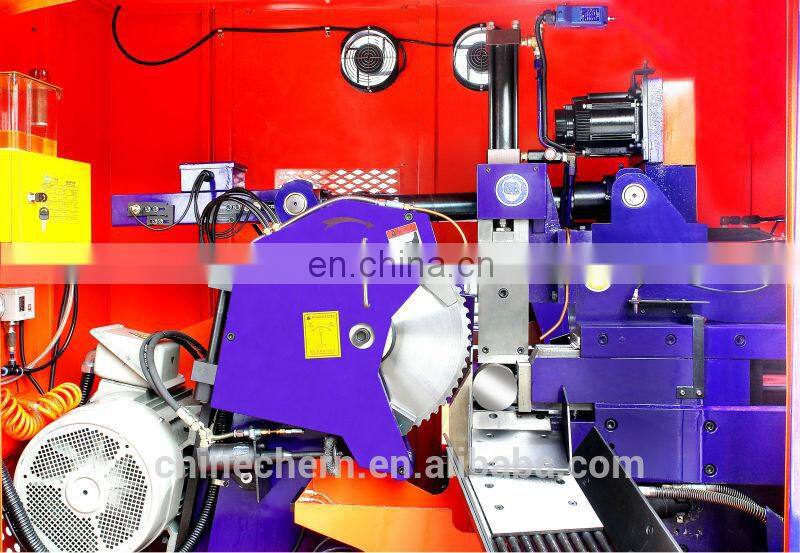

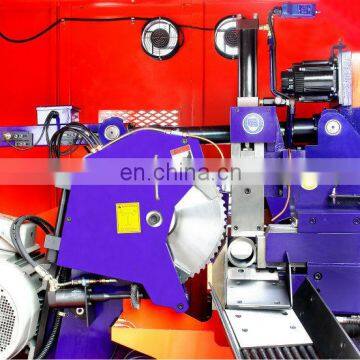

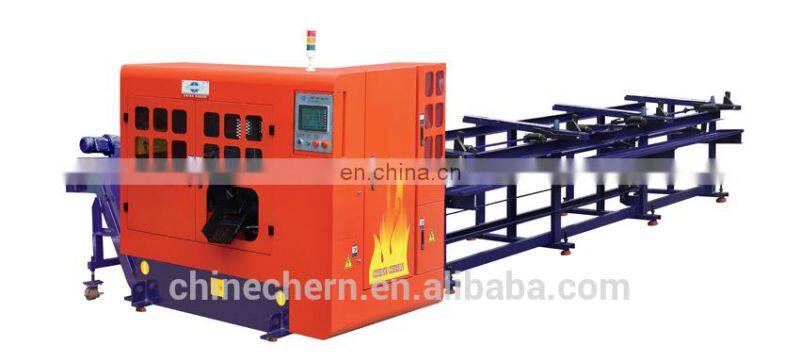

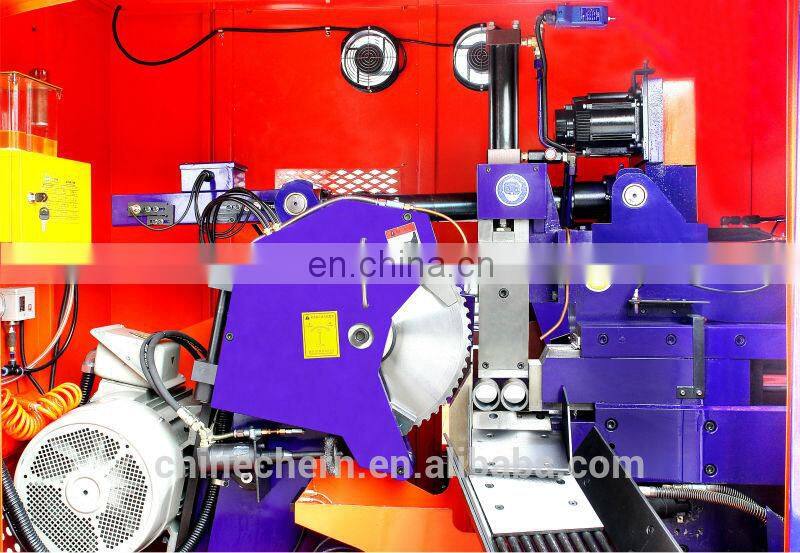

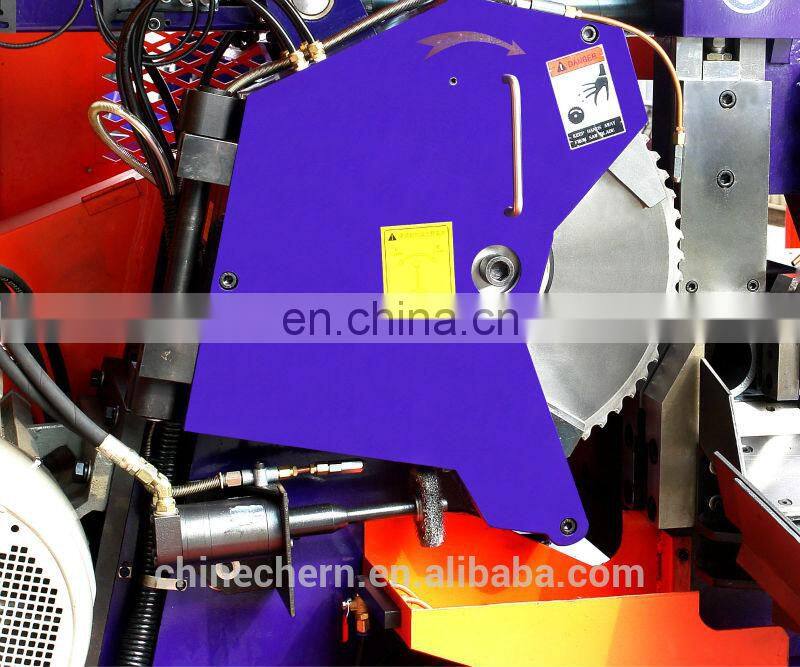

Machine Photo :
