JC-100NC CNC Metal Circular Cold Saw Machine
Main Specifications:
1.Full-automatic super hard metal circular saw machine adopts servo motor control
2.Innovative gear box design together with precision process technology enables the gear box achieve zero clearance,Prolong the life of saw blade
3. TCT Tungsten Carbide saw blade is suitable for cutting iron/steel solid bar.

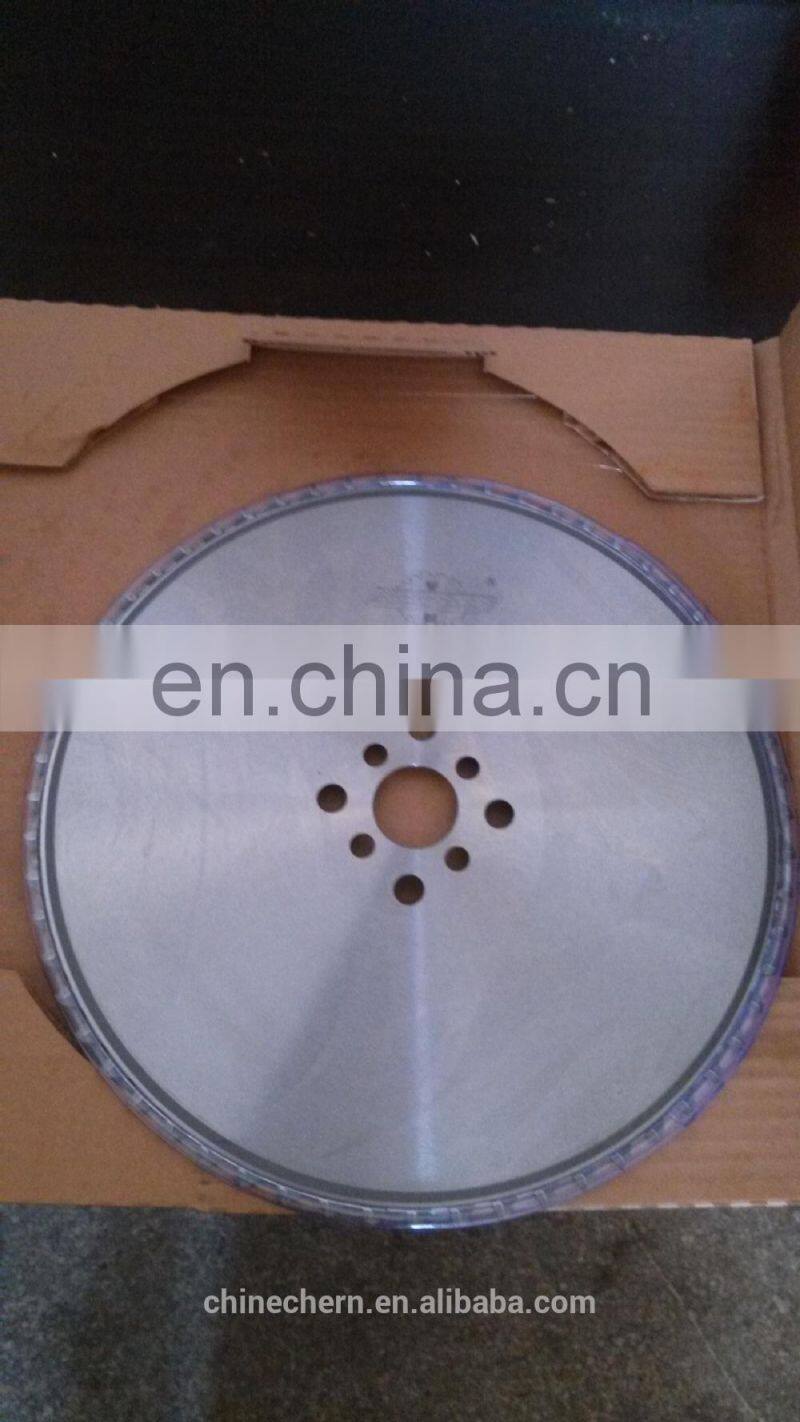

4.HSS Saw blade is suitable for cutting hollow pipe . Unique gear design ensures that smooth cutting and low noises,improve cutting efficiency,reduce power consumption ,prolong the life of saw blade.
5.Water-solubility cutting oil with automatic circulation cooling pump.
6.Cutting length precision: ±0.05- ±0.1mm
7. Servo motor drive + ball screw feed transmission
8. Hydraulic driven sawhead feed for cutting motion
9.PLC Control,Japan Fuji Touch Screen,Japan servo motor,TaiWan Shihlin Inverter for spindle speed
Technical Parmeters:
| Specification | JC-80NC | JC-100NC | |
| Cutting Capacity | Solid bar O.D | 8mm-80mm | 16mm-100mm(110mm) |
| Angle profiles | 15mm-70mm | 20mm-80mm(85mm) | |
| Round tube | 16mm-100mm | 16mm-100mm | |
| Square tube | 20mm-80mm(85) | ||
| Motor (KW) | 7.5KWx4P | 11KWx4P | |
| Oil pump motor(KW) | 2.2x4P | 2.2x4P | |
| Advance Servo motor (KW) | Ball Screw+ AC Servo Motor(1.3) | Ball Screw+ AC Servo Motor(1.3) | |
| Feed Servo Motor (KW) | Ball Screw+ AC Servo Motor(2.0) | Ball Screw+ AC Servo Motor(2.0) | |
| Sawblade Specification(mm) | 250/285x2.0t | 315x2.3/360x2.6 | |
| Pin hole + Hole diameter(mm) | 4x11xPCD63x11(std) | 4x10xPCD40x90(std) | |
| Cutting length(mm) | 6-600 once/600-999 twice feed | 6-600mm once/600-999mm(multiple feed) | |
| Blade speed (RPM) | 30-150 | 30-130 | |
| Auto Chips Conveyor | Chain Drive (Opt) | Chain Drive (Opt) | |
| Cutting Fluid | Air Compressed Oil Mist | Air Compressed Oil Mist | |
| Packing weight(bottom) (kg) | 2750 | 2850 | |
| Packing size (LxWxH)(mm) | 1750x1950x1930 | 1750x2100x2100 | |
| Load Capacity(mm) | 80x6000Lx13pcs | 100x6000Lx10pcs | |
| Rack Size(LxW)(mm) | 5300Lx1600W | 5300Lx1600W | |
Description:
SEPARATING SYSTEM
Separator automatically separates trim edge cut and residue into different storage tanks.
SAW BLADE ANTI VIBRATION DEVICE
The unique gear transmission system ensures smooth cutting with high efficiency,
Cools down blade temperature when cutting and provide antirust for cut pieces. Special designed with outwardly open door for easy maintenance and adjustment.

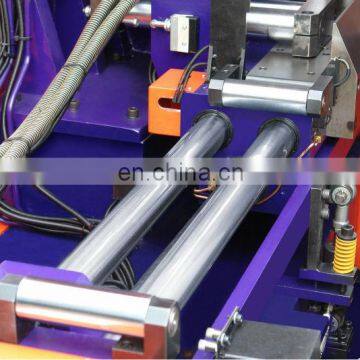

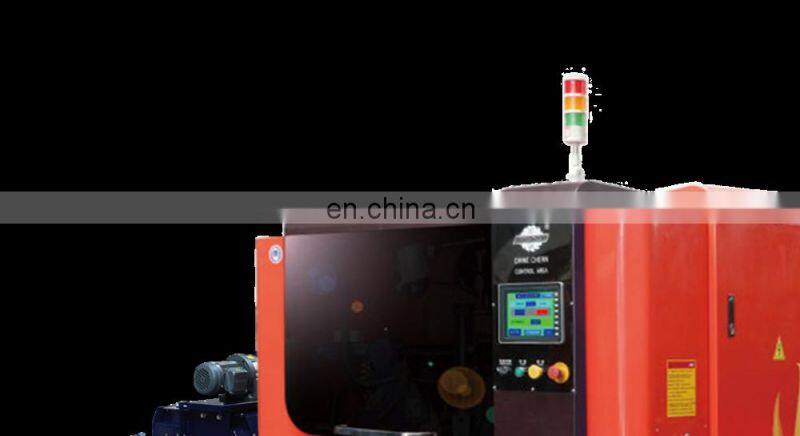

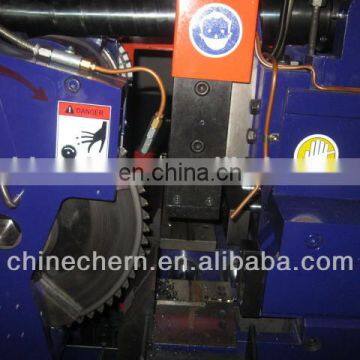

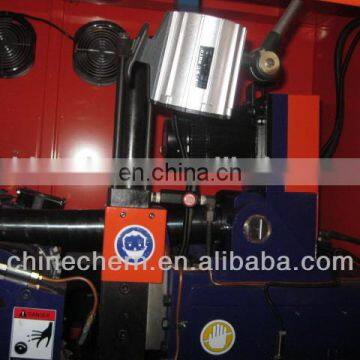

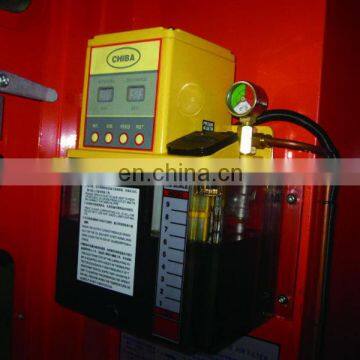

Machine Picture
