Product Details
| Brand Name | CARE | Model Number | SW40CNC Aluminum profile bending machine |
Product Description
Double side Aluminum profile bending machine for tooling box frame and aluminum trolley luggage frame
Main specification:

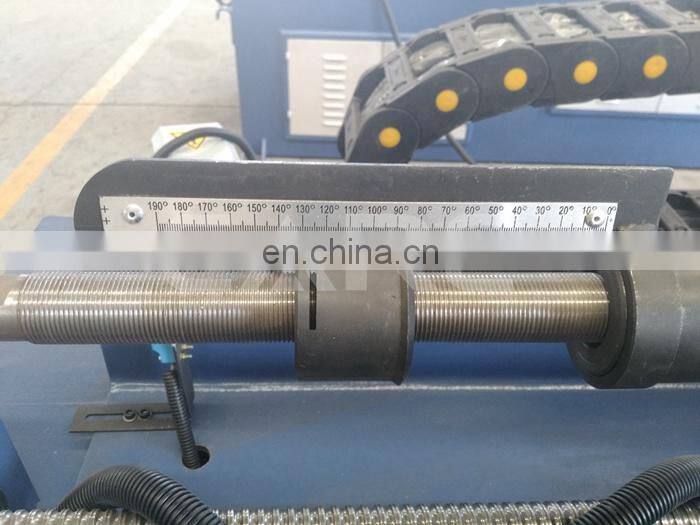

Uses PLC control with touch screen,operates easily, performance stable, double-end bending synchronization shapes work piece of the bended pipe opens, the angle is precise, Double-end bending angle may adjust from 0-180, but must consider the material-taking problem.
1. According to different base frame, it can be divided into standard type and rotary type.
2. Hand-operated, auto, semi-circulation and other functions can be chosen.
3. PLC control with touch screen, imported electric elements. The program can be stored forever, no losing.
4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.
5. Double head can be used separately.
6. Three pieces can be bended one times.
Technical Parameter
Specification/Model | Unit | SW40CNC | Remark |
Max bending capability | mm | Φ40×2 |
|
Max bending radius | mm | R200 | |
Min bending radius | mm | R15 | |
Max bending angle | Degree | 95 | |
Control System |
| PLC Control | |
Max elbow bend pipe | Unit | 16 | |
Max storable sections | Unit | 16×16 | |
Motor power | KW | 5.5 | |
Max. Hydraulic Pressure | Mpa | 14 | |
Hydraulic System Control |
| Electromagnetic Valve | |
Oil Tank Capacity | L | 110 | |
Size | cm | 3000×100×160 | |
Weight of Machine | Kg | 1800 |

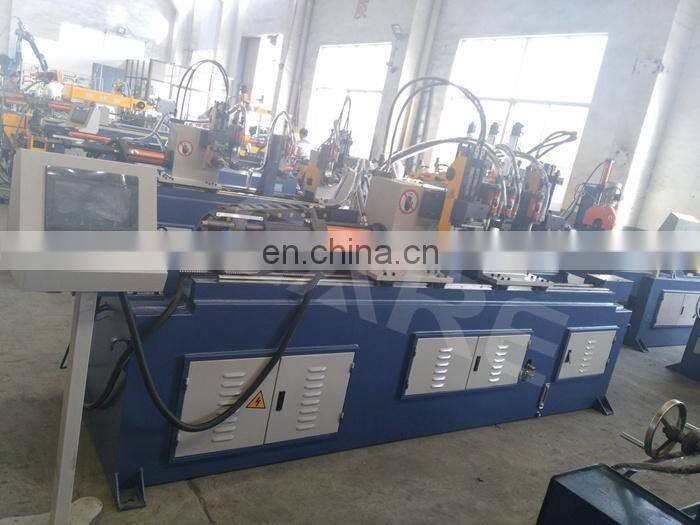

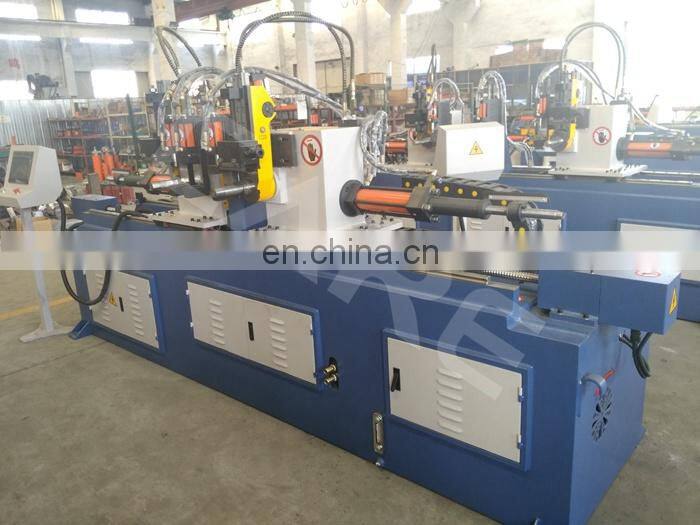

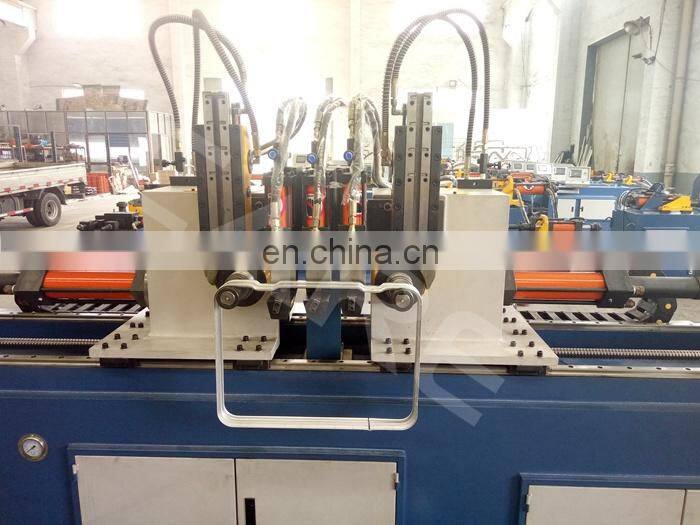

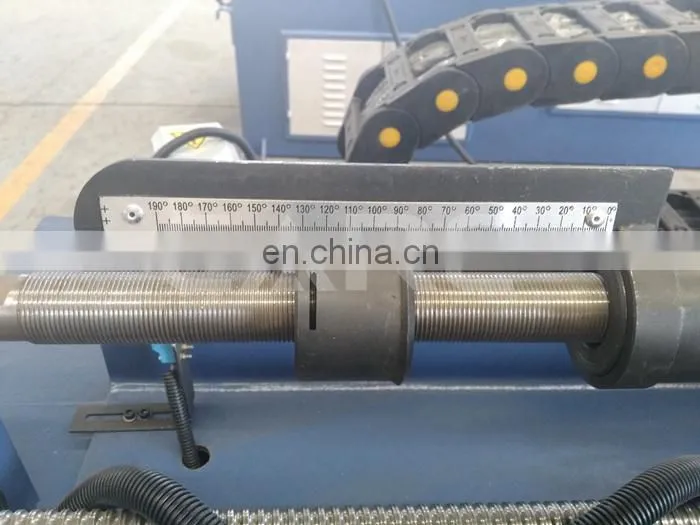

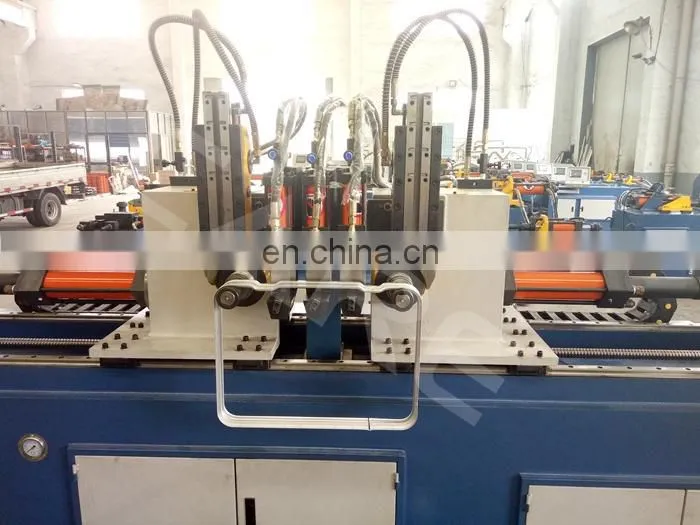

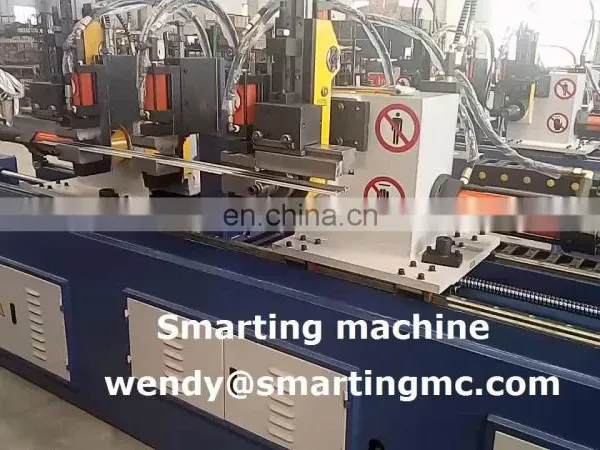

Machine photo

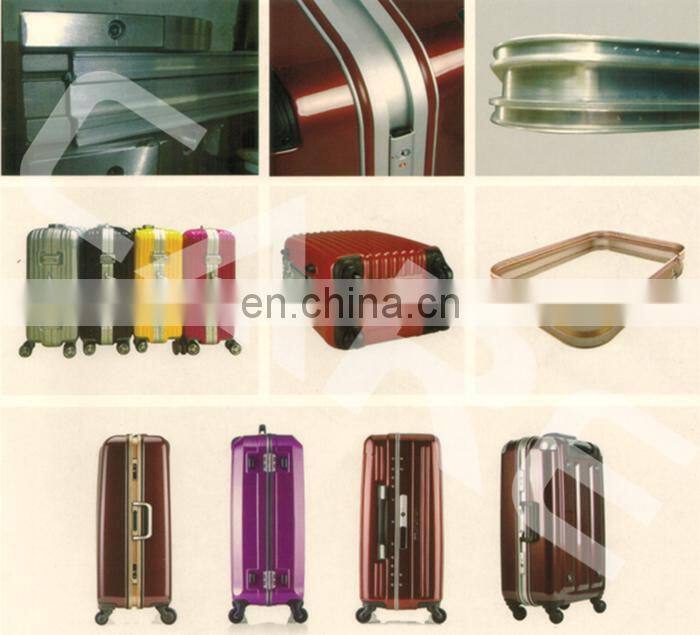

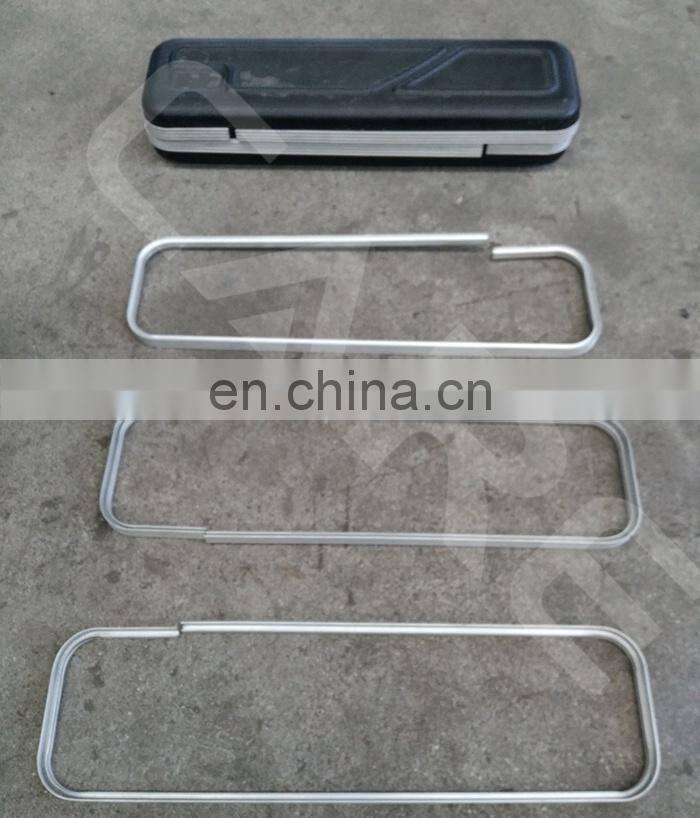

Frame sample
To know more information, please contact us.
