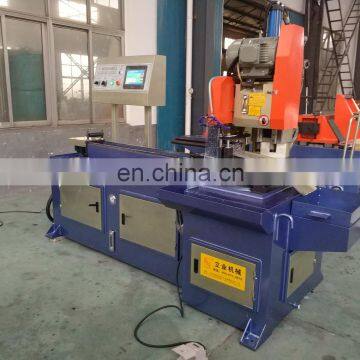

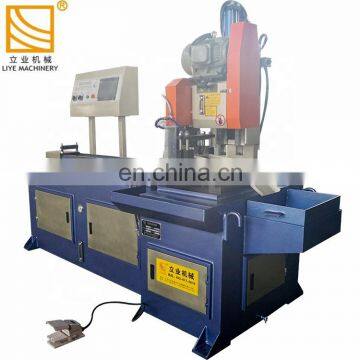

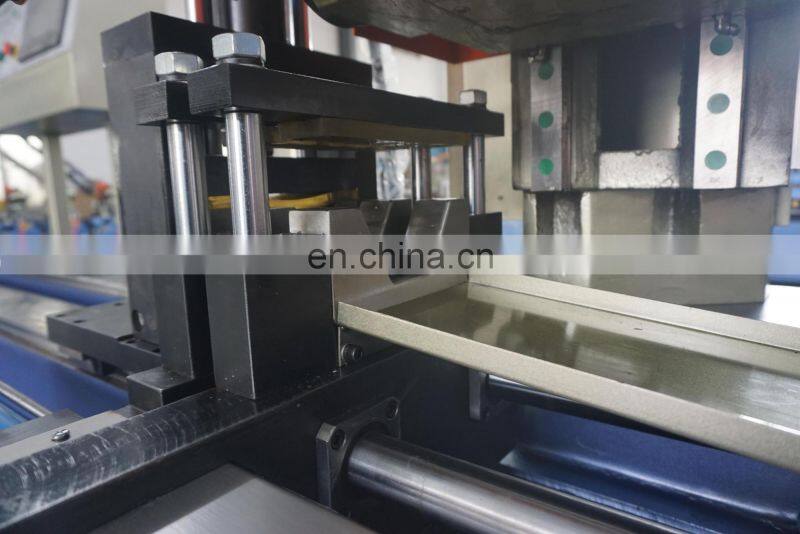

YJ-425CNC Automatic pipe cutting machine (Servo feeding,hydraulic tail material , upper and lower clamping)

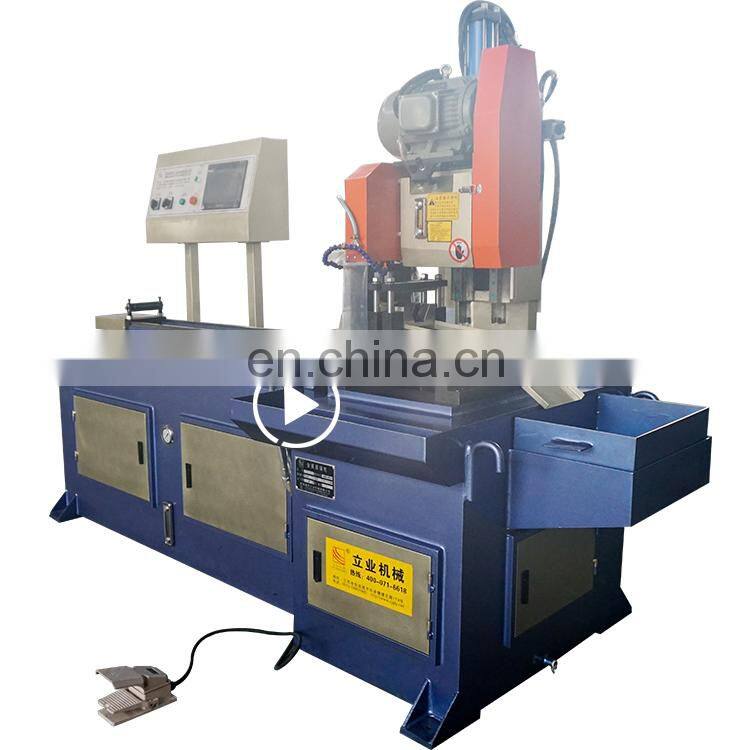

Machine video :

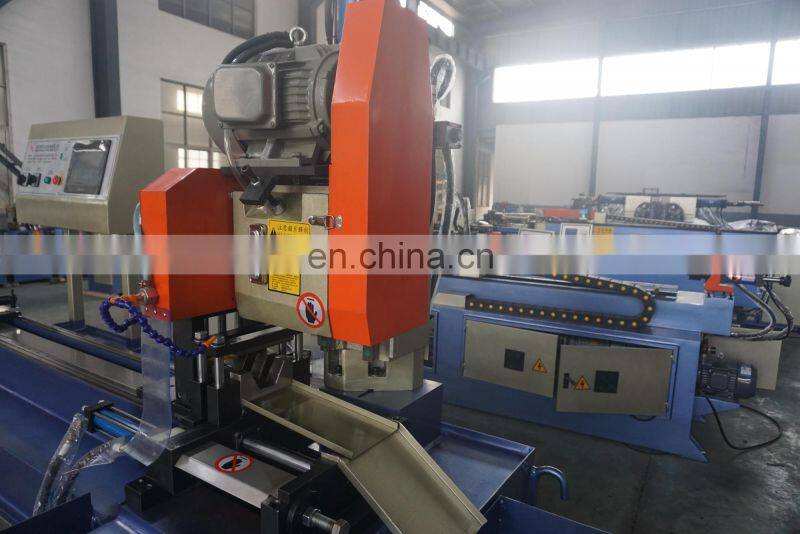

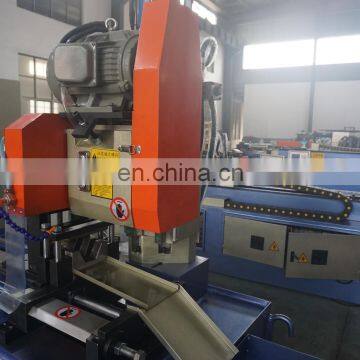

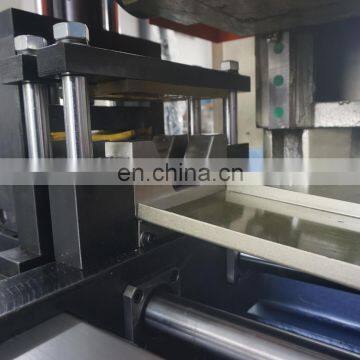

Detail:

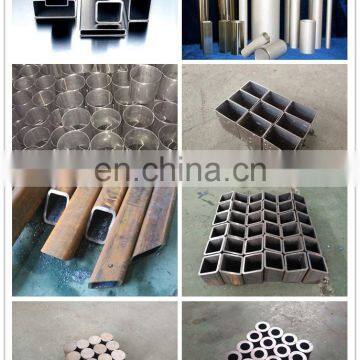

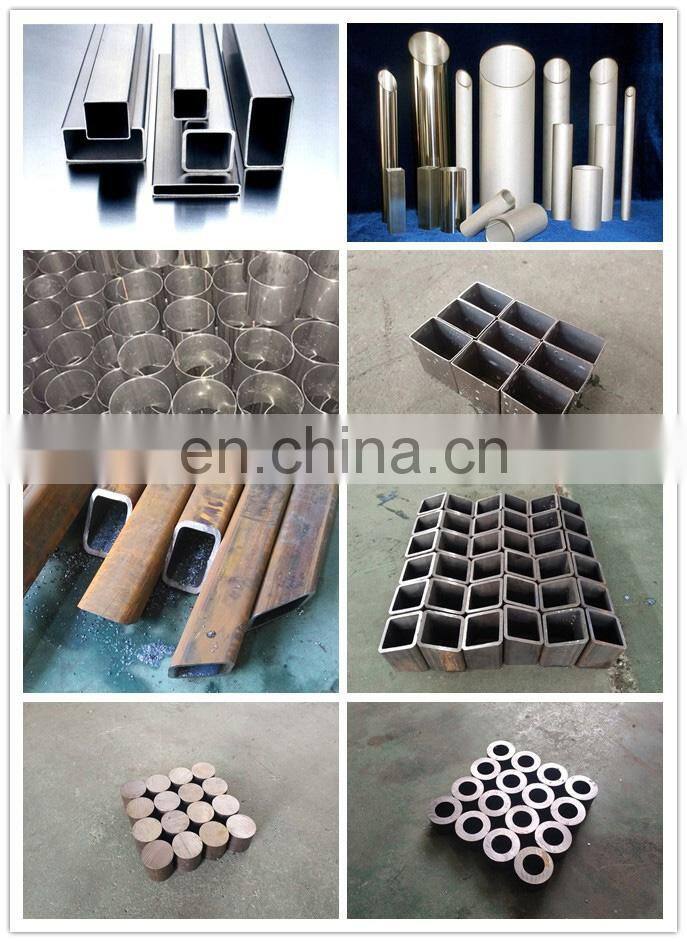

Sample:
Specification:
| Specification/model |
YJ-425CNC Servo feeding Hydraulic tail material , upper and lower clamping |
| Saw blade drives gearbox | model 425(all-gear drive) |
| The largest pipe cutting ability |
Φ70mm (several small tubes can be cut at one time) |
| Maximum once feeding material length | 700mm (can be customized) |
| Clamping mode | hydraulic oil cylinder (upper and lower clamping) |
| Machine head cutting mode | hydraulic cylinder |
| Feeding material mode | servo motor |
| Feeding servo motor | 1KW |
| Tail material mode | hydraulic cylinder |
| Saw blade drive motor | 3.3/4.0KW/380V/50HZ (customizable) |
| Saw blade revolving speed | 35/70RPM 60/120RPM |
| Cooling pump motor | 90W |
| Oil pressure system | 2.2KW motor |
| Working pressure | 70KG |
| Machine volume | 2580 * 1050 * 1850 mm |
| Machine weight | 1600KG |
Feature:
1. HSS saw web (Φ250-Φ425mm) is applied, standard Φ350mm.
2. Full-automatic hydraulic tube cutter, having cyclic actions (feeding, material clamping and cutting) automatically.
3. The feed mechanism is firm in structure and has accurate actions. The floating type seat will not damage the surface of parts.
4. The specially designed main clamp has strong clamping force, reliable and safe.
5. Automatic circulation of cooling fluid ensures smoothness of cutting face of parts and long service of saw web.
6. It is controlled by microcomputer. It has simple line and can be maintained easily.

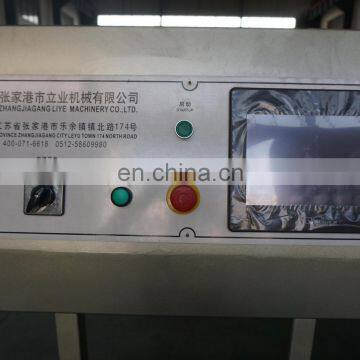

7. Control buttons are concentrated on panel, which facilitates to operation.
8. Cutting length display device, cutting quantity setting and counting device and shutdown device are provided.
9. Centralized treatment of filings, which is convenient and ensures cleanliness.
Shapes of cut materials
Round tube, square tube, elliptical tube, plum blossom-shape tube, shaped tube, U-steel, angle steel, I-steel and flat steel, etc.
Categories of cut materials
Steel tube, stainless steel tube, copper tube, aluminum tube and multiple-unit tube
Standard accessories
1. One pair of standard clamping mould
2. One set of common tools
3. One piece of saw web
Special accessories
1. Feed bracket, discharge bracket
2. Air cooler
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
