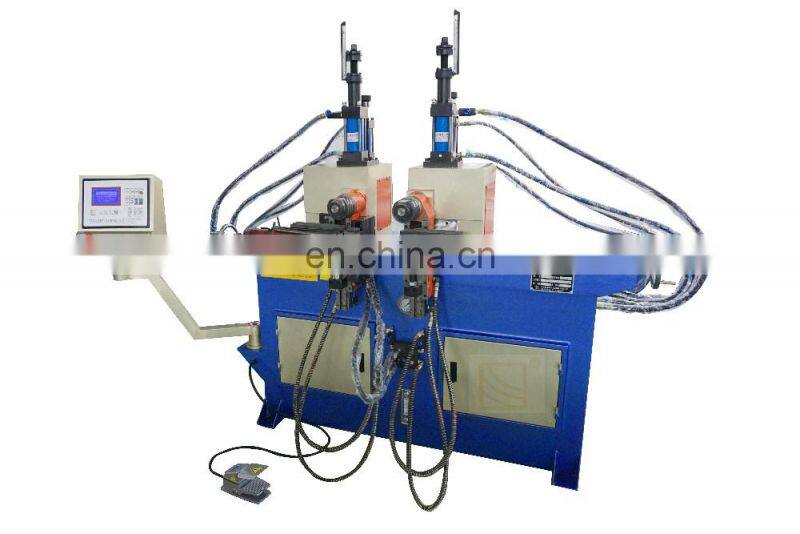

SW-25 Dual head semi-automatic pipe bending machine
- 100 Set / Sets per Month
- Shanghai
- T/T Credit Card
Product Details
Brand Name: | Liye machine | Model Number: | SW-25 bending machine |
Product Description
bending machine
SW-25 Dual head semi-automatic pipe bending machine

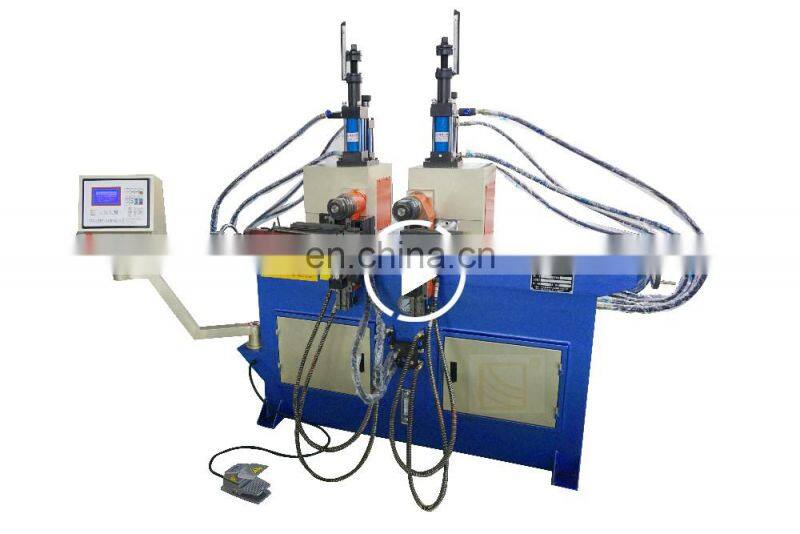

Machine video 1:
Machine video 2:

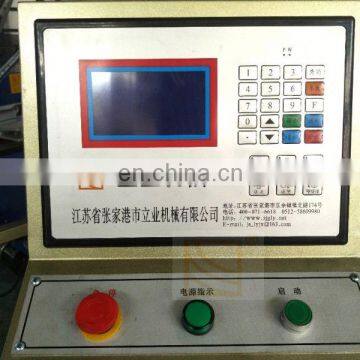

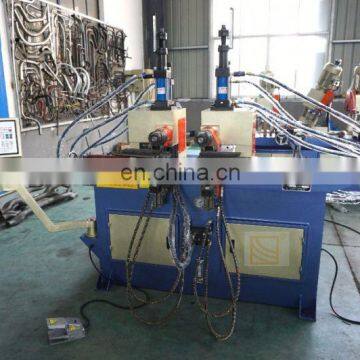

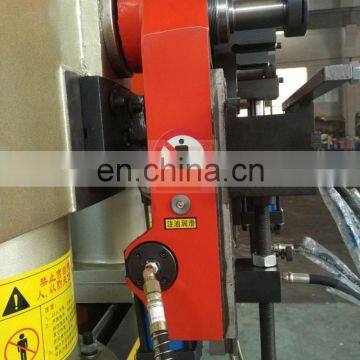

Detail:
Sample:
Specification:
SW25 dual head bending machine | |
Specification | SW-25 |
The Largest Processing Diameter (iron pipe) mm | φ25×2 |
Max. Bending Angle | 180° |
Max. Bending Radius | 150mm |
Double Curved Center Range | 110-1200mm |
Bending Speed | 80°/S |
Motor Power | 4kw |
Hydraulic Pressure | 12Mpa |
Measurement Size Of Machine (L*W*H) | 2600 * 1200 * 1700 mm |
Weight Of Machine | 1000 kg |
Bending Mode | Rack drive |
Warranty | 1Year / Life-Long Maintenance |
Feature:
1. It can be divided into standard type (SW25) and rotary type (SW25A) according to structure of the base. The head of the rotary type bender (SW25A) can adjust the angle of elbow freely, but it shall consider the material feed problem.

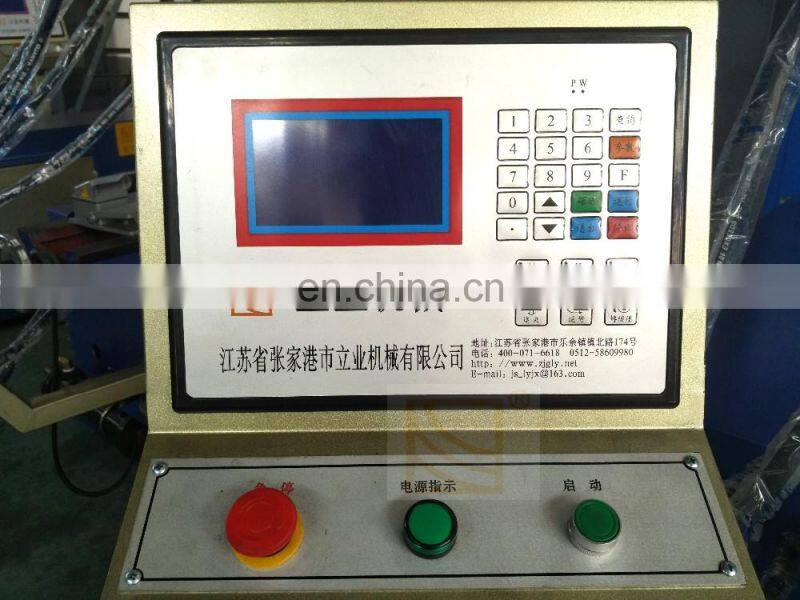

2. As it is controlled by microcomputer, it is easy to operate and maintain it.
3. It can be operated full circularly or semi circularly and can be used for the volume production of symmetrical products at both sides.
4. The head of machine on the left and right can be adjusted rapidly and they are securely fastened. During bending, the center distance of two shafts will not deflect easily.
5. The bending angle can be adjusted with high precision and it meets the requirements of strict standard.
6. One or two tubes can be bent in one time according to its size, material and outer diameter.
Standard accessories
1. One pair of mould, one set of retaining device
2. One set of common tools
3. The head can turn for 90° inside and outside

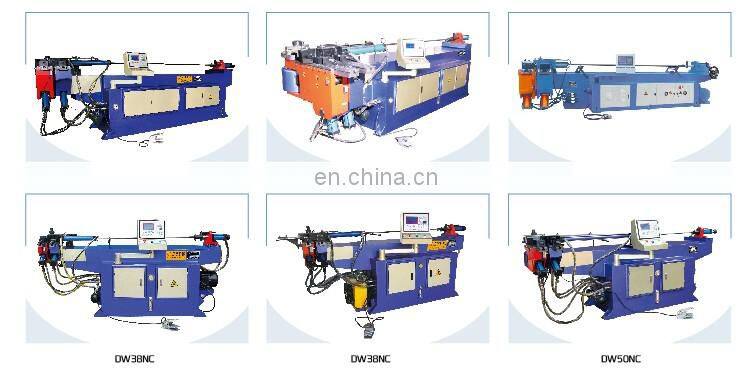

Selection Guide:
/en/xxzn.html
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the “Company”) is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
