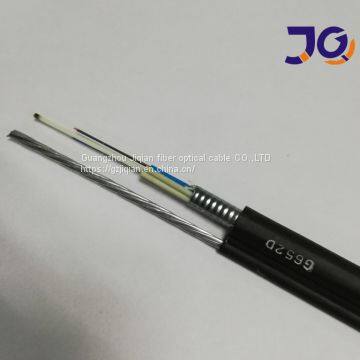

self-supporting figure 8 GYTC8S outdoor Averial Installation 24 or 48 core fiber optic cable
GYTC8S Armored Central Loose Tube12 24 48 72 Core self -supporting Figure-8 Optic Fiber Cable GYTC8S Price
Feature:
The loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.

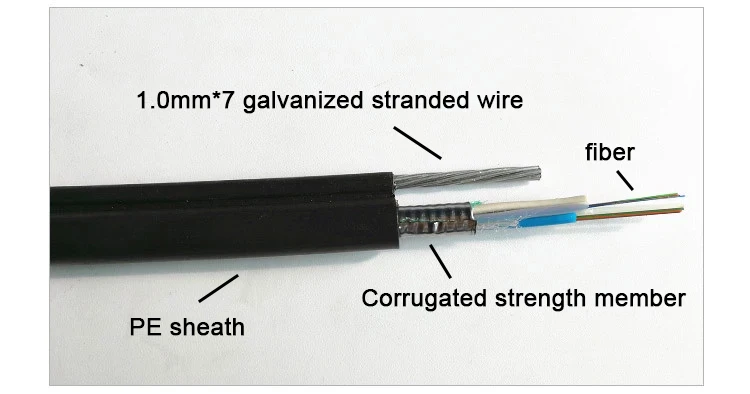

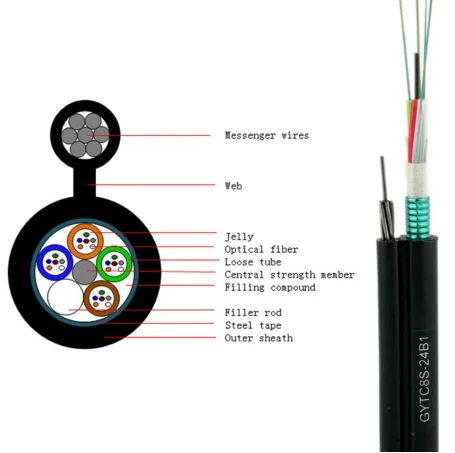

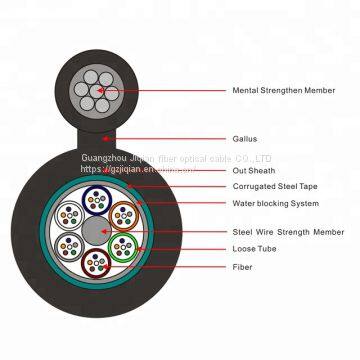

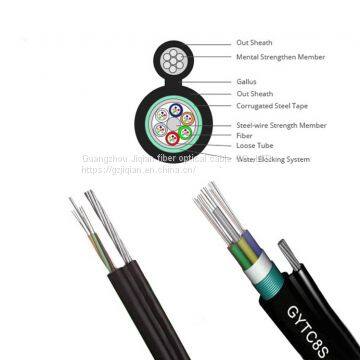

Cross section shows figure 8
Stranded wires as self-supporting member provide excellent strain performance and convenient installation.
Application:
The figure 8 cables are suitable for installation in aerial environment for long haul communication.
It is the typical and popular aerial cable.
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| @1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth(Class A) | @850nm | ≥500MHz·km | ≥200MHz·km | ||
| @1300nm | ≥1000MHz·km | ≥600MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.15NA | |||
| Cable Cut-off Wave length | ≤1260nm | ≤1480nm | |||

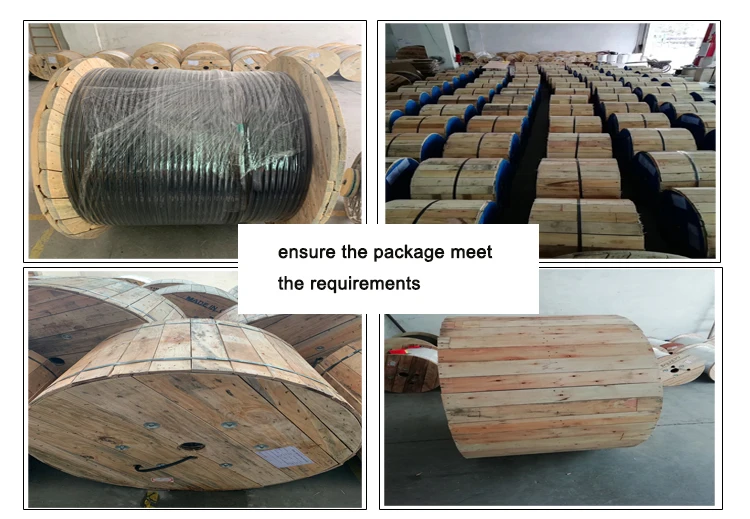

Packaing detail:
1.Wooden roll, 1000m/roll,2000m/roll,3000m/roll,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.

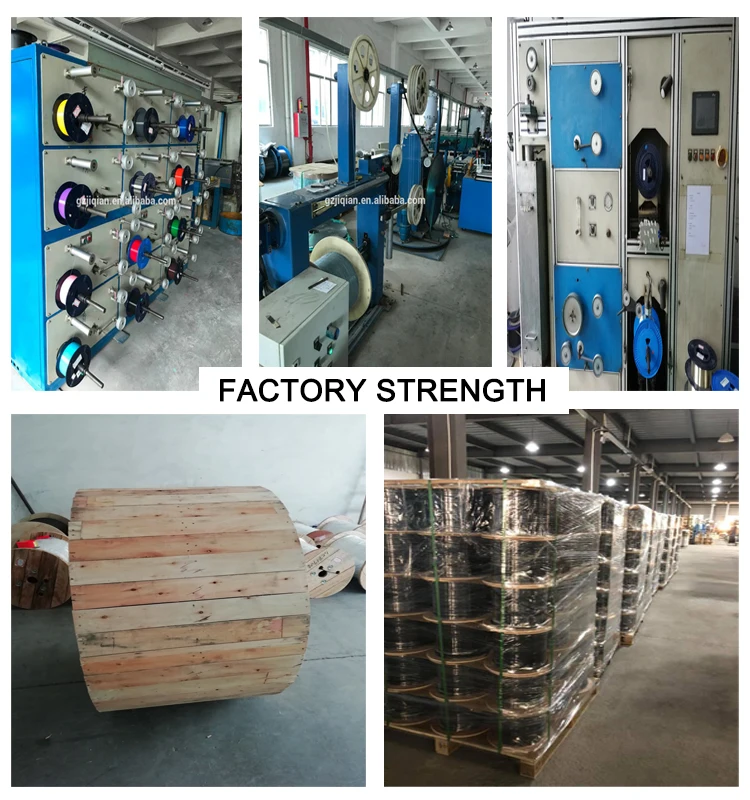

Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province new wai industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.
1,Q:Are you a factory or trade company?
A:We are factory,We can give you a big discount on our ex-factory price
2,Q:Where is your location ? How can I visit there ?
A:Address: NO.5, second Road,minying west, Zengcheng district, Guangzhou city, Guangdong province.We warmly welcome you to visit our factory when you are free.
3.Q:Which brand of fiber do you use?
Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What is your after-sale service?
A:15 Years warranty and professional technical persons to deal with your problems.
1,Q:Are you a factory or trade company?
A:We are factory,We can give you a big discount on our ex-factory price
2,Q:Where is your location ? How can I visit there ?
A:Address: NO.5, second Road,minying west, Zengcheng district, Guangzhou city, Guangdong province.We warmly welcome you to visit our factory when you are free.
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What is your after-sale service?
A:15 Years warranty and professional technical persons to deal with your problems.
6,Q:Do you provide any sample?
A:According to your demand,sample can be sent to you once confirmed.The sample amount can be deducted in next formal orders.
contact me whatsapp/Phone number/wechat:+8618122384859
email:joyce@gzjqofc.com
Facebook:Kate Liu
