ADSS 48 core single / multi mode fiber G652D aerial fiber optic cable 1km price
Product Description:
ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound.
The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Applications:
Widely used in self support aerial/overhead.
Features:
1. Can be installed without shutting off the power.
2. Excellent mechanical performance.
3. Good performance of tensile strength and temperature.
4. Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
and backprops.
5. Long life span time over 30 years.
|
Fiber count |
Reference diameter (mm) |
weight(kg/km) |
Average daily working tension (kN) |
Maximum allowable working tension (kN) |
breaking strength(kN) |
Cross sectional area of tensile element (mm2) |
elasticity modulus (kN/mm2) |
Item operation, storage, transportation, temperature range (℃) |
coefficient of thermal expansion (×10 -6/K) |
|
|
PE
|
AT
|
|||||||||
4-30 |
12.3 |
122 |
133 |
1.5 |
4 |
10 |
4.6 |
7.6 |
-40~+60 |
1.8 |
30-72 |
13.4 |
138 |
151 |
3.0 |
8 |
20 |
10.35 |
9.45 |
-40~+60 |
1.3 |
72-96 |
15 |
169 |
182 |
7.95 |
22 |
53 |
26.4 |
18.0 |
-40~+60 |
0.3 |
96-120 |
18.1 |
238 |
251 |
16.2 |
45 |
108 |
51.0 |
25.1 |
-40~+60 |
-0.5 |
120-144 |
19.2 |
246 |
259 |
18.0 |
50 |
120 |
58.8 |
26.1 |
-40~+60 |
-0.8 |
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province new wai industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable, the company adhering to the "integrity, fast, flexible, efficient and innovative" spirit of enterprise, "strive for perfection, for the customer appreciation and paved the road to success... "Enterprise pursuit, adhere to the" customer satisfaction is the most important yardstick of our achievements "standard. We promise to cooperate with you hand in hand with high quality products, preferential price and first-class service to create brilliant career.
Exhibition.

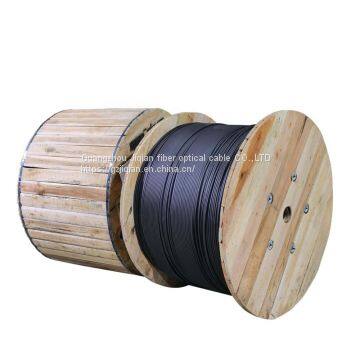

1.Wooden roll, 1000m/roll,2000m/roll,3000m/roll,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battens.
1,Q:Are you a factory or trade company?
A:We are factory,We can give you a big discount on our ex-factory price
2,Q:Where is your location ? How can I visit there ?
A:Address: NO.5, second Road,minying west, Zengcheng district, Guangzhou city, Guangdong province.We warmly welcome you to visit our factory when you are free.
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What is your after-sale service?
A:15 Years warranty and professional technical persons to deal with your problems.
6,Q:Do you provide any sample?
A:According to your demand,sample can be sent to you once confirmed.The sample amount can be deducted in next formal orders.
