GYTC8S Fiber Optic Cable for Network Solution
- shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HYG | |
| Model Number | HYG-GYTC-24-9/125/fiber optic cable | Type | Coaxial | |
1 km or 2 km /rell,for fiber optic cable
Product Description
Specifications
fiber optic cable1.Sheath cable UL OFNR, OFNP requirements
2.Meet YD/T 1258.4-2005
3.2-288 core
4.CE and ROhs/fiber optic c
fiber optic cable for network solution
Description

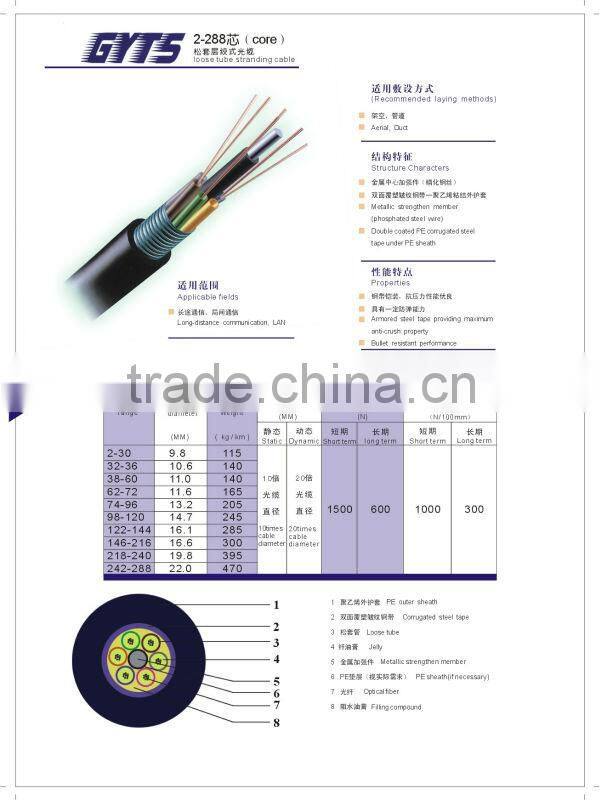

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
fiber optic cable/ 96 core fiber optic cable/ 48 core optical fiber cable
Characteristics
1.Good mechanical and temperature performance
2· High strength loose tube that is hydrolysis resistant
3· Special tube filling compound ensure a critical protection of fiber
4· Crush resistance and flexibility
5· PSP enhancing moisture-proof
6· Two parallel steel wires ensure tensile strength
7· Small diameter, light weight and friendly installation
8· Long delivery length
9.2-288 core fiber optic cable/ 96 core fiber optic cable/ 48 core optical fiber cable
Standards
GYXTW cable complies with Standard YD/T 769-2003.
fiber optic cable/ 96 core fiber optic cable/ 48 core optical fiber cable
Optical Characteristics
| ||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Parameters | ||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||
Storage/Operating Temperature : -40°C to + 70°C | ||||||||||||||||||||||||||||||||||||||||||||||||||
fiber optic cable/ 96 core fiber optic cable/ 48 core optical fiber cable
