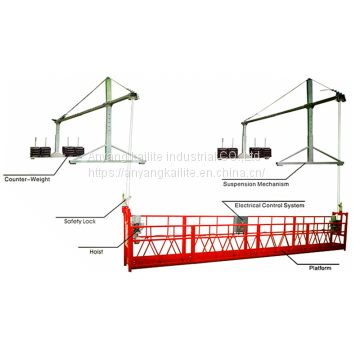

Suspended platform consists if suspension mechanism,hoist,safety lock,electric control box and platform.They have resonable structure and they are easy to operate.According to the actual needs,they are arbitrarily assembled and disassembled.Suspended platfrom applies to exterior wall construction,decoration,cleaning and maintance of high-rise buildings.
Model: LTD80A
Lifting speed: 9.3m/min
Motor power: 1.8KW
Dianmeter of wire rope:9.1mm
Self weight:52kg
Dimension:580mmx300mmx252mm
According to client's requirment,it can be configured with LTD8 and LTD6.3 series hoist
Type:LS30
Allowable impulsive force: 30KN
Diameter of wire rope: Φ8.3mm
Wire rope locking disstance:≤200mm
Lock rope angle:platform slope angle 3°-8°
Structure: 4*31SW+FC-8.30
Specification: 8.3mm
Surface condition:galvanization
Oiling method:dry and no oil
Direction of twist:ZS
Tensile strength:1960n/mm²
Min breaking force:≥51.8kn
Measured breaking force:53.8kn
Name:wire rope
Type:Φ18
Standard material: high quality high tenacity wire
Name:guided type fall arrester
Type:Φ16-20
Standard material:iron
* Inquiry and consulting support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
