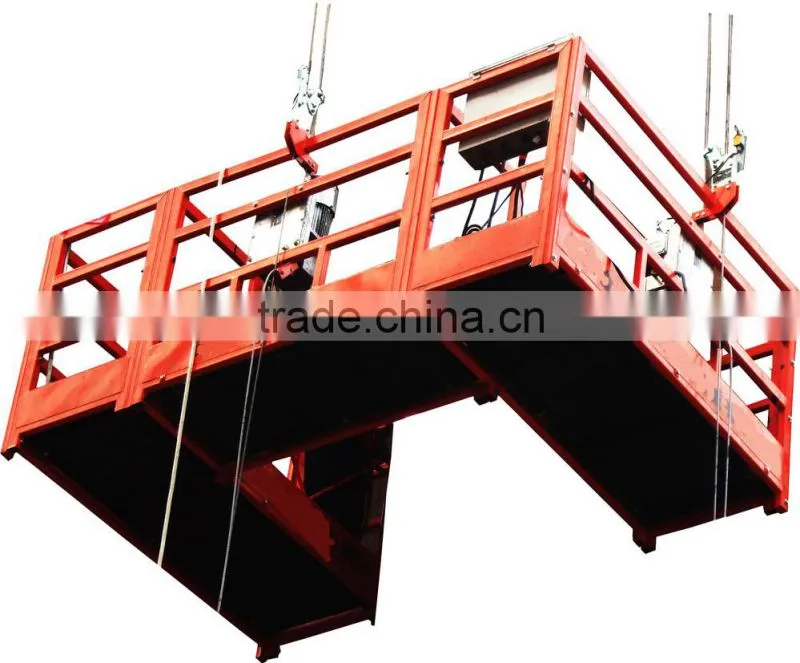

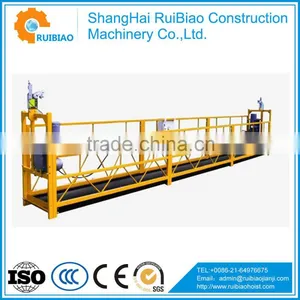

Suspended Platform/ Suspended Scaffolding

FOB Price

US$ 1,600 - 2,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	RUIBIAO
Model Number	ZLP630/ZLP800

Product Description

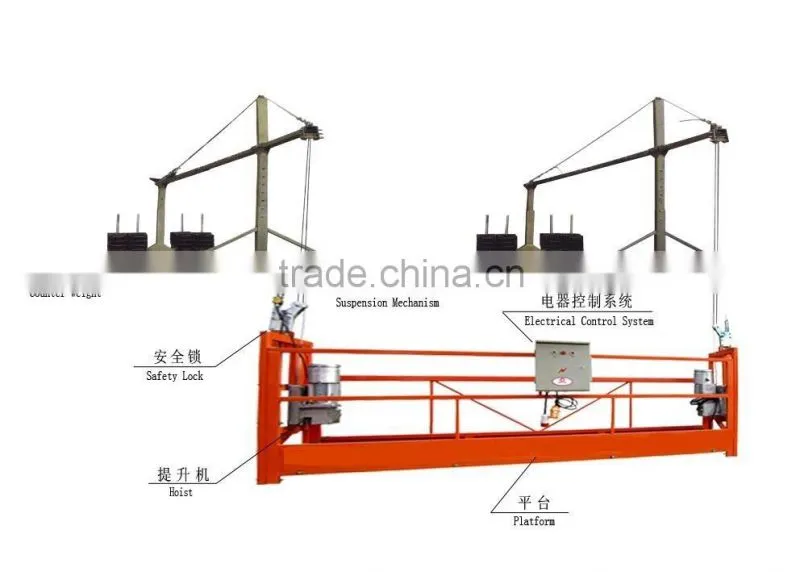

ZLP series suspended platform are mainly used for the exterior construction, decoration and fitting-out works of multi-storey buildings such as the following: high rise elevator, cableway installation, granary, colliery, security inspection, tower hoist driver’s lift, large tank, chimney, boiler maintenance, dam and bridge maintenance. The length can be up to 30 meters. Suspended platform is also applicable to exterior wall decoration, plastering,building insulation, coating, marble tile installation, glass curtain wall installation and cleaning.

The suspended platform can be instead of scaffoldings, which will greatly reduce the cost, and with higher efficiency; what’s more, operation is simple and flexible, easy to transfer, easy to use, safe and reliable etc.ZLP series suspended platform conforms to GB19155-2003 standard.

Suspended Platform/working platform (Aluminum alloy); Suspended Platform; rope suspended platform

1. The length of platform can be adjusted within 1M-10M.

2. The working height can be adjusted with your need.

3. The Voltage can be adjusted with your need.

4. The hoist position: 1) inside cage; 2) outside cage

5. Three platform's materials: 1) Aluminum alloy; 2) Steel; 3) Galvanized

Technical parameters

Name		Technical parameter
Model		ZLP800	ZLP630
Rated load		800Kg	630Kg
Lifting speed		8-10m/min	8-10m/min
Platform Dimension L×W×H(mm)		7500×720×1300	6000×720×1300
Lifting Height		100 m	100 m
Cable		100 m	100 m
Steel rope diameter		9.1mm	8.3mm
Hoist	Power	*1.8KW2**	*1.5KW2**
Hoist	Voltage	380V/50HZ	380V/50HZ
Safety lock	Permission force of impact	30KN	30KN
Safety lock	Locking Cable Angle	3°~8°	3°~8°
Suspension mechanism	Front beam overhang	1.3~.1.5m	1.3~.1.5m
Suspension mechanism	Support adjustable height	1.44~2.14m	1.44~2.14m
Counterweight		1000KG	1000KG
20’ft container		8 sets	9 sets

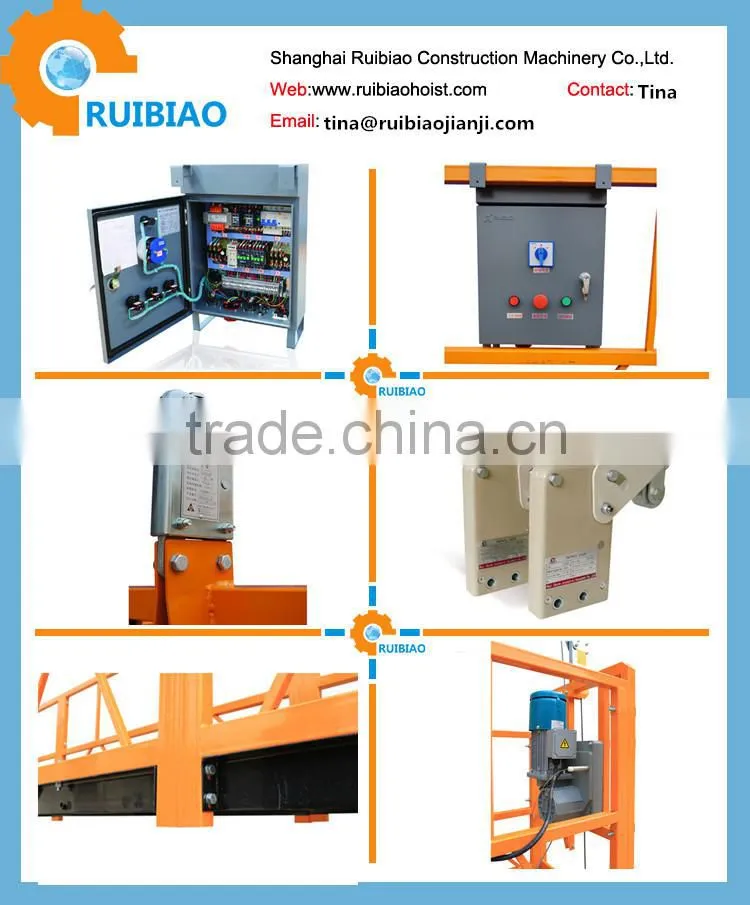

Detailed Images

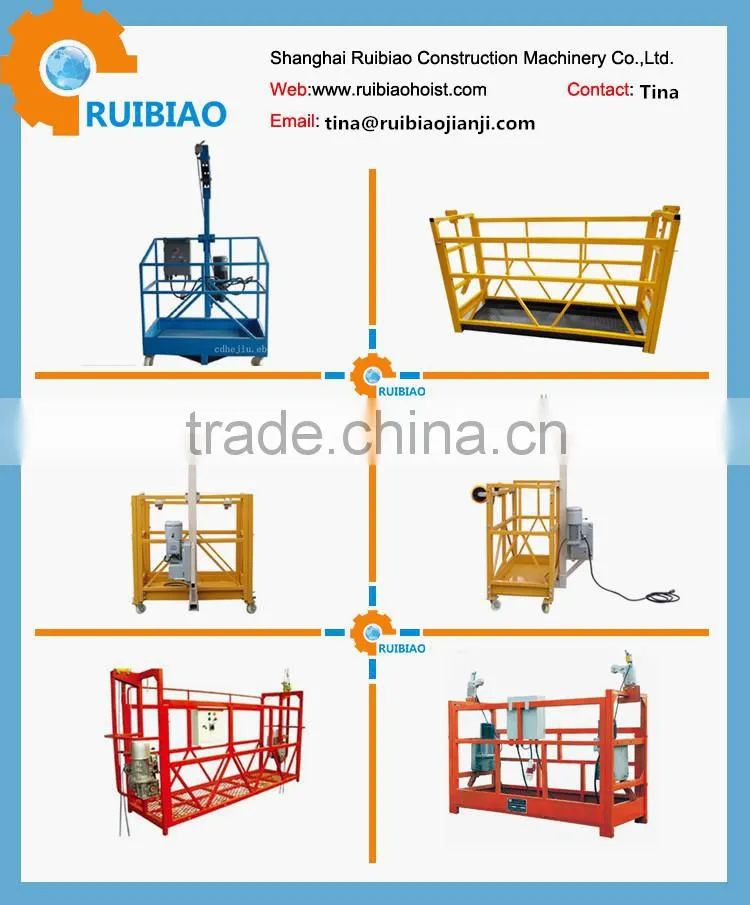

Product Overviews

Workshop and Packing
