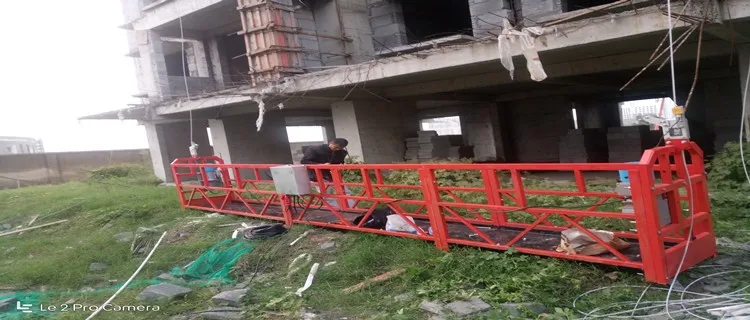

ZLP630 Adjustable Suspended Working Platform

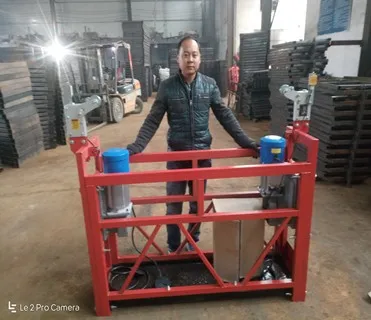

Suspended platform consists if suspension mechanism,hoist,safety lock,electric control box and platform.They have resonable structure and they are easy to operate.According to the actual needs,they are arbitrarily assembled and disassembled.Suspended platfrom applies to exterior wall construction,decoration,cleaning and maintance of high-rise buildings.

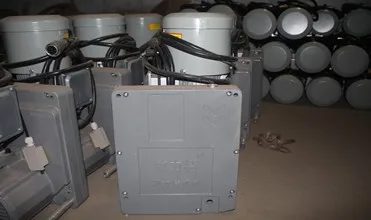

Model: LTD80A

Lifting speed: 9.3m/min

Motor power: 1.8KW

Dianmeter of wire rope:9.1mm

Self weight:52kg

Dimension:580mmx300mmx252mm

According to client's requirment,it can be configured with LTD8 and LTD6.3 series hoist

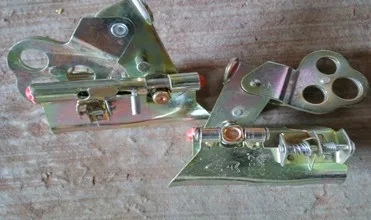

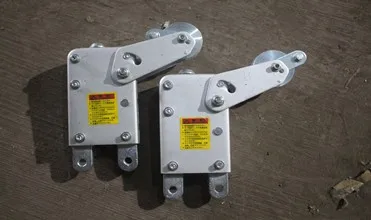

Type:LS30
Allowable impulsive force: 30KN
Diameter of wire rope: Φ8.3mm

Wire rope locking disstance:≤200mm

Lock rope angle:platform slope angle 3°-8°

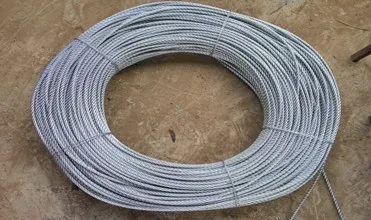

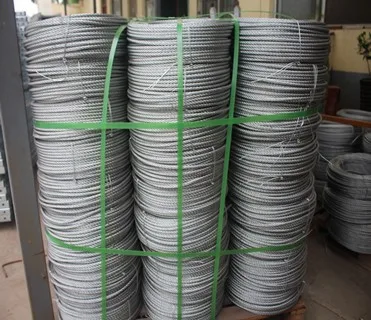

Structure: 4*31SW+FC-8.30
Specification: 8.3mm
Surface condition:galvanization
Oiling method:dry and no oil

Direction of twist:ZS

Tensile strength:1960n/mm²

Min breaking force:≥51.8kn

Measured breaking force:53.8kn

Name:wire rope
Type:Φ18
Standard material: high quality high tenacity wire

Name:guided type fall arrester

Type:Φ16-20

Standard material:iron
