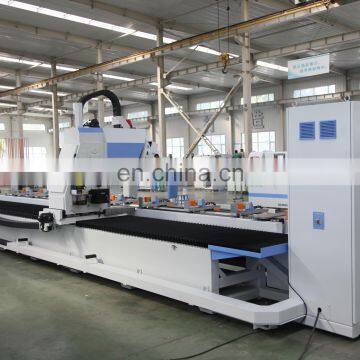

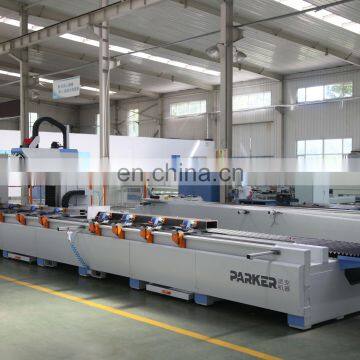

ALUMIMIUM MACHINING CENTER
Features:
1.The machine is suitable for processing installation holes, water slot, shaped holes, and end milling and making screw on curtain walls and aluminum windows and doors.
2. It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°
3.It adopts high-quality computer control system which is used in industry area specially, with good user interface, graphical programming and processing tracking interface, truly realize what you see and what you get.
4. It adopts high-quality servo motor, ball screw, linear guide pair and bearings and so on to ensure the machine runs with high precision.
5. Equipped Six cutters positions, the cutter can change quickly and automatically .
6. The semi-closed guard improved security greatly.
7. Clamping device position can be optimized and put to right position automatically and freely.
Technique Parameter:
X- axis:7600mm
Y- axis:960mm
Z- axis:610mm
X- axis speed:0~90m/min
Y- axis speed:0~80m/min
Z- axis speed:0~75m/min
Main shaft rotary range: - 90º ~ 0º ~ + 90º
Tool magazine:6 different cutters, change cutter automatically
Max cutter length: 165mm
Air Pressure:0.5-0.8Mpa
Voltage:380V/50Hz
Total power:10kw
Number of clamping device: 8
Lubrication and cooling : Lubricating automatically, spray cooling
Processing size range(WXHXL):550×300×7300mm
Overall dimension：10100×2300×2600mm
.
Machine Parts
Name: Spindle
Brand: HSD
Original: Italy
Machine parts
Name: Spindle details
Brand: HSD
Original: Italy
5.5KW or 7.5KW, or more options that buyer need
Machine Parts
Name: Cutter
Easily to change
Soft ware
Name: soft ware for operating
Brand: Power Automatation
Original: Germany
Widely open, easy to learn
Pre-Sales Service
* Inquiry and consulting support.
* Answering customer qustions in time
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
