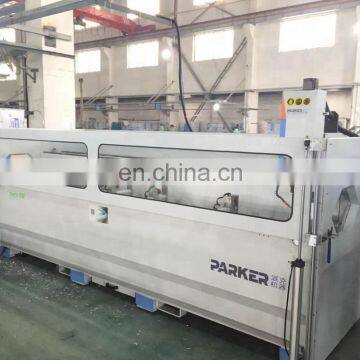

Aluminum CNC 3 axis machining center for aluminum drilling milling with rotary working bench
- 1000 per Month
- T/T Credit Card
- A9 CNC Aluminum Window Door Making Machine Automatic Cutting Profiles
- Aluminum window crimping machine high efficiency top technology
- End Milling Machine Aluminum Window Making Machine
- LJJZ4-CNC-1800*3000 Four corner CNC aluminium profiles corner crimping equipment
- aluminum profile cutting saw for aluminum window making machine PVC window making machine
- aluminum door window frame single head corner crimping machine
Product Details
Brand Name: | PARKER | Place of Origin: | Shandong, China | Type: | Horizontal |
Certification: | CE certificaiton | After-sales Service Provided: | Overseas service center available | Warranty: | lifetime |
Weight: | 3000kg | Dimension(L*W*H): | 4525*1630*1900mm | Voltage: | 380V/50Hz |
Condition: | New | Power(W): | 9KW |
Product Description
high efficient aluminum window door making machine/ cnc drilling & milling machine
Model: DMCC3H
Features:
1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.

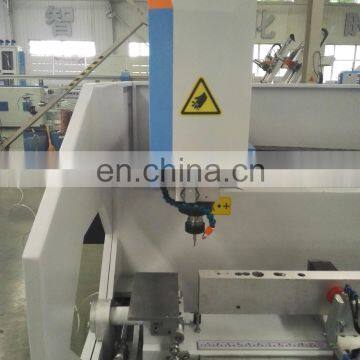

3. It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
4.It adopts vegetable oil micro crystal line cooling system to improve the tool life without poison and pollution.
5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.
6.It adopts PA control system from Italy, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
Parameter:
X axis Stroke | 3600mm |
Y axis Stroke | 300mm |
Z axis Stroke | 200mm |
X axis Speed | 0~140m/min |
Y axis Speed | 0~75m/min |
Z axis Speed | 0~75m/min |
Main spindle speed and Power | 18000rpm/9kw |
Work table position | -90°,0°,+90° |

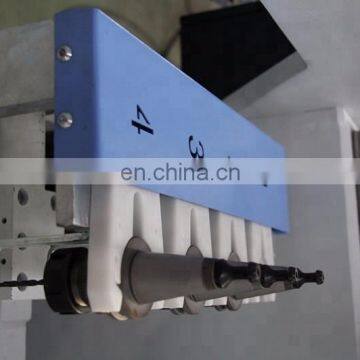

Cutter size | 10mm, 8mm, 5mm,4mm,3mm |
Air Pressure | 0.5~0.8MPa |
Voltage | 380V/50Hz ( can change as requirements) |
Cutter cooling | Auto spraying and cooling |
Processing character | Can process three sides of profile per time loading profile |
Dimension:(L×W×H) | 4525×1630×1900mm |
Other Aluminium Window Door Machines:

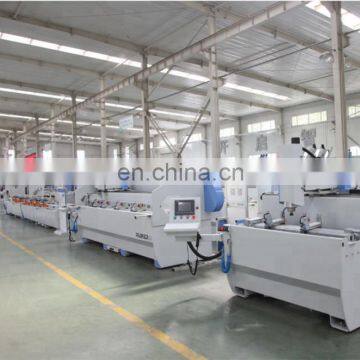

Factory:
Samples:
Exhibitions:
Factories of Customers:
Customers Visit:
Parker Service Team:
Packing & Loading:
Contact Information:
JINAN PARKER MACHINERY Co.,LTD
Website: ;
Contact: Linda
Cell: 0086-182-5416-1395
Skype: lindaredouble
Email: linda
