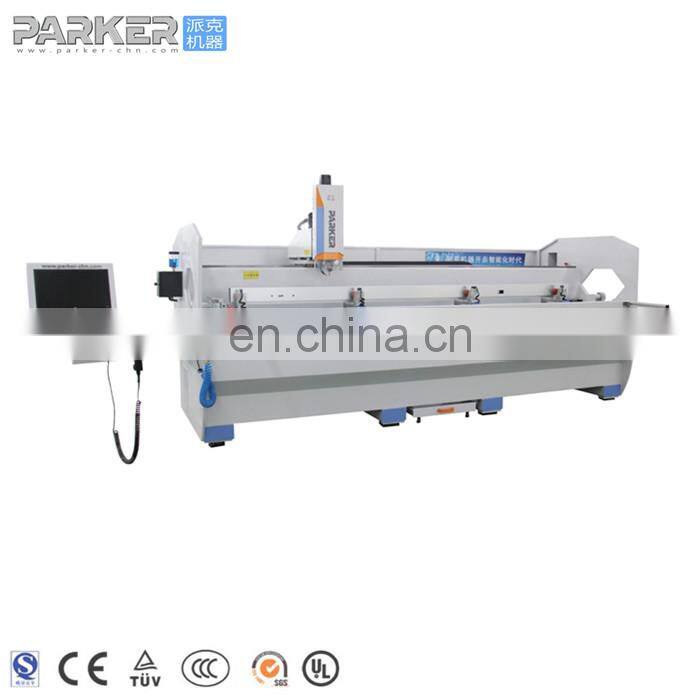

Aluminum Profile CNC Drilling Machine With 4 Tools Magazine With CE

Aluminum Profile CNC Drilling Machine With 4 Tools Magazine with CE

Model:DMCC3H

Equipment features:

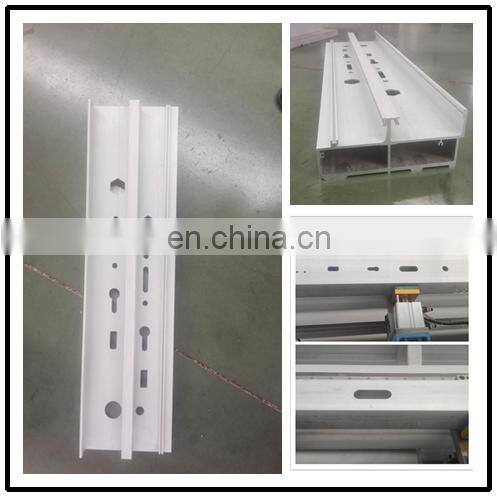

1. The machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.

2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.

3. It adopts Italian HSD high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.

4.It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.

5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.

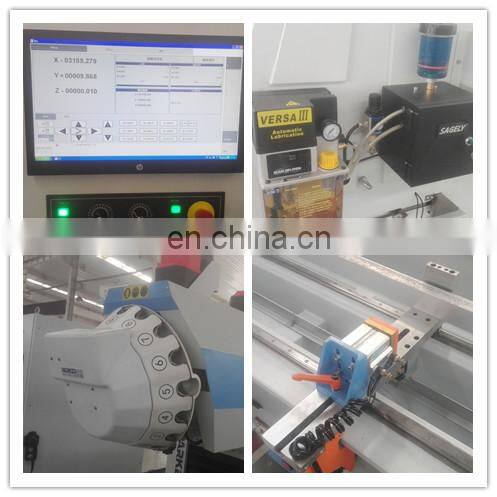

6.It adopts PA control system from Italy, intelligent CNC control system and straightforwardhuman-computer interface make the operation much more convenient and efficient.

Parameter:
 X axis Stroke:3200mm
Y axis Stroke:300mm
Z axis Stroke:200mm
X axis Speed:0~140m/min
Y axis Speed:0~75m/min
Z axis Speed:0~75m/min
 Main spindle speed and Power:18000rpm/3kw
 Work table position:-90°,0°,+90°

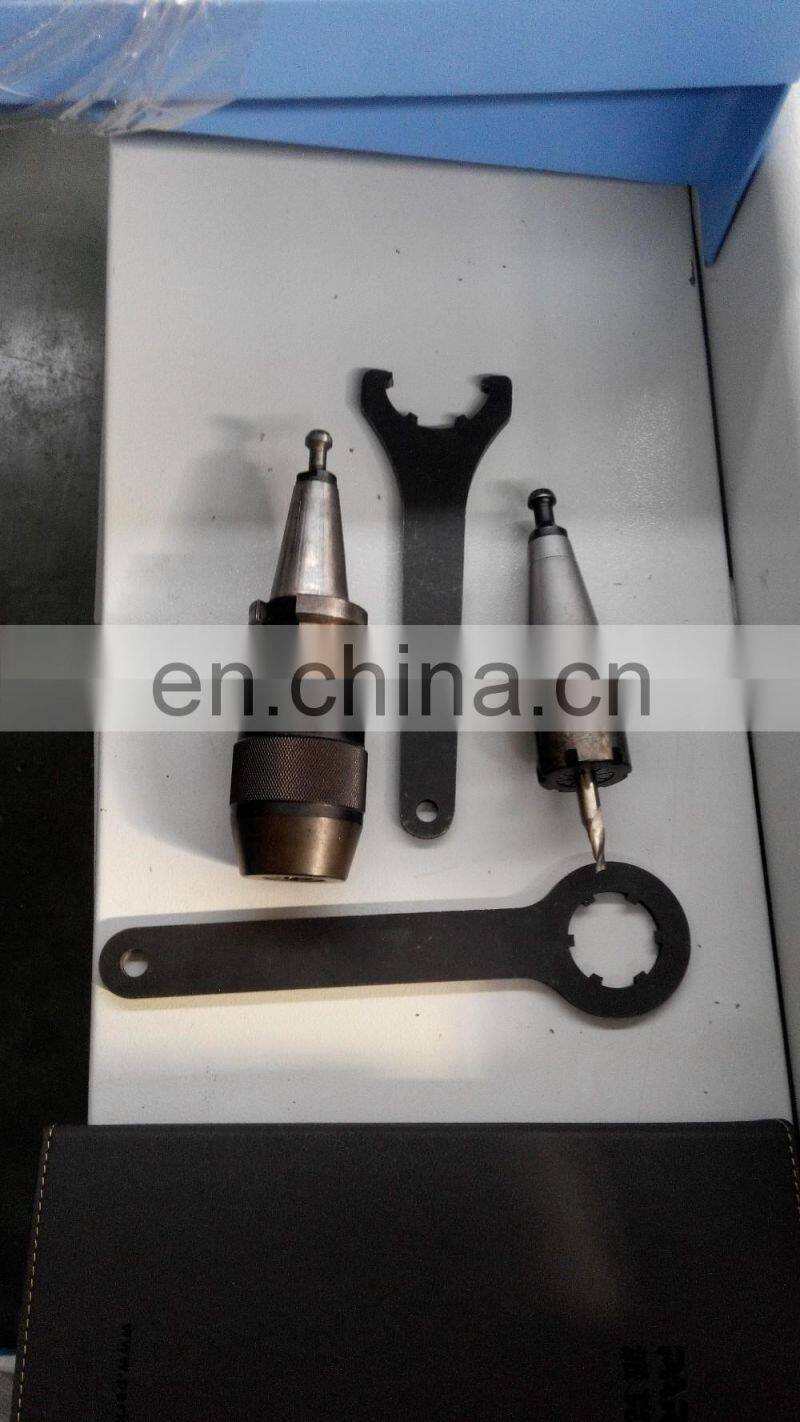

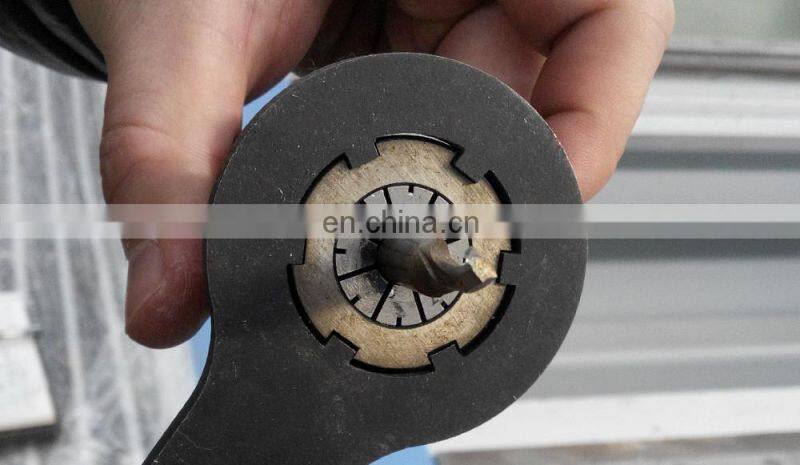

 Cutter size: ER25-DIAMETER 8
 Air Pressure:0.5~0.8MPa

 Voltage:380V/50Hz
 Power:6kw
 Cutter cooling:Auto spraying and cooling
 Processing dimension:(W×H×L):160×160×3200mm,length can adjust to 6000mm
 Processing character:Can process three sides of profile per time loading profile

Dimension:(L×W×H):4525X1630X1900mm

 Weight : 2000KG
