aluminum window door profiles any angle cnc cutting saw machine from Parker
If the above product is not your cup of tea?
Never mind,please click here,leave product name you need
You will find more solutions.
Introduction of Aluminum window and door machine

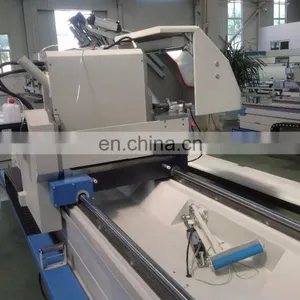

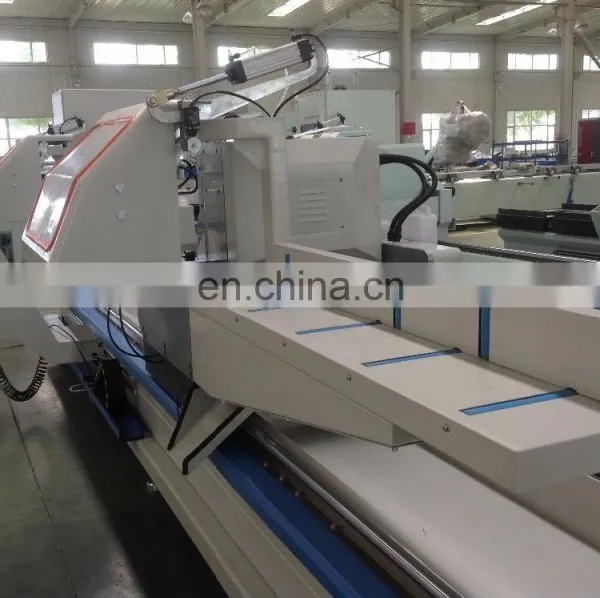

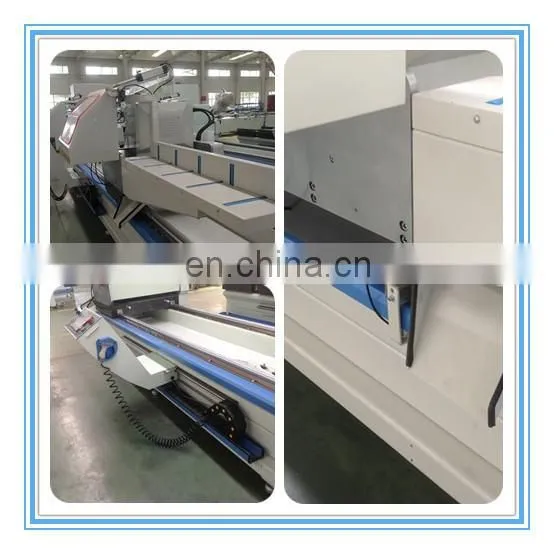

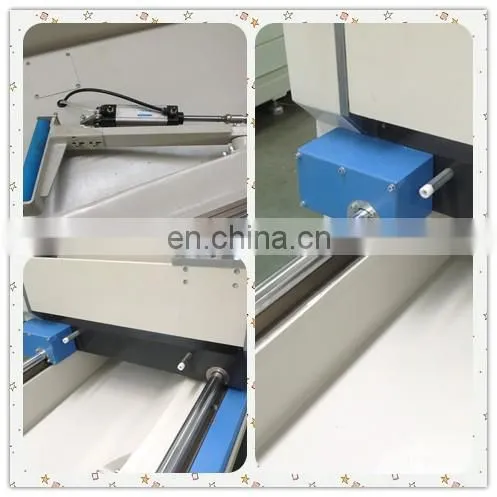

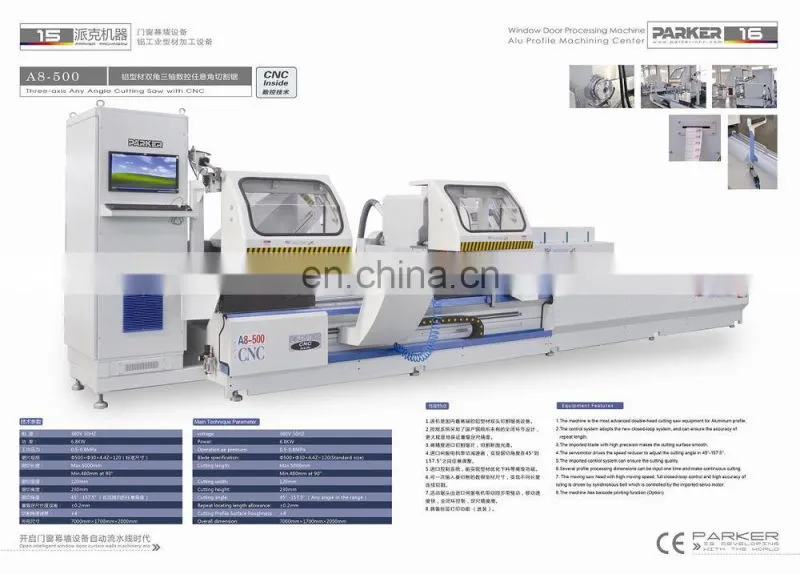

A8-500 3 axis CNC aluminum profile cutting saw is used for cutting aluminum alloy profiles and wall profiles. As a CNC controlled equipment, it can realize cutting profiles in any or arbitrary angle. Parker is a professional manufacturer and supplier of CNC cutting saws in China. In addition to this aluminum window and door machinery, we also provide aluminum profile corner crimping machine, end milling machine, aluminum profile punching machine, aluminum profile copy router, ACP processing machine, etc. The three axis aluminum profile cutting saw (3 axis CNC cutting saw for aluminum profile) has won widespread praise and recognition by customers.
Features of Aluminum window and door machine
1. A8-500 aluminum profile cutting saw is the most advanced double-head cutting saw.

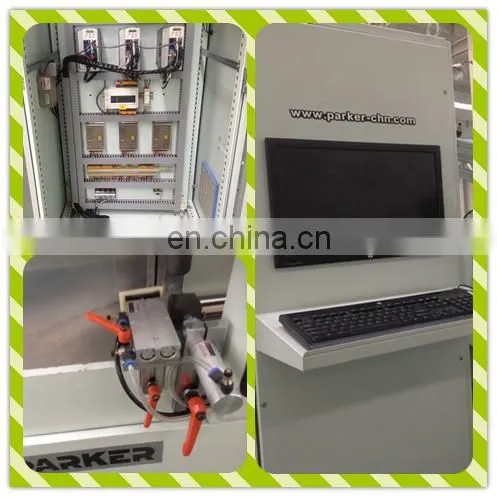

2. The PLC, servo motor, servo driver and touch screen use SCHNEIDER brand products imported from France.
3. The control system of this CNC cutting saw adopts the new closed-loop system. This ensures the accuracy of repeat length.
4. Three axis aluminum profile cutting saw uses imported SCHNEIDER electric spare parts.
5. We adopt Germany WEMARO blades with high precision, making the cutting surface smooth.
6. This CNC cutting saw can automatically feed the profiles. We can input the cutting data one time. It can also cut profiles with different sizes automatically and continuously.

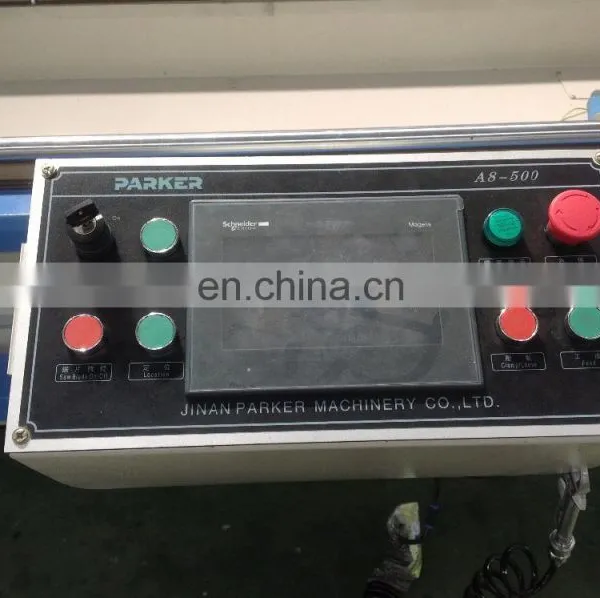

7. Touch screen and computer make the aluminum profile cutting saw very easy to operate.

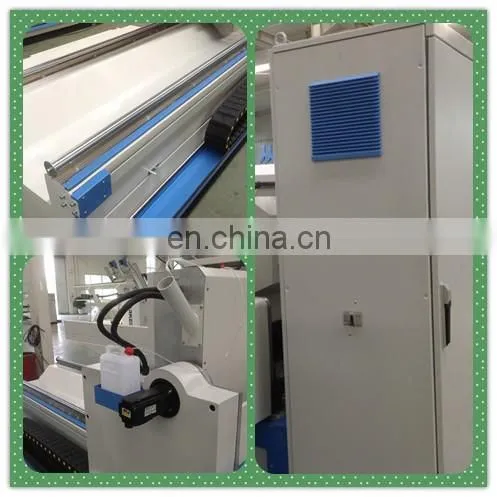

8. The servomotor drives the speed reducer to adjust the cutting angle from 45° to 157.5°. The imported service motor with high moving speed and high precision should drive the sawing head.
9. The imported control system of 3 axis CNC cutting saw can ensure the cutting quality.
10. A8-500 aluminum profile cutting saw also has label printing function.
Technical Parameters of Aluminum window and door machine
| Voltage | 380V 50 Hz |
| Power | 6.8 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Blade Specification | Φ500 × Φ30 × 4.4 Z = 120 (Standard Size) |
| Cutter Moving Speed | 0 to 2 m/min |
| Cutting Length of CNC Cutting Saw | Max. 5000mm Min. 480 at 90° Max. 5000mm Min. (Double Height of Profile) at 45° |
| Cutting Width | 120 mm |
| Cutting Height | 230 mm |
| Cutting Angle | 45° to 157.5° |
| Repeat Locating Length Error | ± 0.2 mm |
| Surface Plainness | ± 4´ |
| Overall Dimension | 6800 mm × 1500 mm × 2040 mm |
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao. You are warmly welcomed to visit us!
3. Q: How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
5. Q: If OEM available?
Answer: Yes, as we usually do.
6. Q: What are your company normal payment Terms?
Answer: We accept T/T (30% T/T prepaid before production, 70% T/T prepaid before shipment)
