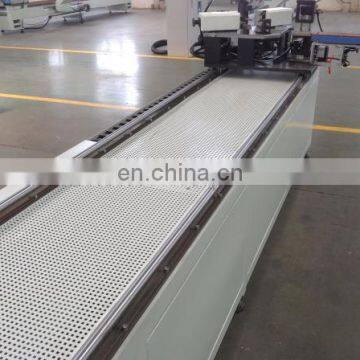

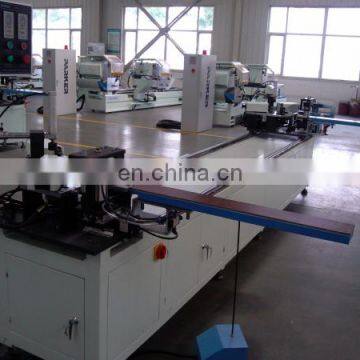

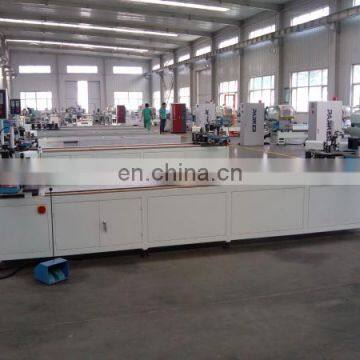

Automatic Feeding Double Corner Crimping Machine

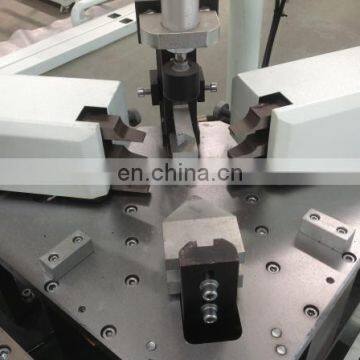

LJJZ2A-100×3500 automatic feeding double corner crimping machine can feed automatically and process aluminum doors and windows. It is used for riveting and crimping corners in double heads of frames or sashes synchronously. Owing to its plunger type hydraulic system, this automatic crimping machine is highly praised for efficient rivet punching and firm corner connecting. Operators can adjust the hold-down and positioning device in the vertical direction, so as to process profiles with diverse specifications. The double corner crimping machine adopts unique double foot valve design that makes pre-compaction more effective, facilitates cutting and corner crimping, and reduces the rejection rate. This automatic crimping machine can be also equipped with an auxiliary compression mechanism to help to feed materials.
Feature
1. Due to convenient locating and clamping device setting, the automatic feeding double corner crimping machine has a wide profile processing range.
2. Two-corner connecting at one time is available with high production efficiency.
3. Hydraulic system of this automatic crimping machine provides large punching and riveting force.
4. Super precision linear kinematic pair contributes to high processing accuracy.
5. Parker double corner crimping machines can feed automatically and operate easily.
6. The double-foot brakes make it operate freely and the defect rate lowered. Therefore, the efficiency and the precision of this automatic crimping machine are increased greatly.
Parameter
Type Automatic Feeding Double Corner Crimping Machine
Joint Seam Error ≤ 0.15 mm
Power Supply 380V 50 Hz (Three Phase, Four Wire)
Hydraulic System Pressure 15 Mpa
Air Pressure of Automatic Crimping Machine 0.5 to 0.8 Mpa
Air Consumption 60 L/min
Oil Tank Capacity 40 L
Max. Distance between the Two Heads Max. 3000 mm (3500 mm) Min. 450 mm
Min. Dimension of the Profile 450 mm
Width of Profile 100 mm
Overall Dimension 4300 mm × 1200 mm × 1350 mm
Weight of Automatic Crimping Machine 1200 kg
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

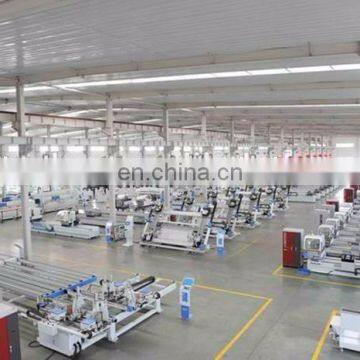

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
